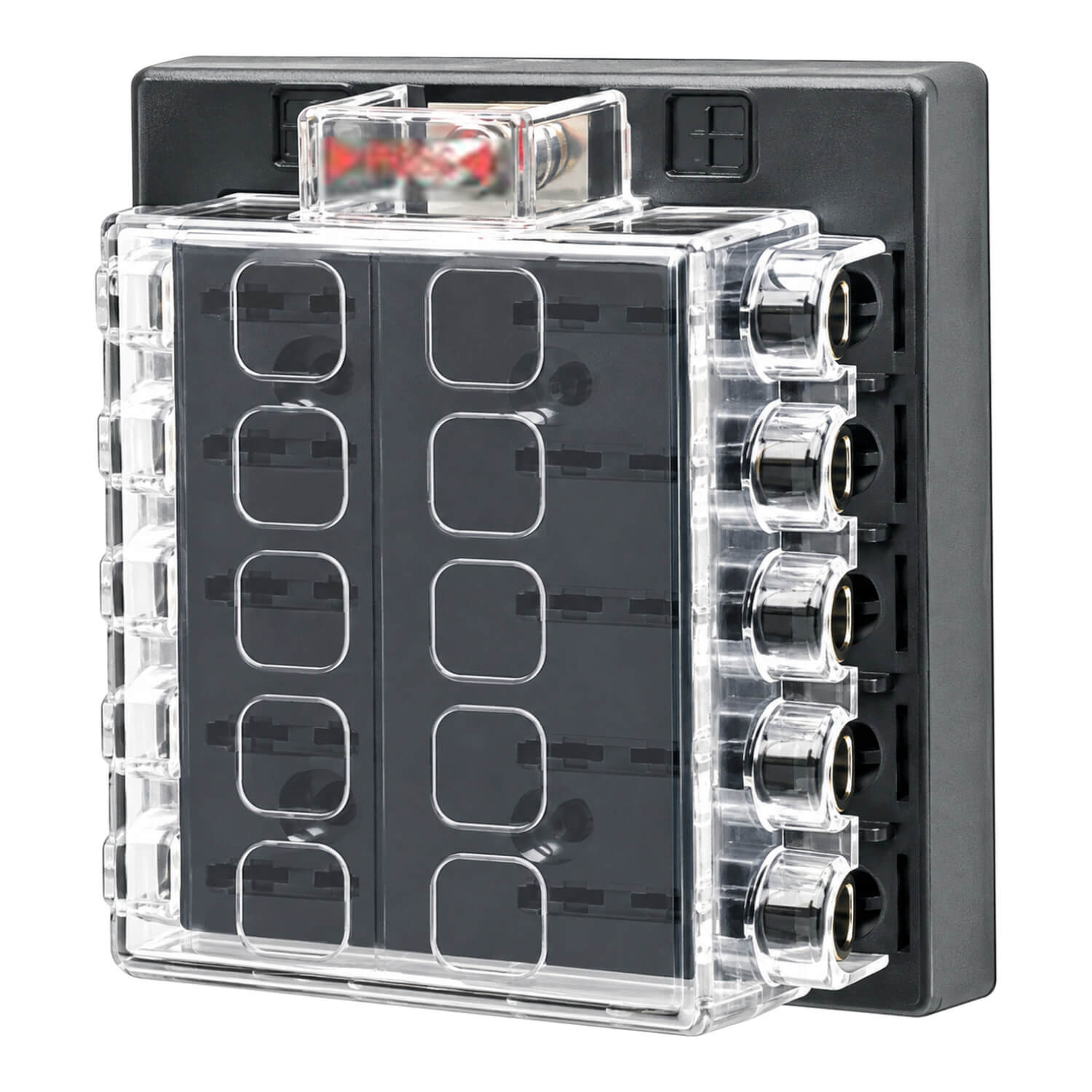

10 Way Fuse Box with Cover
Organise 10 protected circuits with this ATS blade fuse box, part 220183. A single power-in terminal feeds the box, while a transparent cover keeps the fuse positions visible.
The 10-way layout measures 100 x 93 x 40mm. Each circuit is rated at 25A, with a separate 150A maximum for the complete block. Plan the combined load as well as the individual branch loads when choosing the box.
Circuit-identification stickers are included for commonly fused accessories. Label the positions to match the actual wiring and check that the fuses and wiring suit each connected circuit.
Choosing and using this product
For this version, size (mm): 100 x 93 x 40. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Product details
- Product: 10 Way Fuse Box with Cover
- Product code: 220183
- Standard ATS blade fuse box with transparent cover, single power-in terminal and circuit-identification stickers
- Rated 25A per circuit and 150A maximum per block
- Size (mm): 100 x 93 x 40
