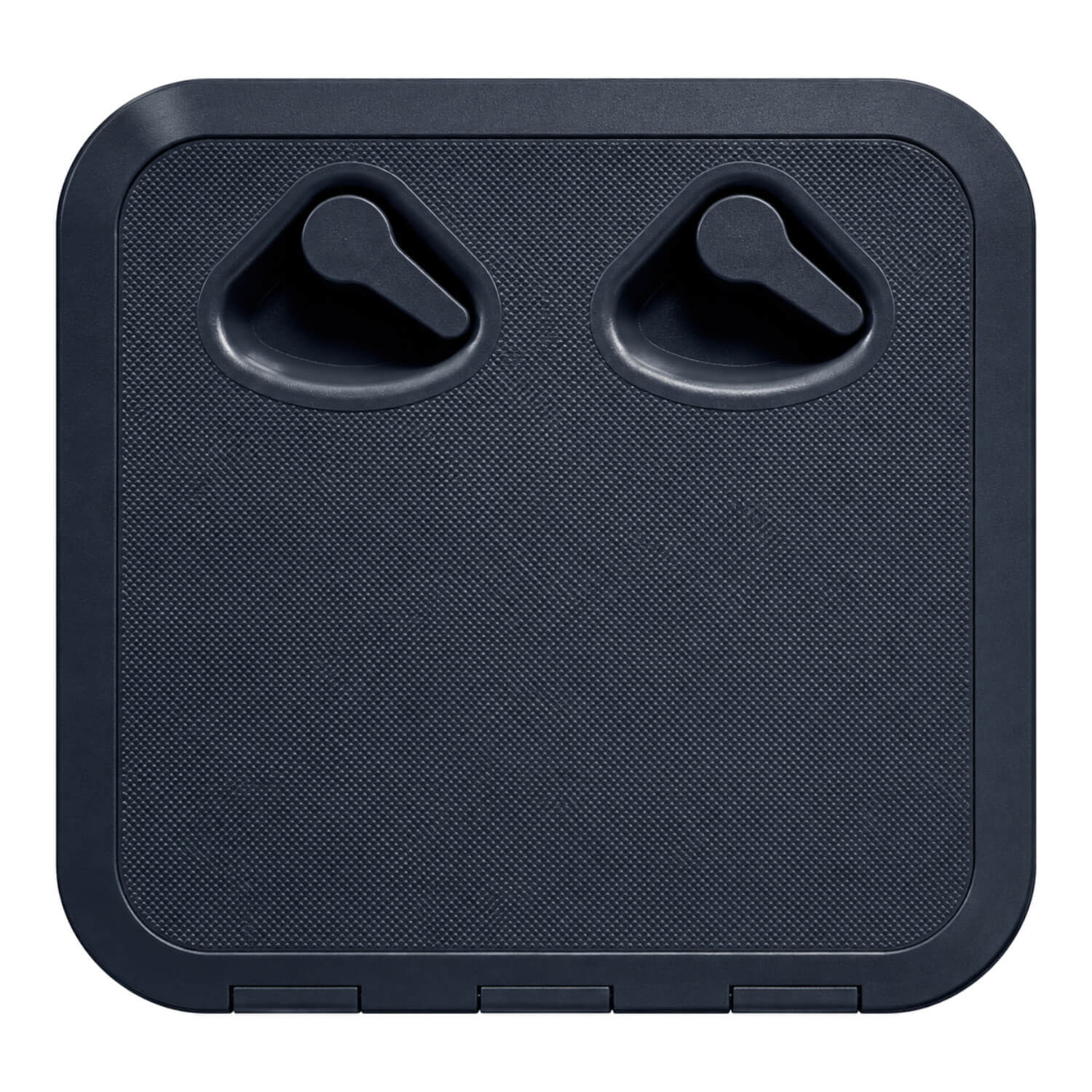

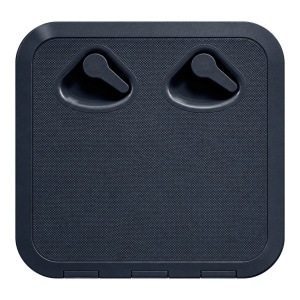

Nuova Rade Deluxe Storage Hatch Size B Black
Finish an access opening with the black Nuova Rade Deluxe Size B storage hatch. Made from UV-inhibited ASA material, this Italian hatch combines reinforced construction with a low-profile lid and recessed operating handles.
Size B uses a square footprint and two recessed handles, with equal cut-out measurements in both directions.
The lid has a non-skid surface and covers the mounting screw holes when closed, giving the fitted hatch a clean, flush appearance. A solid hinge pin supports a full 180-degree door opening, so plan enough surrounding space for the lid to move clear of the access area.
Size B may be mounted vertically or floor-mounted where it may be walked on. This floor-mounting provision applies to the two smaller sizes in the range. The neoprene seal is splashproof in vertical installations, but the hatch is not fully watertight when horizontal.
The 380 x 380mm outside dimensions and 305 x 305mm cut-out size are separate fitting references. Measure the opening and the surrounding panel area before selecting this variant. The black finish provides the dark-coloured option within this size family.
Pre-drilled countersunk fastening holes are 5mm, also listed as 3/16 inch. Locks can be retrofitted if required; select a suitable lock separately rather than assuming a lock is included. Check the installed access, lid travel and fixing layout before completing the fitting, especially when replacing a hatch from another range.
Product details
- Italian deluxe storage hatch made from strong UV-inhibited ASA material.
- Reinforced low-profile non-skid lid covers mounting screws for a flush finish.
- Door opens 180 degrees with a solid hinge pin.
- Recessed handles and neoprene lid seal.
- Splashproof when installed vertically, not fully watertight horizontally.
- Size B can also be floor-mounted where it may be walked on.
- Locks can be retrofitted.
- Pre-drilled 5mm (3/16 inch) countersunk fastening holes.
- Colour: Black.
- Outside dimensions: 380 x 380mm.
- Cut-out size: 305 x 305mm.
- Product code: 407112
