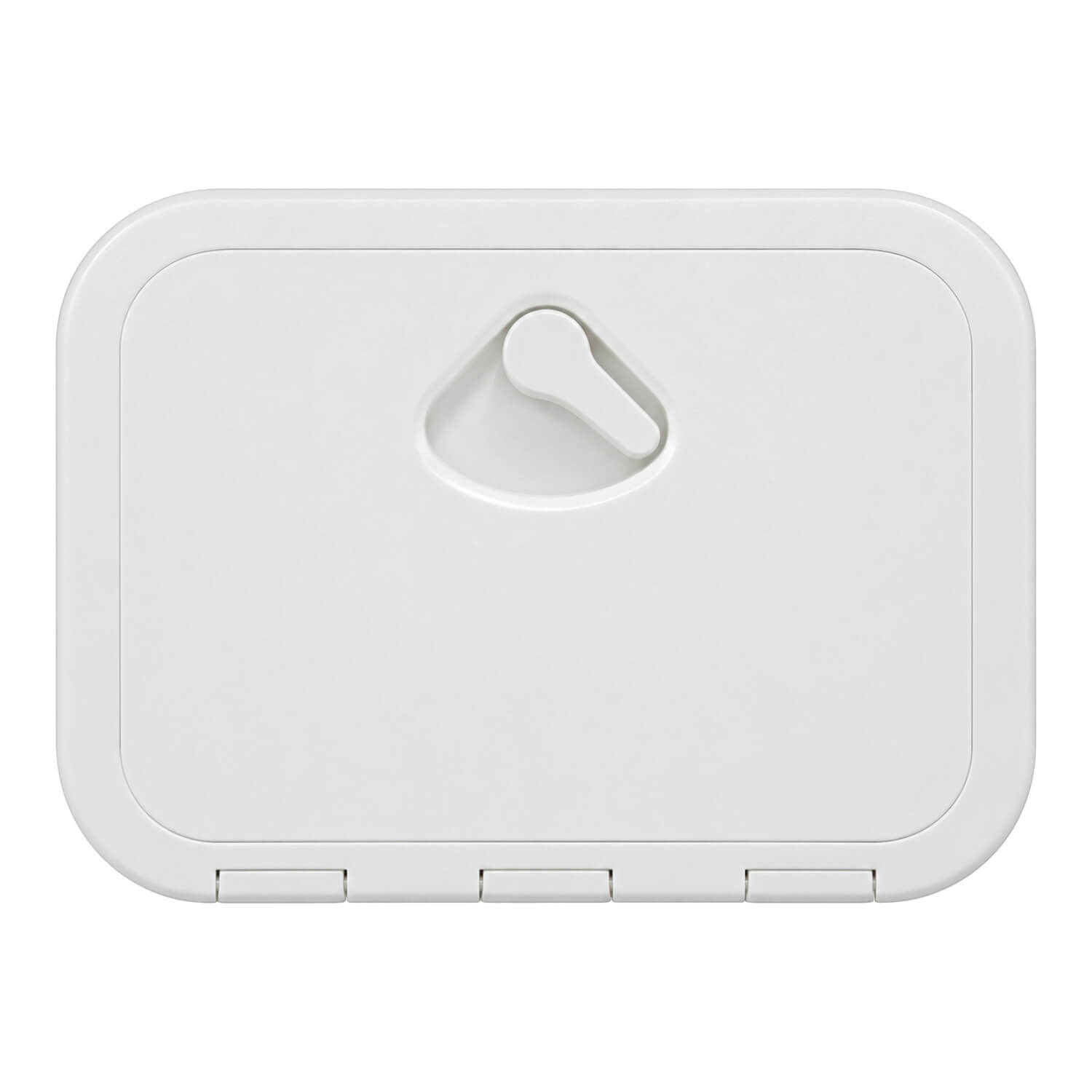

Nuova Rade Deluxe Storage Hatch Size A White
Finish an access opening with the white Nuova Rade Deluxe Size A storage hatch. Made from UV-inhibited ASA material, this Italian hatch combines reinforced construction with a low-profile lid and recessed operating handles.
The compact rectangular Size A format uses one recessed handle and suits a smaller access layout.
The lid has a non-skid surface and covers the mounting screw holes when closed, giving the fitted hatch a clean, flush appearance. A solid hinge pin supports a full 180-degree door opening, so plan enough surrounding space for the lid to move clear of the access area.
Size A may be mounted vertically or floor-mounted where it may be walked on. This floor-mounting provision applies to the two smaller sizes in the range. The neoprene seal is splashproof in vertical installations, but the hatch is not fully watertight when horizontal.
The 375 x 275mm outside dimensions and 298 x 198mm cut-out size are separate fitting references. Measure the opening and the surrounding panel area before selecting this variant. The white finish provides a light-coloured option for matching existing trim.
Pre-drilled countersunk fastening holes are 5mm, also listed as 3/16 inch. Locks can be retrofitted if required; select a suitable lock separately rather than assuming a lock is included. Check the installed access, lid travel and fixing layout before completing the fitting, especially when replacing a hatch from another range.
Product details
- Italian deluxe storage hatch made from strong UV-inhibited ASA material.
- Reinforced low-profile non-skid lid covers mounting screws for a flush finish.
- Door opens 180 degrees with a solid hinge pin.
- Recessed handles and neoprene lid seal.
- Splashproof when installed vertically, not fully watertight horizontally.
- Size A can also be floor-mounted where it may be walked on.
- Locks can be retrofitted.
- Pre-drilled 5mm (3/16 inch) countersunk fastening holes.
- Colour: White.
- Outside dimensions: 375 x 275mm.
- Cut-out size: 298 x 198mm.
- Product code: 407102
