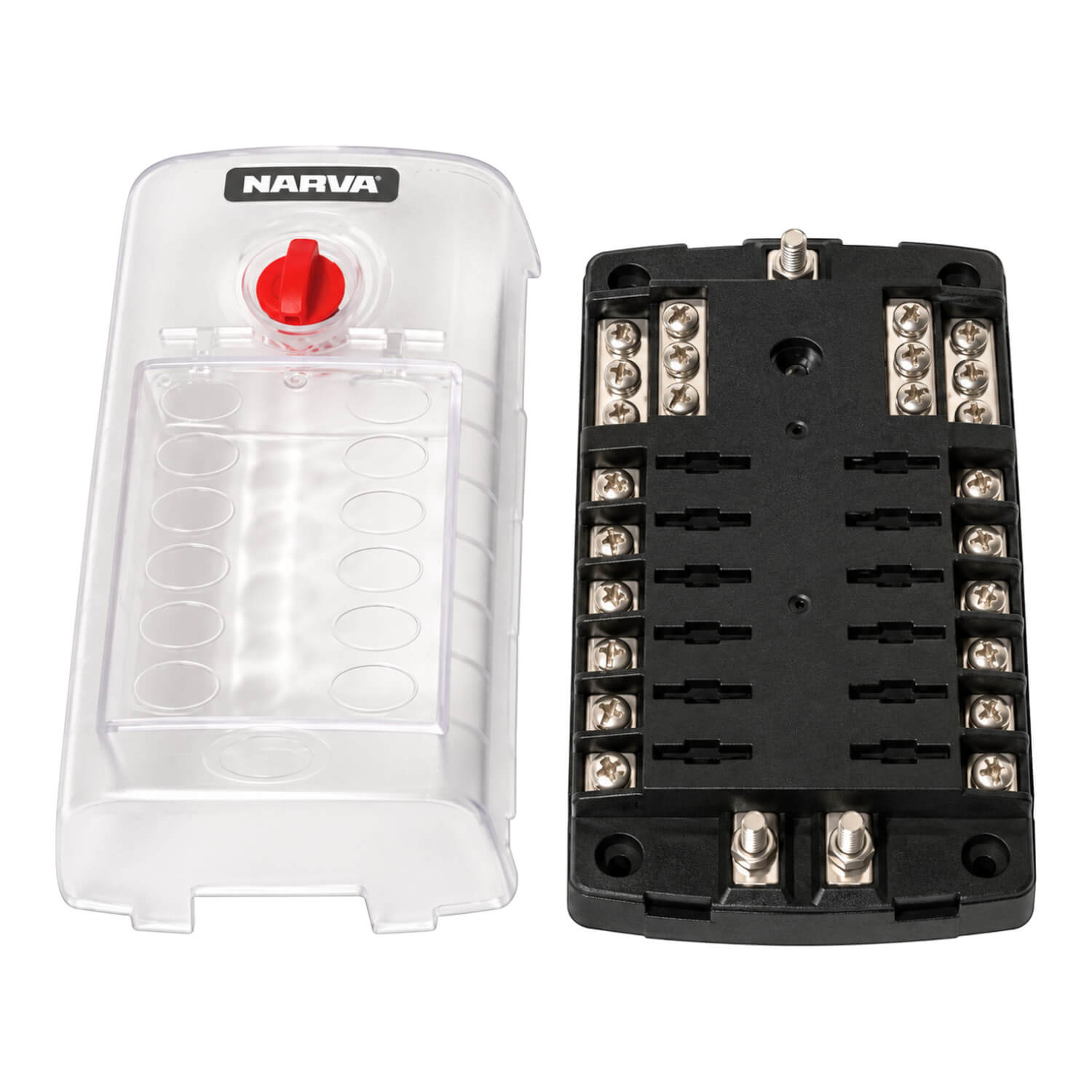

NARVA 12 Way Fuse Box
Consolidate multiple accessory circuits with the NARVA 12-way fuse box, part 220175. Dual power inputs and inbuilt common earth returns provide an organised format for wiring numerous circuits.
The box accepts standard ATS blade fuses and ATS plug-in circuit breakers. Its lockable transparent cover keeps the layout visible while covering the fuse positions, and 86 adhesive labels are included for circuit identification.
The body measures 165mm long, 94.5mm wide and 58mm high. Check those dimensions and the required connection clearance when choosing the mounting position. Match each fuse or breaker to the circuit being protected and label the completed layout accordingly.
Choosing and using this product
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Product details
- Product: NARVA 12 Way Fuse Box
- Product code: 220175
- NARVA fuse box with dual power inputs, common earth returns and lockable transparent cover
- For standard ATS blade fuses and ATS plug-in circuit breakers
- Includes 86 adhesive labels
- Dimensions: 165mm L x 94.5mm W x 58mm H
