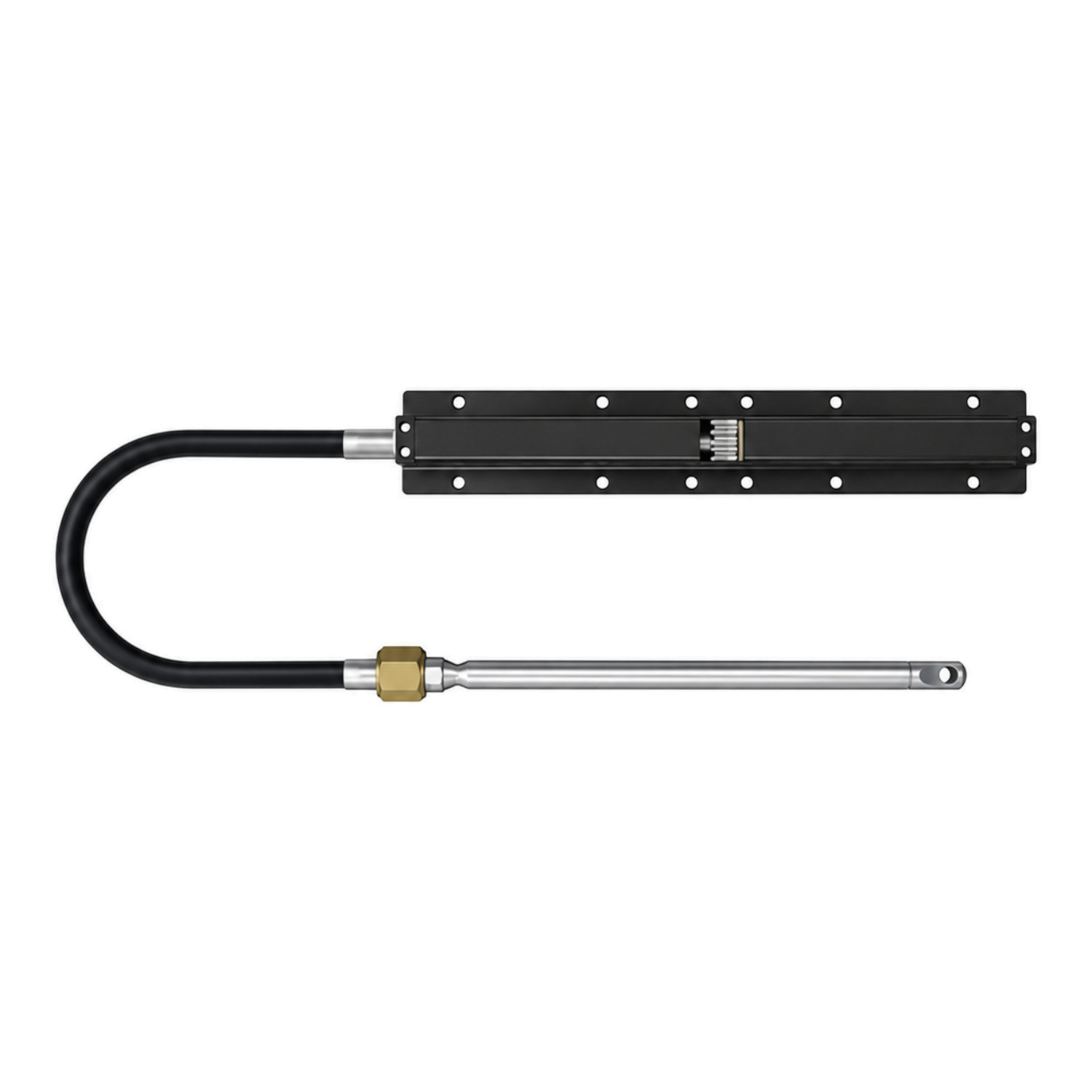

Multiflex SC20/SSC134 Rack and Pinion Steering Cable - 15ft
Use the Multiflex SC20/SSC134 cable for a compatible rack-and-pinion steering installation. It is listed as interchangeable with Seastar/Teleflex SSC134 rack cables and specifically excludes Ultraflex rack helms.
This version is specified as 15ft. Use these exact details when comparing the available options for your installation.
The fast-connect arrangement and stainless steel output ends are part of the cable design. Check both the rack connection and the engine-end fitting against the existing system before choosing the replacement.
The specified stroke is 210 mm and the minimum bend radius is 200 mm. These describe different aspects of the cable: stroke is output movement, while bend radius governs the routed curve. Keep the installation within the manufacturer’s routing requirements.
Confirm the ordered foot length against the measured cable route. The mounting-hole dimensions are an additional check at the helm, not a substitute for checking the complete rack assembly. Use the current installation instructions and actual component dimensions before drilling or fitting.
When replacing an existing cable, confirm that its identification is SSC134 rather than a similarly named rotary cable. A rack-and-pinion connection has its own mounting arrangement, and the stated SSC134 interchange does not extend to the excluded Ultraflex rack helms. Check the complete rack footprint behind the helm along with the output stroke and routed bend radius.
The nominal 15-foot length corresponds to 4.572 metres. Measure the full routed path and identify the connection type before selecting this length; extra cable length does not compensate for an incompatible end fitting.
Choosing and using this product
Keep connections and moving areas accessible for inspection. After fitting, the complete steering or control arrangement needs to be checked in accordance with its instructions, including movement through its intended range. A new replacement part does not remove the need to inspect adjoining worn components.
Product details
- Cable length 15ft.
- Interchangeable with Seastar/Teleflex SSC134 rack cables; not compatible with Ultraflex rack helms.
- Fast-connect installation and stainless steel output ends.
- Stroke 210mm (8.2 inches); minimum bend radius 200mm (7.9 inches).
- Helm mounting-hole spacings: 41mm horizontally and 60mm vertically.
