Multiflex No Feedback Planetary Gear Steering Kit - 16ft (4.88m)
Build a mechanical steering installation around the specified Multiflex helm and SC16 cable. This kit combines the helm, fast-connect steering cable and 90-degree black bezel, with the cable length defining the particular variant.
This version is specified as 16ft (4.88m). Use these exact details when comparing the available options for your installation.
Match the selected gear mechanism to the intended steering system, then check the actual cable route. The cable must reach through the installation with the required bends and engine connection; the direct distance between helm and engine is not the ordering length.
For replacement-cable measurement, the published method uses the coloured conduit length in centimetres, adds 56 cm, divides by 30.5 and rounds up to the next whole foot. Confirm that method against the current instructions and the cable being replaced before placing an order.
For a new installation, the route and mounting method matter. The measurement method allows for bends and distinguishes tilt-tube installation from splashwell or transom support mounting. Check those details before selecting the supplied length, and allow room behind the dashboard for the helm and cable connection.
For the new-cable route calculation, add the measured route sections and subtract 10 cm for each 90-degree bend. A through-tilt-tube installation adds 30.5 cm before conversion to feet; a splashwell or transom-support installation uses the corresponding route calculation. Round up to the next whole foot only after applying the appropriate method.
The nominal 16-foot length corresponds to 4.8768 metres. Measure the full routed path and identify the connection type before selecting this length; extra cable length does not compensate for an incompatible end fitting.
The no-feedback version uses a friction-lock mechanism released by steering-wheel movement and is specified for a single-engine application. It is a mechanical helm, not an automatic course-holding system.
Product details
- Single-engine no-feedback helm with friction lock released by steering-wheel movement.
- Galvanised steel shaft and die-cast zinc alloy cover.

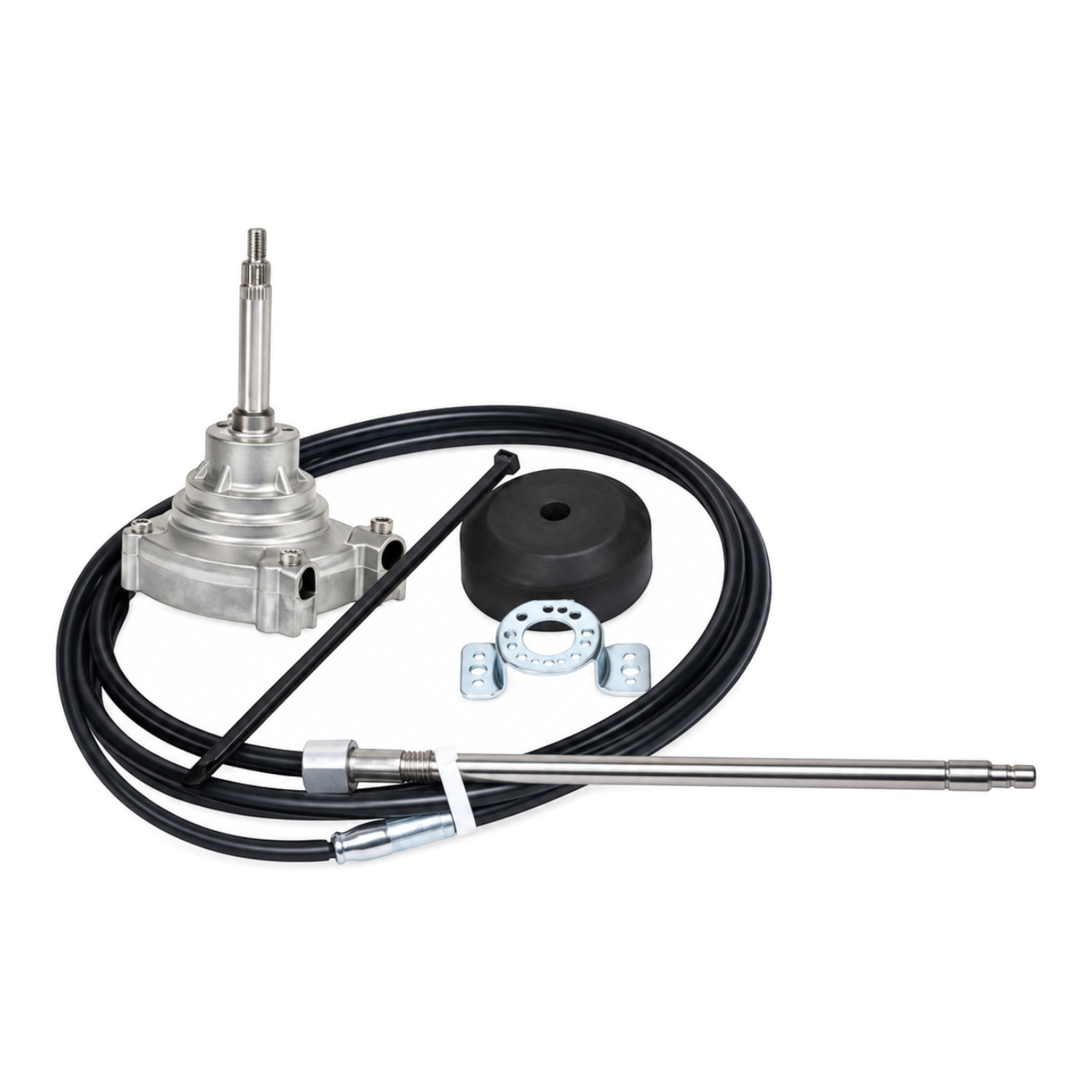

- Complete kit includes fast-connect no feedback planetary gear helm, SC16 universal steering cable and 90-degree black bezel kit.
- Cable length 16ft (4.88m).
