Mounting Panel - Middle
Finish a modular C7/Contura-style rocker-switch layout with the middle mounting component, part 700191. It is made from glass-fibre-reinforced nylon for the matching mounting system.
The middle section is used within an expanded row of switches. It lets the panel layout be planned around additional positions in the compatible modular system.
Check the existing mounting style before ordering. This is a panel component; its physical role should be matched to the switch layout being assembled.
Choosing and using this product
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Before ordering a mounting component, check the space on both sides of the proposed location. The visible footprint, fixing access and clearance needed to remove the supported item are separate considerations. Compare those details with the existing installation so the component can be positioned usefully.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Product details
- Product: Mounting Panel - Middle
- Product code: 700191

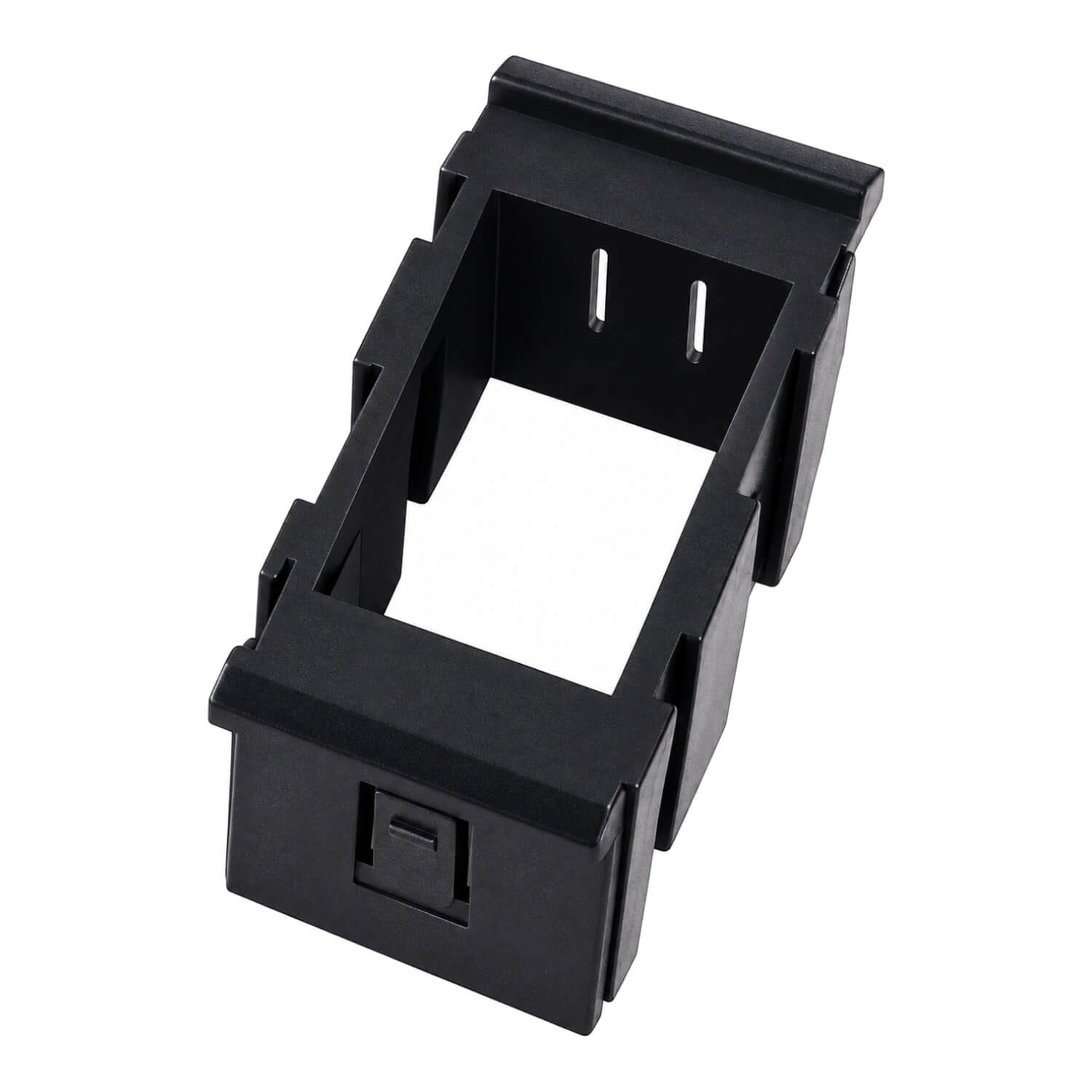

- Glass-fibre-reinforced nylon mounting component for C7/Contura-style rocker switches
- Modular design allows expansion to multiple switches
