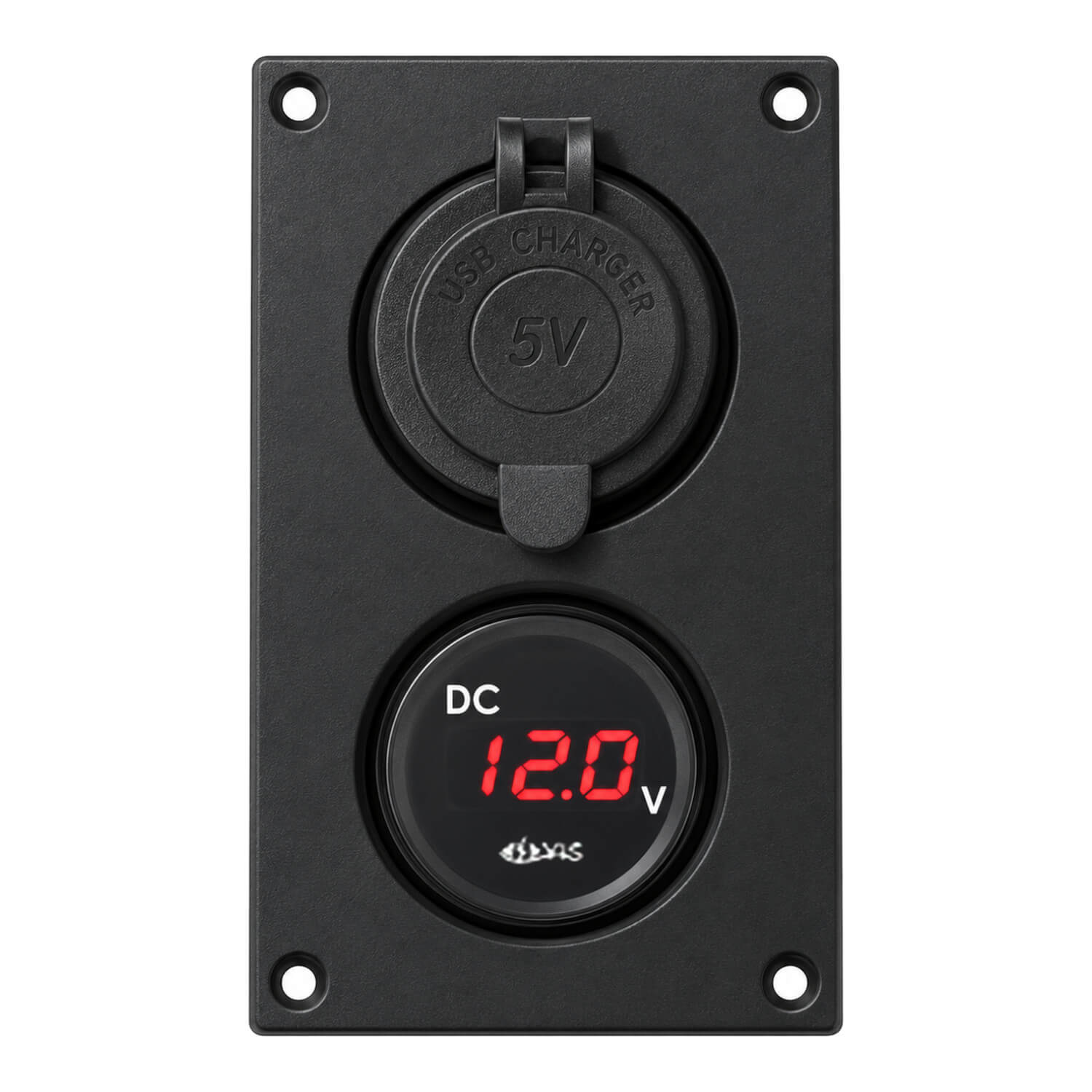

Mini Panel - USB Charging Port and Voltmeter
Add a USB charging port and digital voltmeter beside a compatible C7 control panel with mini panel 702195. Its 114 x 54 x 75mm body and 105 x 45mm cut-out are designed to coordinate with panels 702190 and 702192.
The voltmeter has a DC measurement range of 2.5–30V, while the USB charging port supplies 5V at 2.4A. This combination brings voltage monitoring and USB charging into the same small panel.
Check the mounting depth and the separate electrical requirements of the functions before fitting. Use the compatible panel codes and stated cut-out to plan a consistent console layout.
Choosing and using this product
Keep the gauge and sender model references together in the boat’s records. This helps avoid mismatching a later replacement with a different signalling range. Where the listing is an accessory or service part, confirm the parent instrument that it is intended to support.
For this version, size: 114 x 54 x 75mm. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Plan the installation using the instrument and sender instructions, including any calibration or setup required for the model. Keep the wiring identifiable and accessible for later inspection. Check the completed system with the associated equipment before relying on the display.
Check the dashboard cut-out and the available depth behind it separately from the face diameter. Wiring connections and any retaining hardware need room as well. For a replacement, measure the actual opening rather than assuming instruments with similar faces use identical mounts.
Product details
- Product: Mini Panel - USB Charging Port and Voltmeter
- Product code: 702195
- Mini panel with 1 x 5V 2.4A USB charging port and voltmeter measuring DC 2.5-30V
- Fits 702190 and 702192 panels
- Size: 114 x 54 x 75mm
- Cutout: 105 x 45mm
