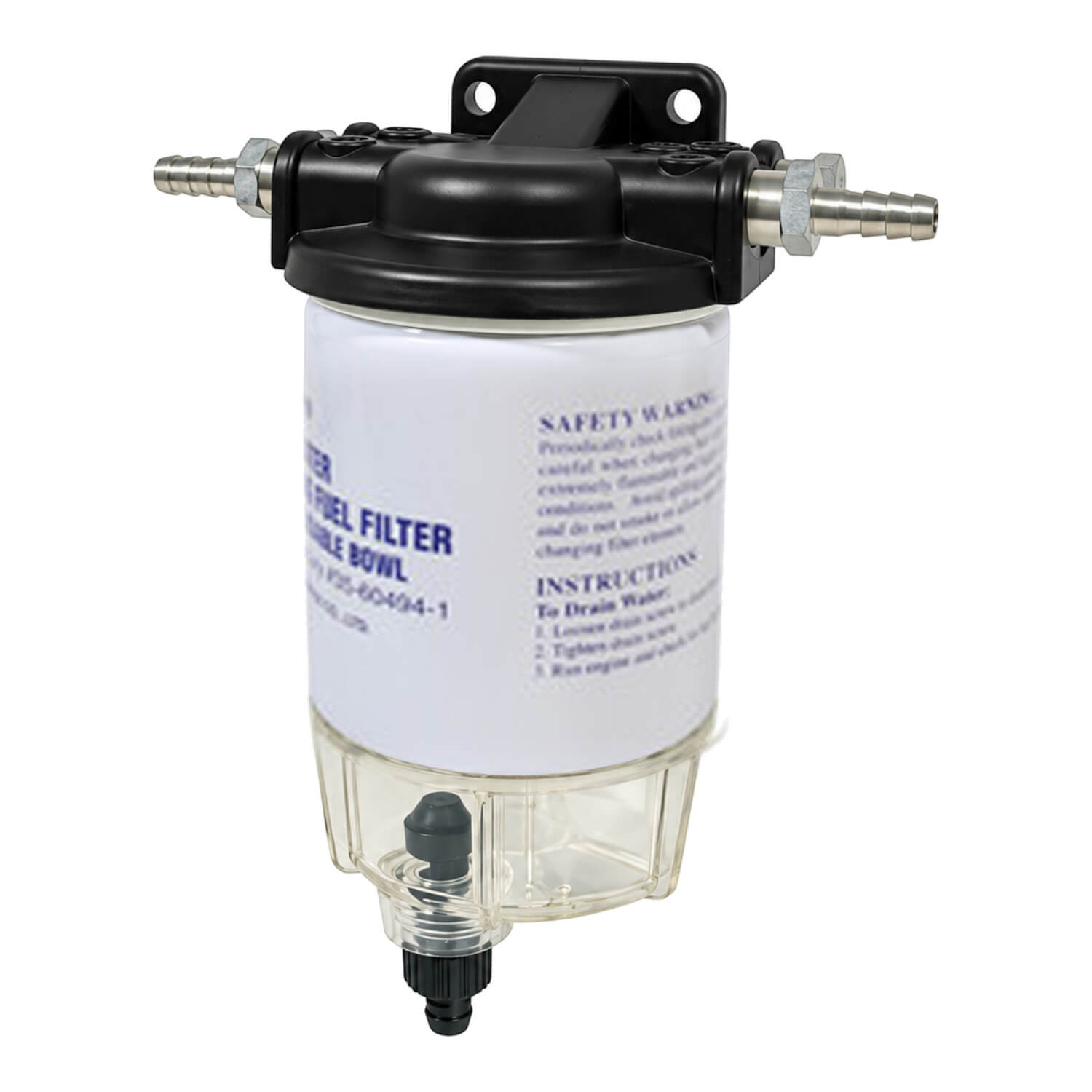

Water Separating Fuel Filter kit with Aluminium Head & Clear Bowl - suitable for 2 & 4 stroke fuels but not diesel
Bring filtration and water collection together with this Easterner marine fuel-filter kit. Product 358240 combines a aluminium mounting head with a 10-micron element and clear collection bowl for a two-stroke or four-stroke petrol fuel system. It is not suitable for diesel.
The transparent lower bowl makes collected water visible, while the screw-in drain plug provides access for draining. This arrangement is useful when you want to inspect the collection area without relying on an opaque filter canister. Follow the system instructions when checking or draining the bowl.
The complete assembly includes the mounting head and bracket, filter element, clear bowl, two brass barbs for 10 mm hose and two 3/8-inch NPT plugs. These specified parts give you a defined starting point for matching the hose connections and unused ports to the installation.
Mercury and Yamaha thread compatibility identifies the filter style. Confirm the actual head, element thread and engine fuel-system requirements before ordering; the brand name alone does not establish suitability for every model.
Allow room for the full assembly and subsequent filter servicing. Its 106 mm width, 106 mm depth and 230 mm overall height describe the assembled unit, while the mounting holes are 8 mm. Check the available mounting area and hose approach as well as the physical footprint.
The aluminium head distinguishes this code from the other head-material option in the range. Choose the complete kit when you need the head and bowl assembly together, and identify individual replacement elements or bowls separately when servicing an existing installation.
Product details
- Head material: aluminium
- Filtration: 10 microns
- Fuel: two-stroke and four-stroke petrol only; not diesel
- Thread style: Mercury/Yamaha
- Width: 106 mm
- Depth: 106 mm
- Height: 230 mm
- Mounting holes: 8 mm
- Included: head/bracket, element, clear bowl and screw-in drain plug
- Included: 2 brass 10 mm hose barbs and 2 x 3/8-inch NPT plugs
- Product code: 358240
