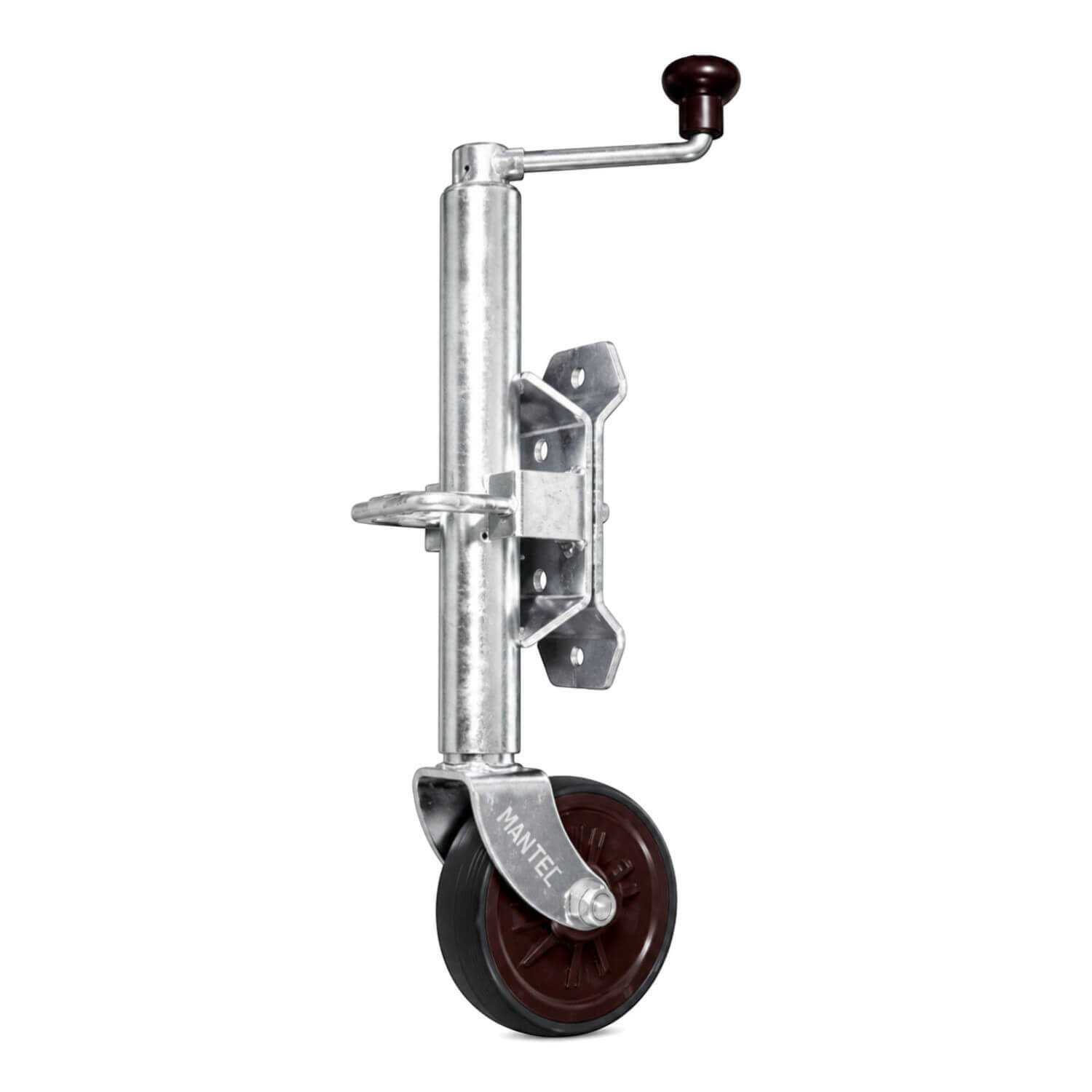

Manutec Standard Jockey Wheel with Swivel Clamp Fasteners Hardware
Choose the Manutec Standard Jockey Wheel with Swivel Clamp for a trailer support arrangement that matches its wheel, mounting style and 350kg stated load capacity. Compare these details with the existing trailer installation before selecting a replacement.
The wheel construction and dimensions are listed below. Match the tyre type, wheel clearance and bearing or bush arrangement to the intended use rather than assuming all wheels of a similar diameter are interchangeable.
The bolt-on/weld-on swing-up clamp gives the assembly its swivelling mounting format. Compare the trailer mounting surface and swing clearance before fitting.
The listed 225mm extension is the adjustment travel, not a complete minimum-to-maximum installation height. Check the required support position before fitting.
The 350kg capacity applies to the stated assembly. It is not the gross trailer weight and should not be transferred to an individual spare wheel or clamp. Confirm the load carried at the support point and the condition of the mounting arrangement.
Choosing and using this product
Review the supplied quantity and contents before planning the job. A component-only listing, pair and complete kit can cover different amounts of the repair. Matching or related product codes identify associated parts, but do not establish that those parts are included.
Keep the replacement part code and the trailer’s relevant dimensions together for later maintenance. Where more than one roller or running-gear size is fitted, label the location so subsequent orders can be matched to the correct position.
Identify the trailer assembly and the exact position being serviced before selecting a replacement. Hub, axle, coupling, spring and roller components each have their own dimensions and mating requirements. A similar overall appearance does not establish that two parts will fit the same trailer.
Product details
- 150 x 50mm solid rubber wheel with nylon bush.
- Bolt-on/weld-on swing-up clamp.
- Load capacity: 350kg.
- Extension: 225mm.
- Product code: 766002
