LED 150 Series 12V Trailer Light Set Boat Hardware Parts

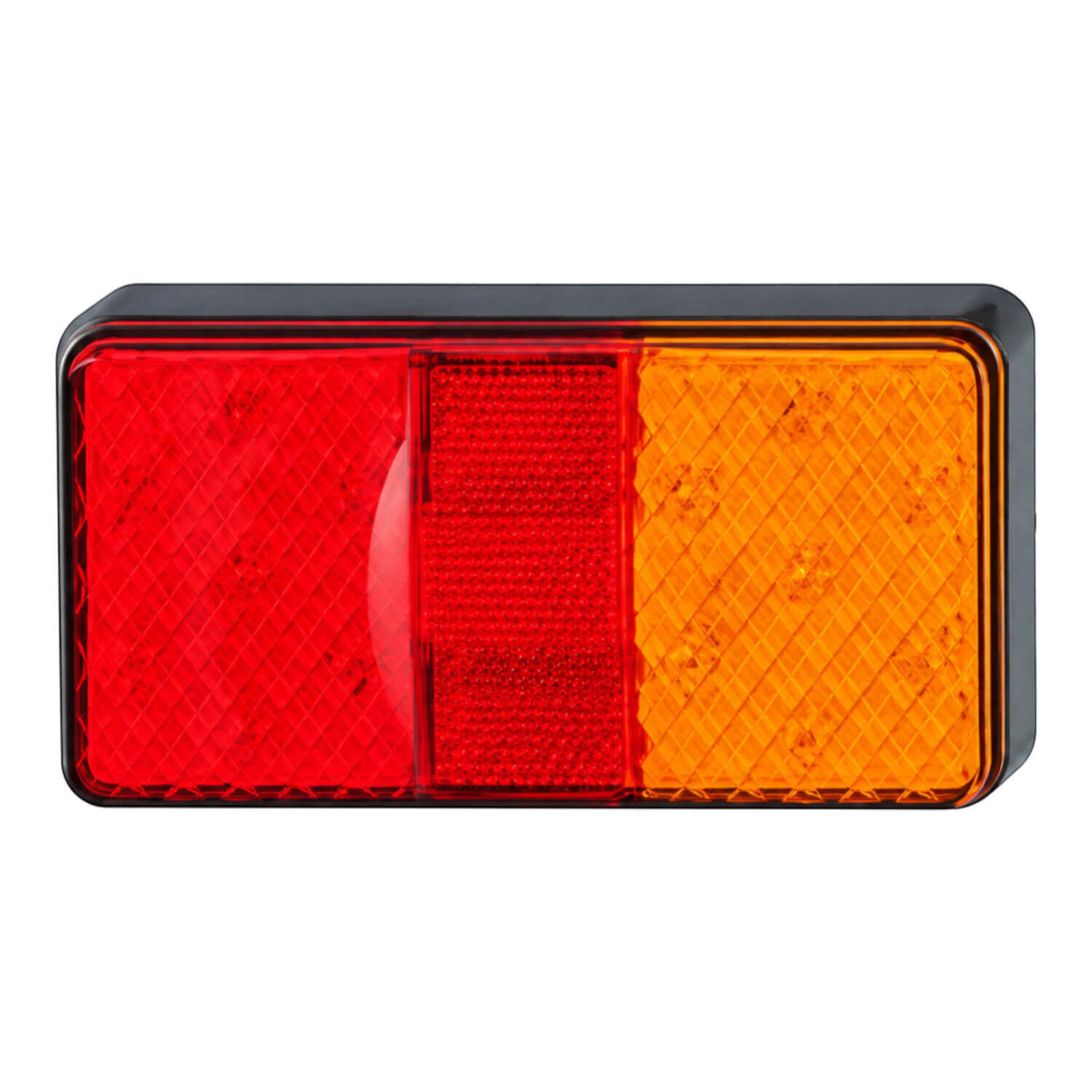

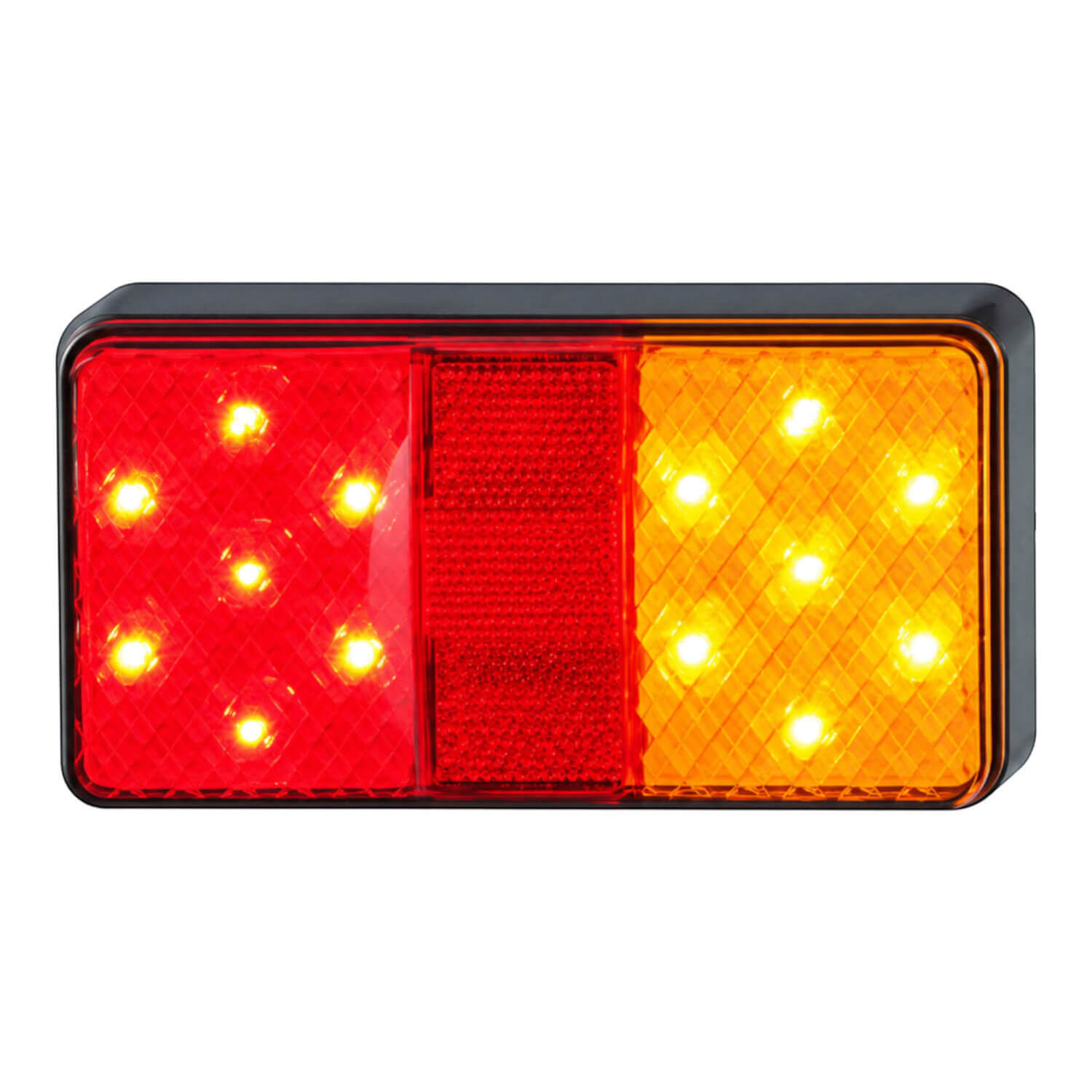

Refresh a 12V trailer lighting installation with the LED 150 Series trailer light set. It combines stop/tail, indicator and reflector functions in a compact rectangular format, with listed dimensions of 150 x 80 x 24mm. The red and amber lens areas make the lighting functions visually distinct.
The lights are specified as fully submersible, with rust-proof and shock-resistant construction. Inside, the circuit board is encased in resin and the tinned copper wiring has corrosion protection. These are relevant features for a boat trailer that enters the water during launching and retrieval.
A diamond lens pattern forms part of the light design. The set also uses specially designed male and female four-pin plugs compatible with the plug-in-and-drive-away cable system. Check the existing cable-system connectors before treating this as a direct replacement for another trailer light.
ADR/ECE approval is stated for this light set. That product approval does not remove the need to install the lights in the appropriate positions, connect the required functions correctly and check the completed trailer installation.
Confirm the 12V supply, available mounting space and connection arrangement before ordering. The dimensions allow you to compare the lamp body with the existing mounting area. No 24V operation, additional cable length or complete vehicle-to-trailer wiring loom is specified as part of this listing.
The stop and tail functions serve braking and rear-position lighting, while the indicator provides the turn signal. Check each function independently after connection so that the trailer responds correctly to the vehicle controls.
Product details
- 12V LED trailer light set with stop/tail, indicator and reflector functions.
- Dimensions: 150 x 80 x 24mm.
- Fully submersible, rust-proof and shock-resistant, with diamond lens pattern.
- Circuit board encased in resin with corrosion-protected tinned copper wiring.
- Male and female 4-pin plugs compatible with the plug-in-and-drive-away cable system.
- ADR/ECE approved.
- Product code: 762836
