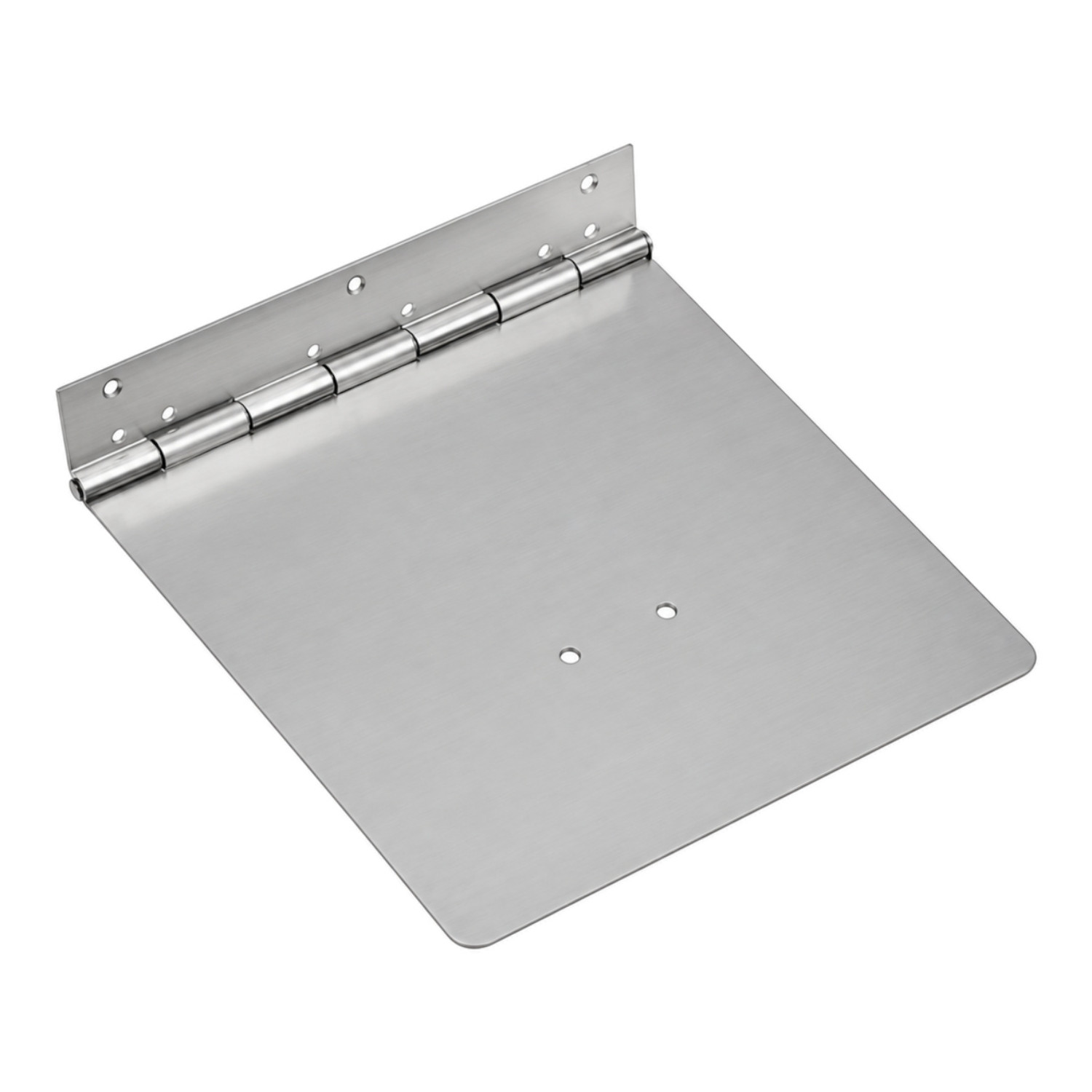

Lectrotab Stainless Steel Trim Tab Plate Assembly - 9 x 18 Inches
Select this Lectrotab plate by its chord length, width and material. The first dimension is measured from the hinge to the trailing edge; the second dimension is the tab width across the transom.
This version is specified as 9 x 18 Inches. Use these exact details when comparing the available options for your installation.
The plate is sold individually. Order two when the installation requires a pair, and check that the actuator and mounting arrangement suit the chosen plate. Plate dimensions alone do not establish suitability for every hull.
Compare the available transom area with both dimensions, allowing for the hinge and actuator position. Use the complete trim-tab selection and installation instructions for the boat, including its hull type and operating configuration.
The stainless version uses a continuous rolled-and-pinned hinge without welding.
Choosing and using this product
When adding another control station, use the stated system compatibility and connection requirements. A cable or switch should be selected for its documented role rather than its appearance. Retain the part reference to simplify future service purchases.
Plan the trim-tab system around the boat and the exact control arrangement. Plates, actuators, controls and communication cables perform different functions, so establish which components are already fitted and which are being added or replaced.
Check the package contents before ordering a kit. Some packages provide controls and actuators without plates; others may supply a different combination. Compare the complete list with the intended installation and any separately required components.
Allow space for the actuator movement, cable routing and access to connections. Follow the system instructions for fitting and setup, then check the finished arrangement as a complete system. Keep the control and actuator references together in the boat’s records.
Product details
- Corrosion-resistant 12 gauge 304 stainless steel with continuous rolled and pinned hinge; no welding.
- Chord length 9 inches (hinge to trailing edge); tab width 18 inches.
- Sold per plate; order two for a pair.
