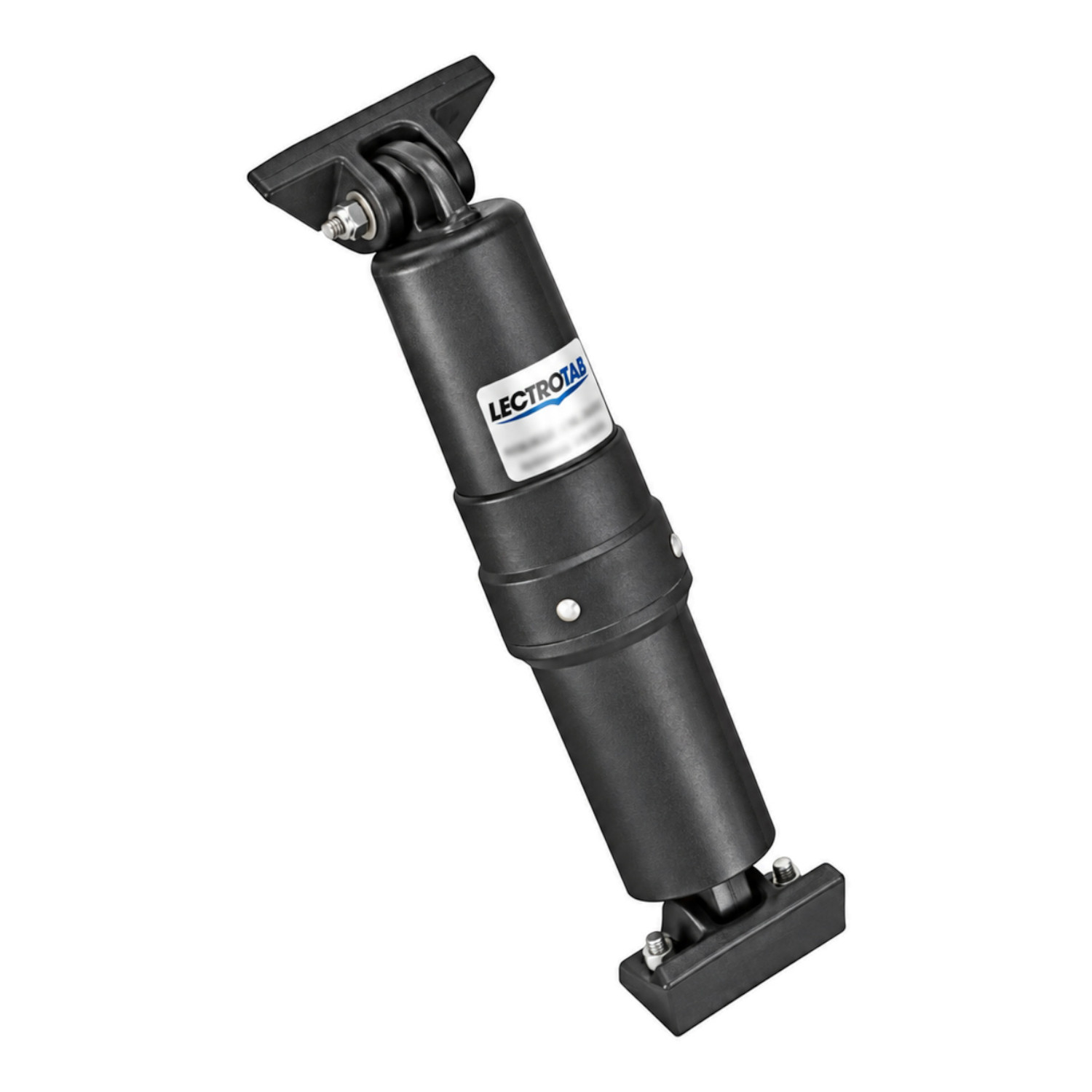

Lectrotab Short Actuator - 12V DC - 1 1/2-inch Stroke
Operate a compatible trim tab with this Lectrotab electromechanical actuator. The self-contained, non-hydraulic design uses a permanently sealed non-metallic housing, without a hydraulic pump, reservoir or oil circuit for the actuator.
This version is specified as 12V DC - 1 1/2-inch Stroke. Use these exact details when comparing the available options for your installation.
Choose the exact voltage and stroke version before planning the installation. Bolt-to-bolt length, stroke and vertical mounting clearance are different measurements, and the mounting geometry changes with the bracket and transom angle.
Do not reverse the top bracket. Check the current installation drawing against the actual transom and plate mounting point, retaining the required tab clearance. A short actuator provides a different stroke and installation envelope from the standard model.
Bennett replacement compatibility is dimensional only. Converting from a hydraulic system also requires the appropriate Lectrotab control and electrical arrangement; a matching ram size does not make the existing hydraulic switch circuit suitable.
Stroke time describes the actuator’s travel cycle, whereas the bolt-to-bolt length describes its installed body span. Keep both distinct from the vertical clearance figures. The stated tab deflection applies at the standard mounting point, so a different mounting geometry needs verification rather than assuming the same angle.
Product details
- Non-hydraulic, maintenance-free, corrosion-resistant actuator with permanently sealed non-metallic housing.
- Self-contained installation; no internal boat components or hydraulic oil.
- Do not reverse the top bracket.
- Low-profile upper mounting bracket for limited vertical clearance.
- Bolt-to-bolt length 10 inches; stroke 1 1/2 inches; required vertical mounting distance 8 3/4 inches.
- 15-degree tab deflection at standard mount point; 6-second stroke time.
- Size-compatible replacement for Bennett short ram.
- Installation dimensions: bolt-to-bolt length 10 inches (254mm); diameter 2.50 inches (63mm); full stroke 1 1/2 inches (38mm).
- Vertical heights 10 inches (254mm), or 9 inches (229mm) with low-profile bracket, varying with transom angle.
- Typical mounting angle 40 degrees; tab mount offset 7 3/4 inches (197mm); minimum tab clearance 1/4 inch (6mm).
