Lectrotab Manual Leveling Control
Manage compatible trim tabs with the selected Lectrotab control. The operating interface, station configuration and actuator connections distinguish this model from the other controls in the range.
Use the listed functions and voltage requirements when planning the electrical installation. Check the panel space and the connection to the actuators, following the model-specific wiring instructions rather than reusing another control’s circuit without verification.
Position indication, automatic retraction and previous-position memory are included only where specified for this exact model. Match the control to the required system and select any communication cables or adaptors separately where indicated.
Choosing and using this product
Check the package contents before ordering a kit. Some packages provide controls and actuators without plates; others may supply a different combination. Compare the complete list with the intended installation and any separately required components.
Allow space for the actuator movement, cable routing and access to connections. Follow the system instructions for fitting and setup, then check the finished arrangement as a complete system. Keep the control and actuator references together in the boat’s records.
When adding another control station, use the stated system compatibility and connection requirements. A cable or switch should be selected for its documented role rather than its appearance. Retain the part reference to simplify future service purchases.
Plan the trim-tab system around the boat and the exact control arrangement. Plates, actuators, controls and communication cables perform different functions, so establish which components are already fitted and which are being added or replaced.
For a replacement part, compare the actuator or control model and the mounting position. Upper, lower and low-profile brackets are different pieces. Match the specified component and listed hardware rather than assuming every part fits throughout the range.
Product details

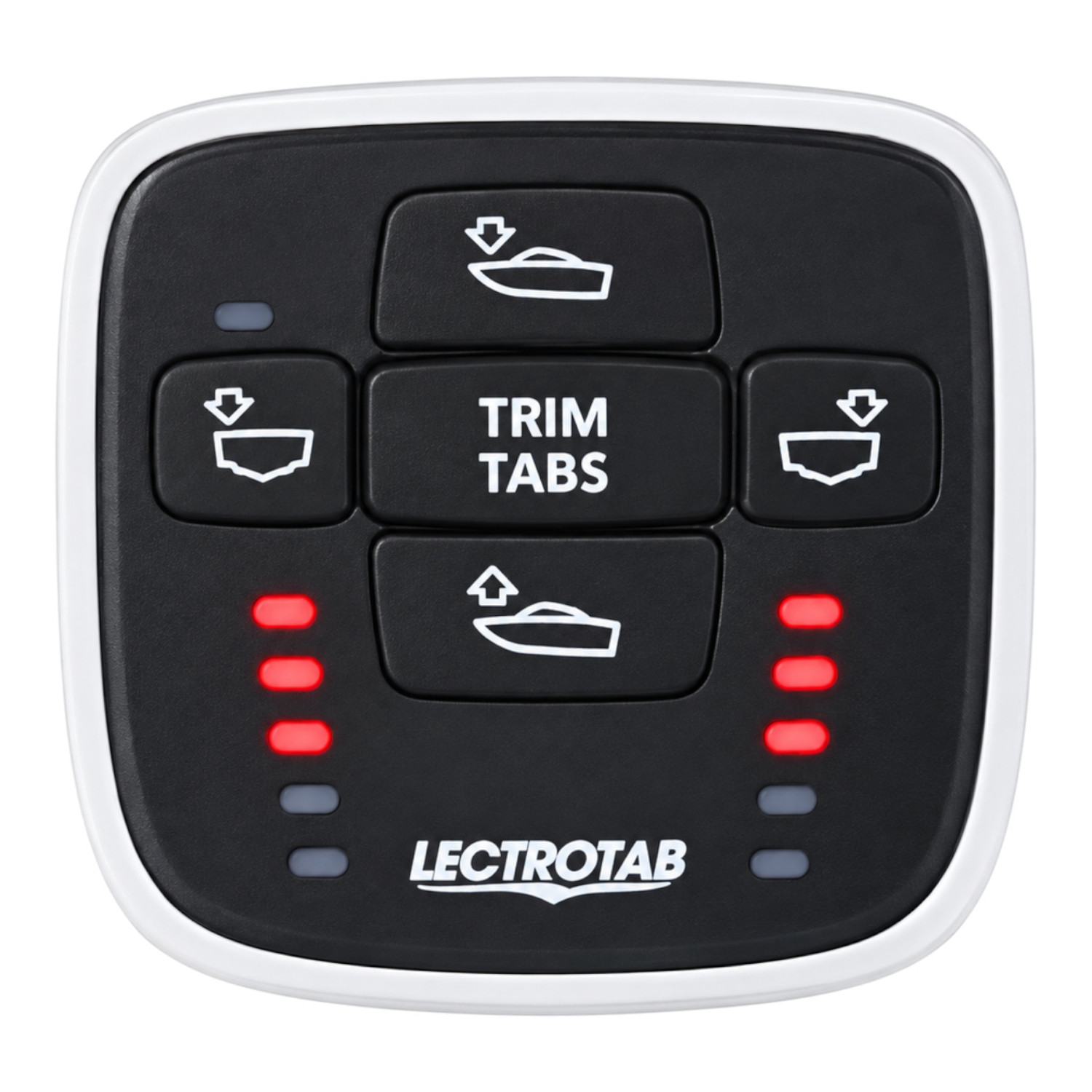

- Microprocessor trim-tab control with LED position indicators; one-button simultaneous up/down movement.
- Sealed waterproof and UV-resistant.
- Returns to previous tab position after ignition cycling; automatic retraction and calibration on key/accessory switch off.
- Rubber overlay and slim bezel.
- Upgrade from rocker switches or oval control.
- Single-button touch control and previous-position memory.
