Lectrotab Trim Tab Kit - 9 x 9-inch Aluminium Plates - Standard Switch
Select this Lectrotab trim-tab kit by its actuator size, control option and plate configuration. Those choices determine the package, so compare the exact code rather than assuming every kit contains the same parts.
This version is specified as 9 x 9-inch Aluminium Plates - Standard Switch. Use these exact details when comparing the available options for your installation.
The kit brings together actuators, the selected control, interconnecting wire and hardware. Where plates are included, their size and material are listed below; a no-plates kit requires the plates to be selected separately.
Check the available transom height against the actuator length and the required mounting geometry. The short and standard actuators have different strokes, so follow the matching installation instructions and do not reverse the upper bracket.
Control selection is a separate decision from plate size. Standard switching, one-touch operation, manual levelling and automatic levelling are different configurations. Confirm the boat’s electrical system, installation layout and exact supplied control before fitting the package.
Choosing and using this product
When adding another control station, use the stated system compatibility and connection requirements. A cable or switch should be selected for its documented role rather than its appearance. Retain the part reference to simplify future service purchases.
Plan the trim-tab system around the boat and the exact control arrangement. Plates, actuators, controls and communication cables perform different functions, so establish which components are already fitted and which are being added or replaced.
Allow space for the actuator movement, cable routing and access to connections. Follow the system instructions for fitting and setup, then check the finished arrangement as a complete system. Keep the control and actuator references together in the boat’s records.
Product details

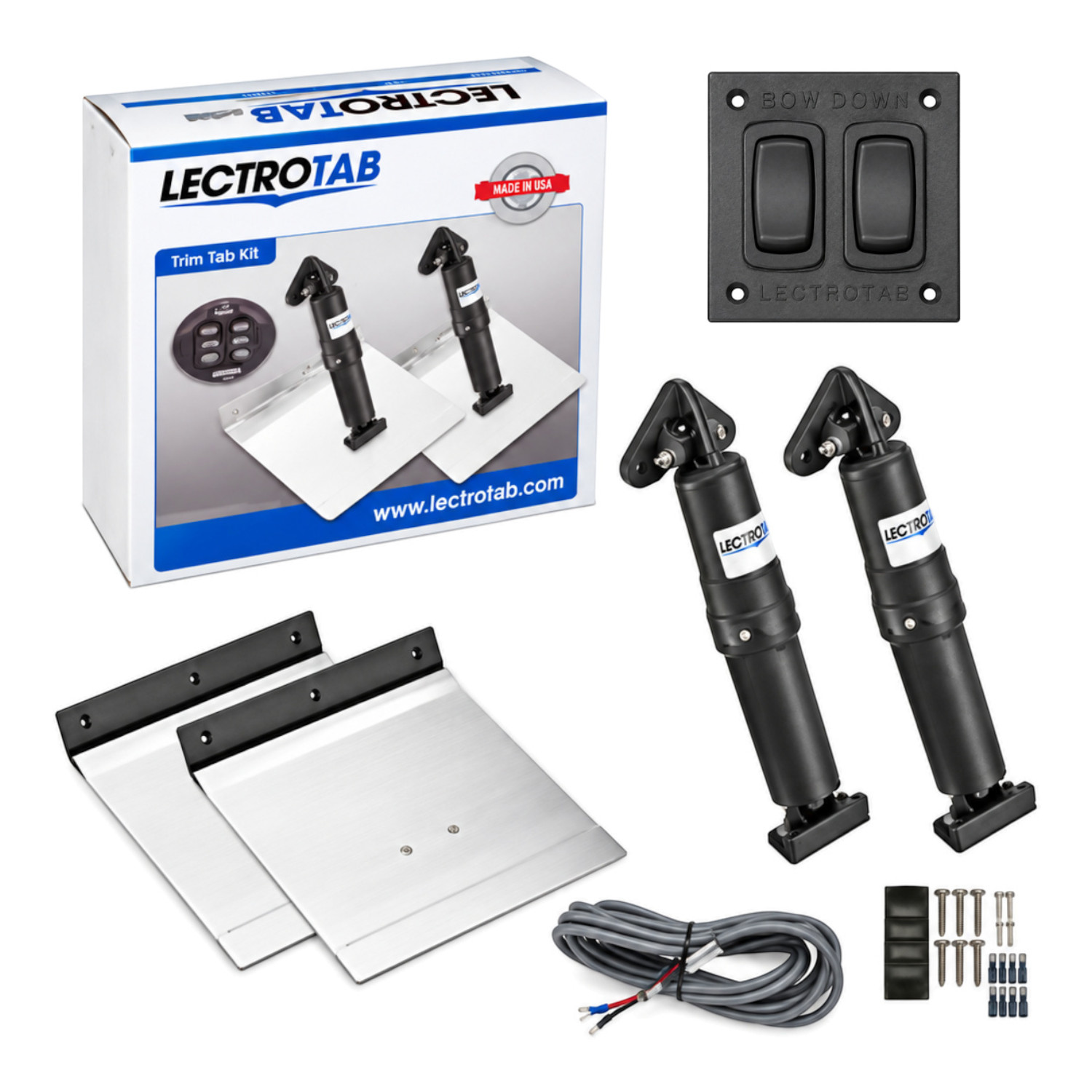

- Prepacked kit with standard 11 9/16-inch actuators, Standard Switch, 9 x 9-inch aluminium plates, hardware kit and interconnecting wire.
- Plate size is chord length x width.
