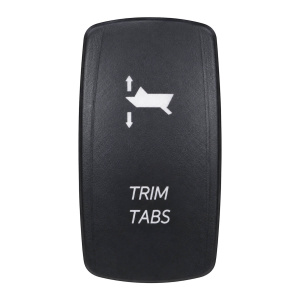

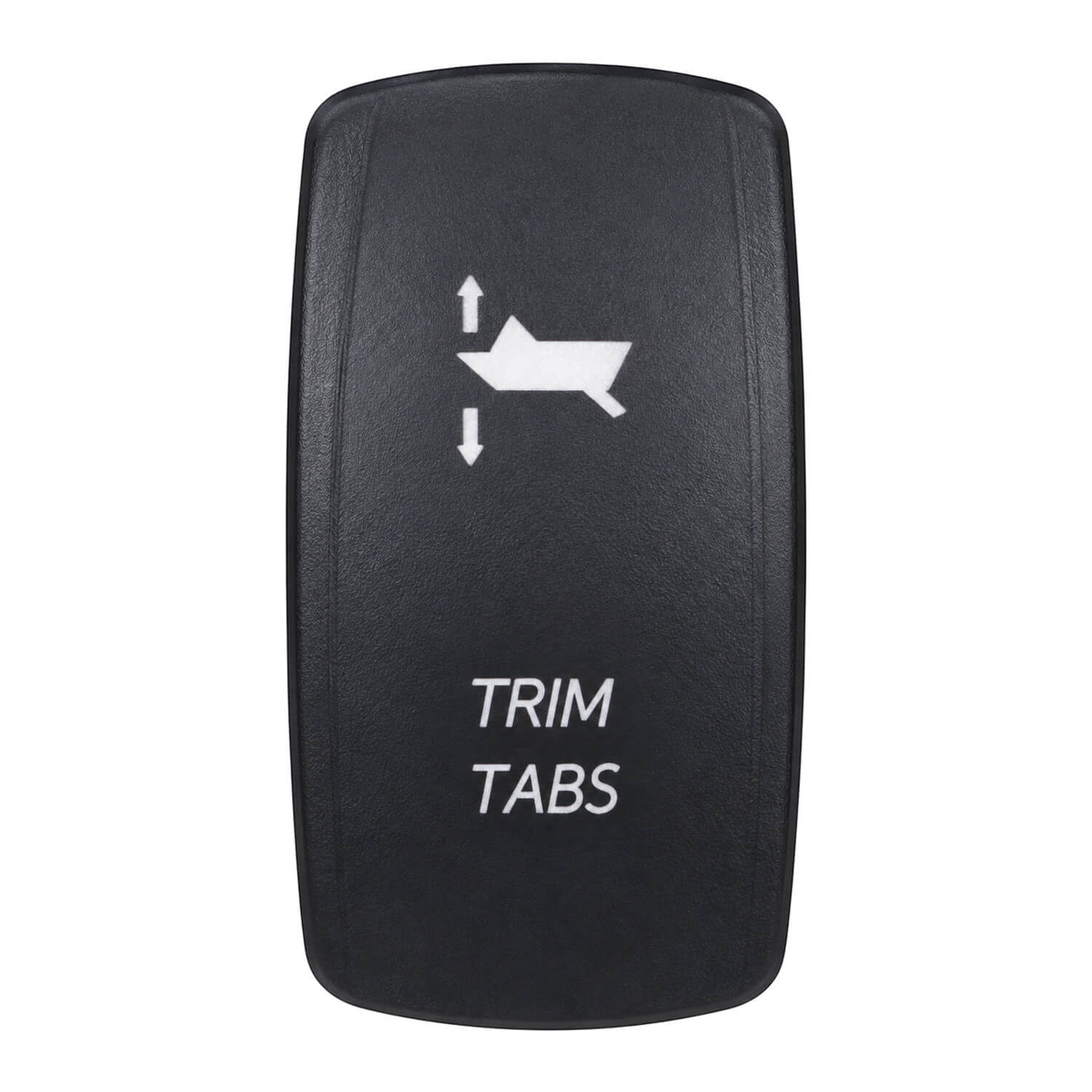

Laser Etched Rocker Switch - Trim Tab - Blister Packed - Momentary ON/OFF/Momentary ON - Red - 12/24v
Identify trim-tab control clearly with the trim tab laser-etched rocker switch, part 709761. This blister-packed version combines the selected actuator legend with red LED illumination and momentary on/off/momentary on operation.
The trim tab legend helps distinguish the control from neighbouring switches on a marine panel. Its momentary on/off/momentary on action must be matched to the actual control circuit for the connected equipment.
The switch is rated at 20A on DC12V/24V and has an IP65 water-resistant sealed design for marine or outdoor use. Wiring connects through 0.250-inch quick-connect terminals.
Choose the blister-packed code when a packaged individual switch is required. The corresponding replacement actuator is 709851, allowing the legend component to be identified separately.
Match the switch action, contact requirements and connected load before installation. An equipment legend identifies a function; it does not establish direct compatibility with every device bearing that name.
Choosing and using this product
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Product details
- Product: Laser Etched Rocker Switch - Trim Tab - Blister Packed - Momentary ON/OFF/Momentary ON - Red - 12/24v
- Product code: 709761
- Water-resistant rocker switch with laser-etched actuator and red LED illumination
- IP65, designed for marine or outdoor applications
- DC12/24V dual voltage and 0.250-inch quick-connect terminals
- Switch Action: Momentary ON/OFF/Momentary ON
- Illumination: Red
- Voltage: 12/24v
- Amp: 20
