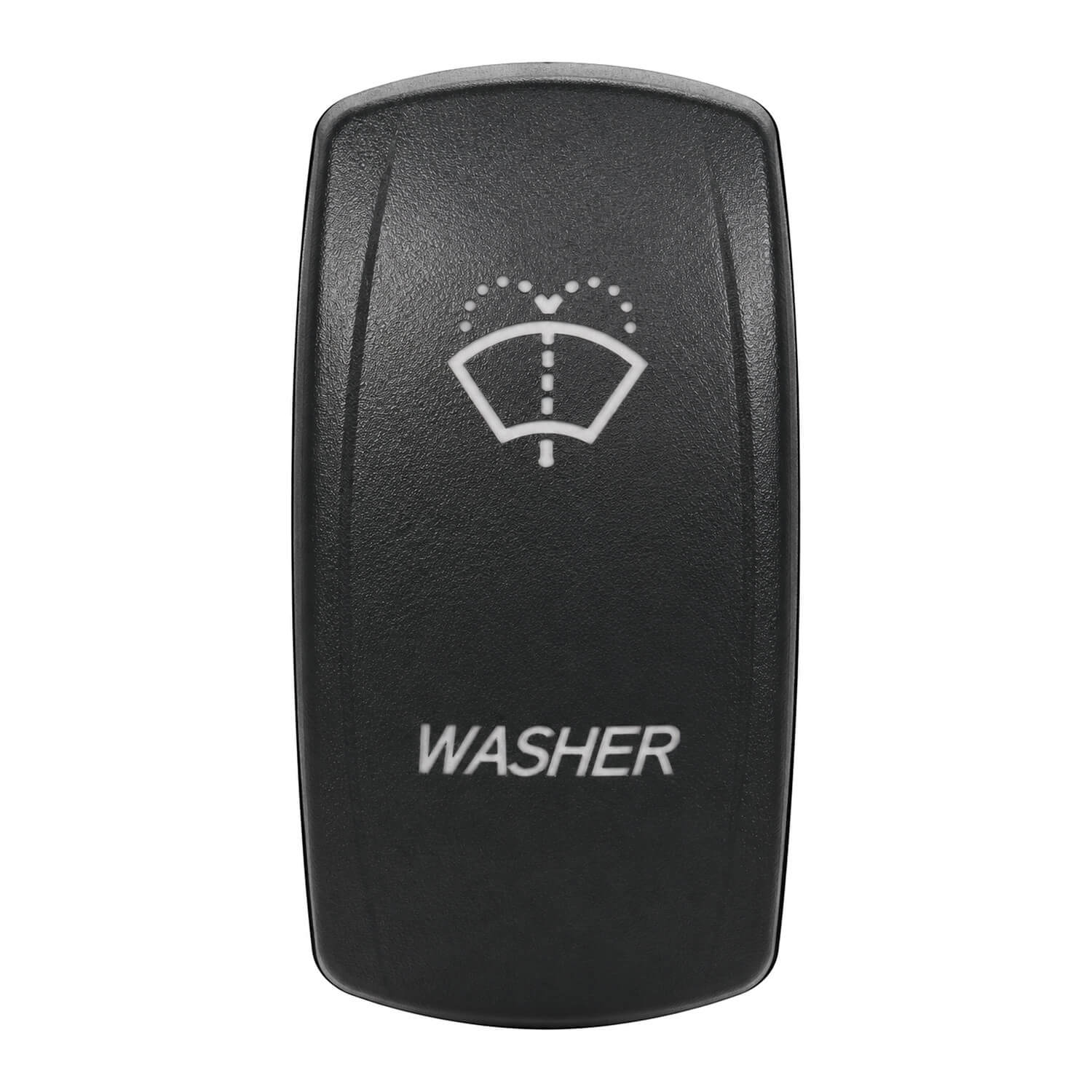

Laser Etched Rocker Switch - Washer - Blister Packed - ON/OFF - Red - 12/24v
Identify windscreen-washer control clearly with the washer laser-etched rocker switch, part 709769. This blister-packed version combines the selected actuator legend with red LED illumination and on/off operation.
The washer legend helps distinguish the control from neighbouring switches on a marine panel. Its on/off action must be matched to the actual control circuit for the connected equipment.
The switch is rated at 20A on DC12V/24V and has an IP65 water-resistant sealed design for marine or outdoor use. Wiring connects through 0.250-inch quick-connect terminals.
Choose the blister-packed code when a packaged individual switch is required. The corresponding replacement actuator is 709858, allowing the legend component to be identified separately.
Match the switch action, contact requirements and connected load before installation. An equipment legend identifies a function; it does not establish direct compatibility with every device bearing that name.
Choosing and using this product
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Product details
- Product: Laser Etched Rocker Switch - Washer - Blister Packed - ON/OFF - Red - 12/24v
- Product code: 709769
- Water-resistant rocker switch with laser-etched actuator and red LED illumination
- IP65, designed for marine or outdoor applications
- DC12/24V dual voltage and 0.250-inch quick-connect terminals
- Switch Action: ON/OFF
- Illumination: Red
- Voltage: 12/24v
- Amp: 20
