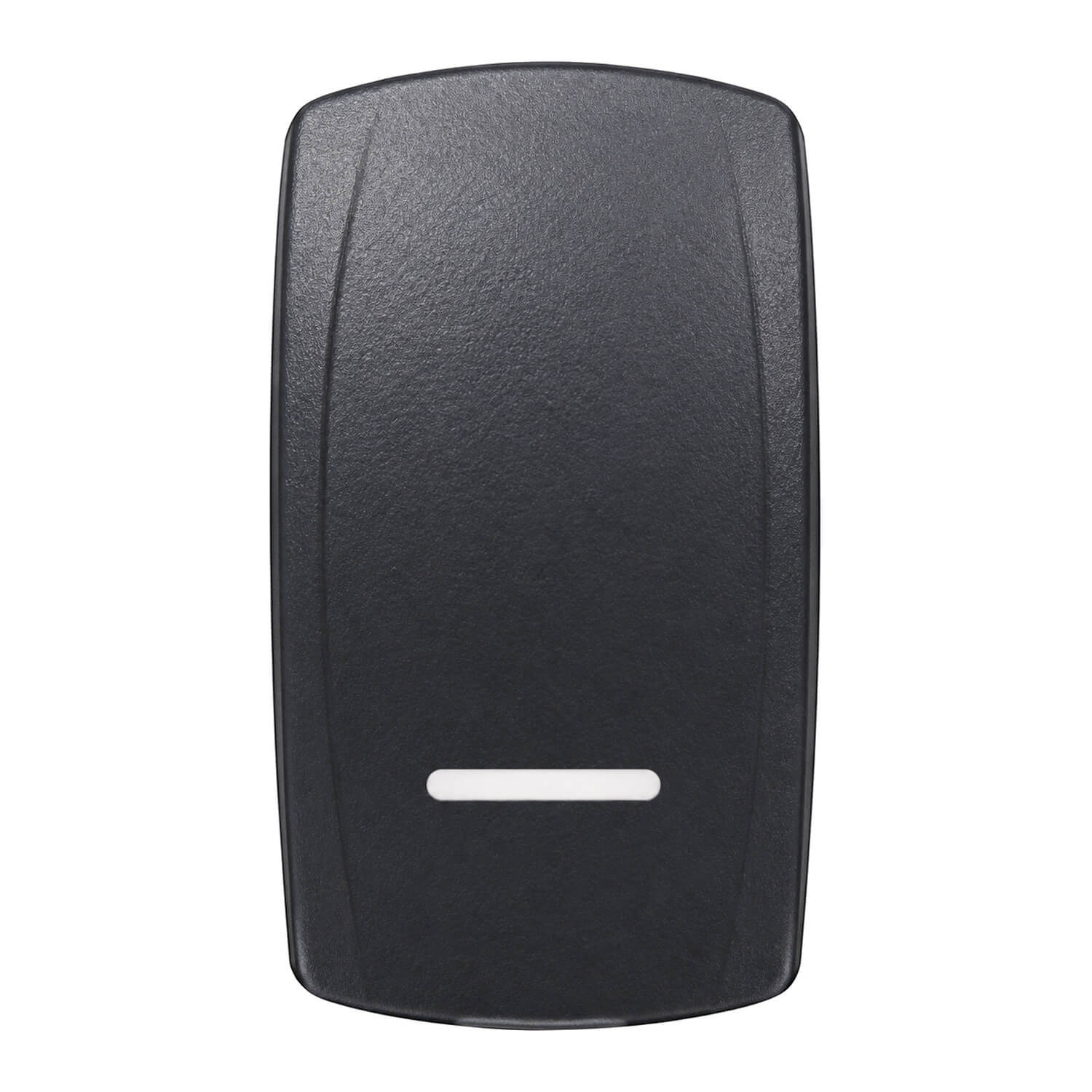

Laser Etched Rocker Switch - Blank - Bulk - ON/OFF - Red - 12/24v
Identify a separately chosen circuit clearly with the blank laser-etched rocker switch, part 709768B. This bulk, unpackaged version combines the selected actuator legend with red LED illumination and on/off operation.
The blank actuator leaves the face without a named equipment function. It provides a plain option when the required circuit label is handled elsewhere in the panel layout.
The switch is rated at 20A on DC12V/24V and has an IP65 water-resistant sealed design for marine or outdoor use. Wiring connects through 0.250-inch quick-connect terminals.
This bulk code supplies the switch unpackaged. For later actuator identification, the matching actuator-only code is 709860. Keep that component reference with the installed control.
Match the switch action, contact requirements and connected load before installation. An equipment legend identifies a function; it does not establish direct compatibility with every device bearing that name.
Choosing and using this product
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Product details
- Product: Laser Etched Rocker Switch - Blank - Bulk - ON/OFF - Red - 12/24v
- Product code: 709768B
- Water-resistant rocker switch with laser-etched actuator and red LED illumination
- IP65, designed for marine or outdoor applications
- DC12/24V dual voltage and 0.250-inch quick-connect terminals
- Switch Action: ON/OFF
- Illumination: Red
- Voltage: 12/24v
- Amp: 20
