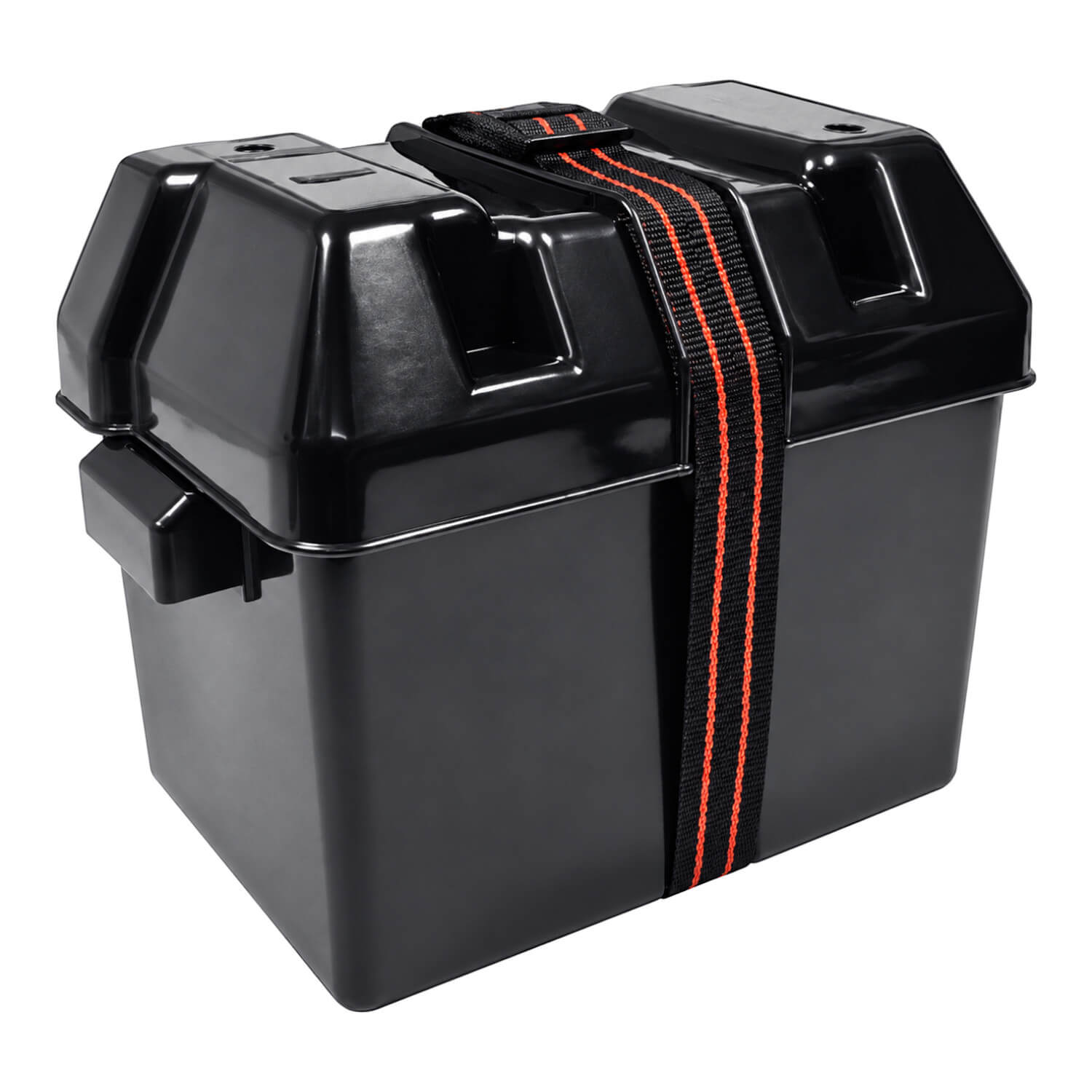

Large Battery Box
House a compatible marine battery in this large vented battery box. Part 229067 is made from black high-density polypropylene that resists battery acid, with a vented lid and carry handles.
The internal space measures 355 x 205 x 220mm, excluding the lid. Compare that space with the battery itself, then check the 420 x 230 x 290mm external dimensions, which include the lid and handles, against the installation area.
A carry strap and mounting hardware are included. The combination of containment, carrying features and mounting components helps you plan a complete battery-box position.
Choose the large box by both internal capacity and external footprint. Allow for the battery terminals and cable routing when assessing the final fit, rather than relying on the size name alone.
Choosing and using this product
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Product details
- Product: Large Battery Box
- Product code: 229067
- Vented black high-density polypropylene marine battery box, resistant to battery acid
- Includes carry handles, vented lid, mounting hardware and carry strap
- External Dimensions (including lid & handles - L x W X H): 420 x 230 x 290mm
- Internal Dimensions (excluding lid - L x W X H): 355 x 205 x 220mm
