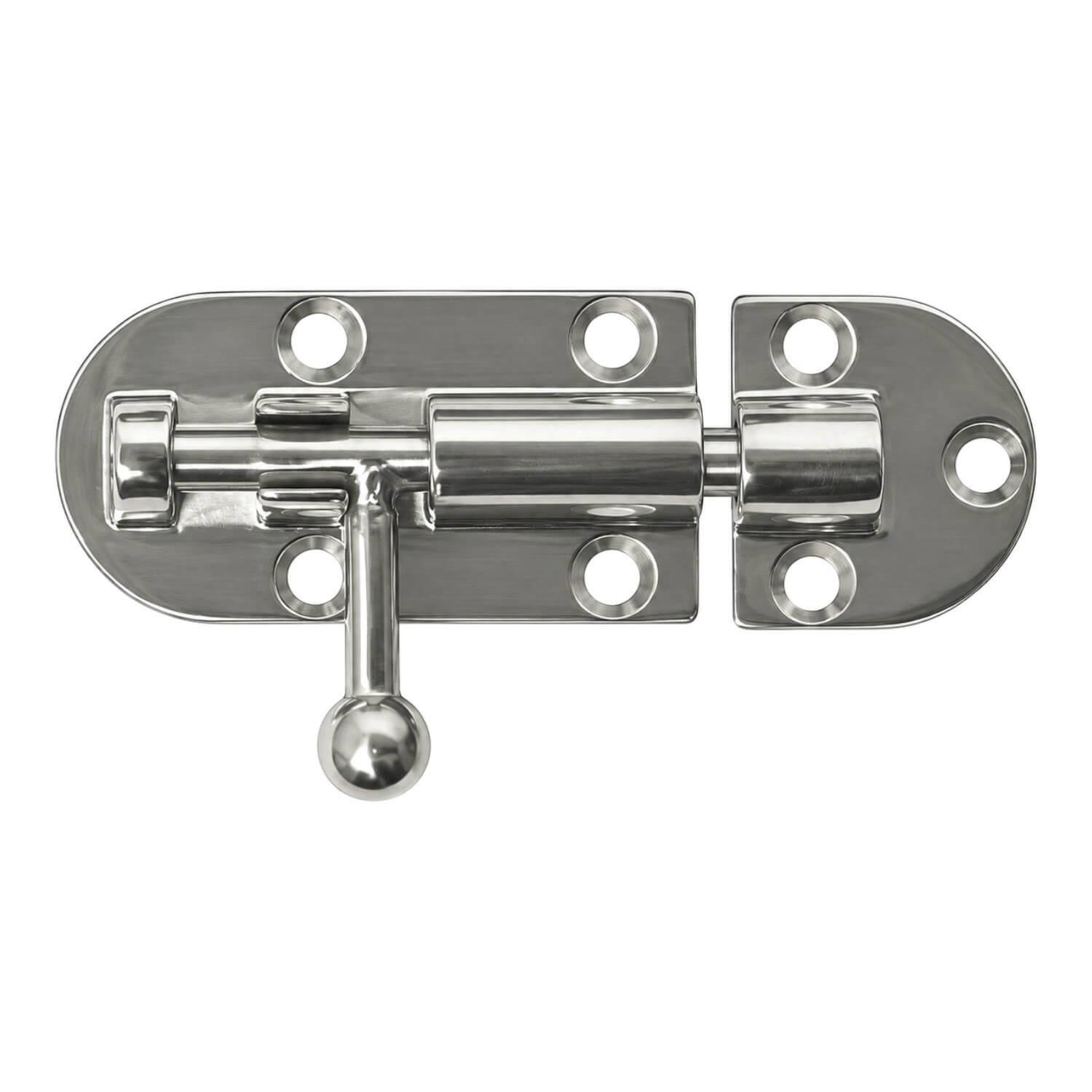

Large Cast Stainless Steel Barrel Bolt 97 x 38mm
Use this 97 x 38mm cast stainless steel barrel bolt for a straightforward sliding-bolt closure. The stated total size helps you match the available mounting area when replacing or laying out a fitting.
Check the relationship between the bolt and its receiving point throughout the closing movement. Both versions in this family specify 6g screws, but their overall footprints differ, so do not select by screw gauge alone.
Code 400206 is the large version. Measure the proposed position and leave room to grip and slide the bolt before finalising the fixing locations.
Choosing and using this product
Keep different thread forms and material grades separated while working. Similar-looking fasteners can become mixed when several fittings are removed at once. Labelling the removed hardware by location provides a useful reference when checking the replacements against the original arrangement.
For repeated workshop jobs, keep unused stock in its labelled packaging. Recording the thread, length, head style and material together makes the next matching purchase easier and reduces the chance of substituting a superficially similar piece from another pack.
Consider future inspection as part of the fitting layout. The fastener and surrounding surface should remain accessible wherever practical, particularly on components that are removed for service. Follow the equipment guidance for tightening and any required locking method; neither is established by the pack size.
Plan tool access with the surrounding equipment in place. There may be adequate room to insert a fastener but limited space to hold the opposite end or operate the required tool. Checking both sides first helps make the installation practical to assemble and inspect.
Before assembly, inspect the receiving thread or hole and the supporting material. A new fastener cannot correct a damaged mating thread or an enlarged mounting hole. Establish the condition of those parts before deciding whether the job is a straightforward replacement or requires further repair.
Product details
- Cast stainless steel barrel bolt.
- Total size 97 x 38mm.
- Screw size 6g.
- Product code: 400206
