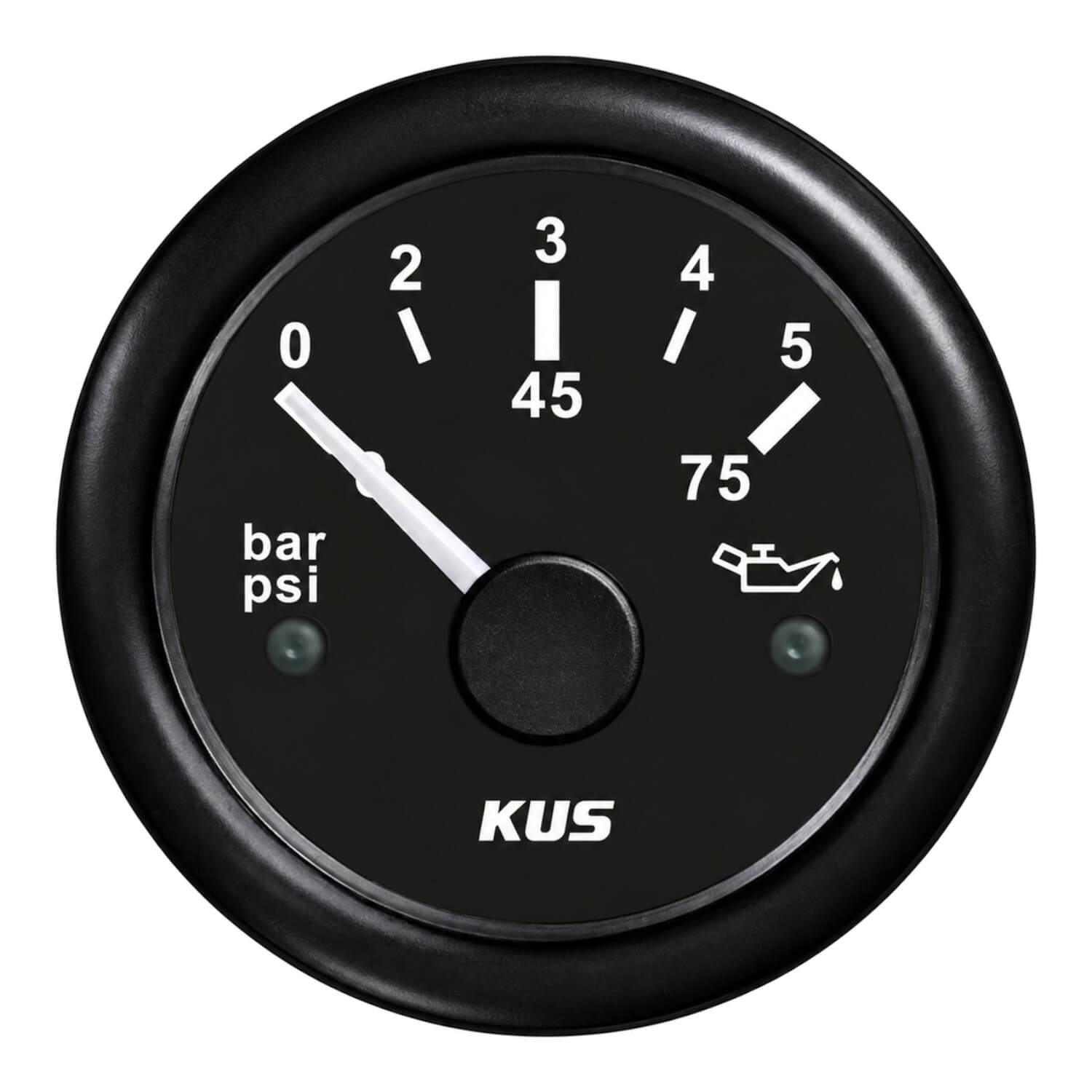

KUS Oil Pressure Gauge - Black - 52mm
Monitor engine oil pressure from a dedicated dashboard instrument with the KUS Oil Pressure Gauge - Black - 52mm. A pressure gauge makes the engine’s oil-pressure reading available at the helm. Match the sender to the gauge’s pressure scale and electrical requirements before installation.
This black 52 mm version lets you coordinate the instrument with the surrounding panel and neighbouring gauges. Check the mounting drawing for the required opening and rear clearance; the stated gauge dimension should not be assumed to be a complete installation drawing.
The specified 240-33 ohm signal is an essential selection detail. Compare it with the sender already fitted or the sender you plan to order. Similar-looking gauges can use different resistance ranges, so check the electrical specification before choosing a matching colour or panel size.
Choosing and using this product
Keep the gauge and sender model references together in the boat’s records. This helps avoid mismatching a later replacement with a different signalling range. Where the listing is an accessory or service part, confirm the parent instrument that it is intended to support.
Check the dashboard cut-out and the available depth behind it separately from the face diameter. Wiring connections and any retaining hardware need room as well. For a replacement, measure the actual opening rather than assuming instruments with similar faces use identical mounts.
Plan the installation using the instrument and sender instructions, including any calibration or setup required for the model. Keep the wiring identifiable and accessible for later inspection. Check the completed system with the associated equipment before relying on the display.
For this version, colour: Black. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Product details
- Product code: 204150
- Oil Pressure Gauge
- Colour: Black
- Display: 0-5 Bar
- Input signal: 240-33 ohm
- Voltage: 12/24V
- Dimension: 52mm
