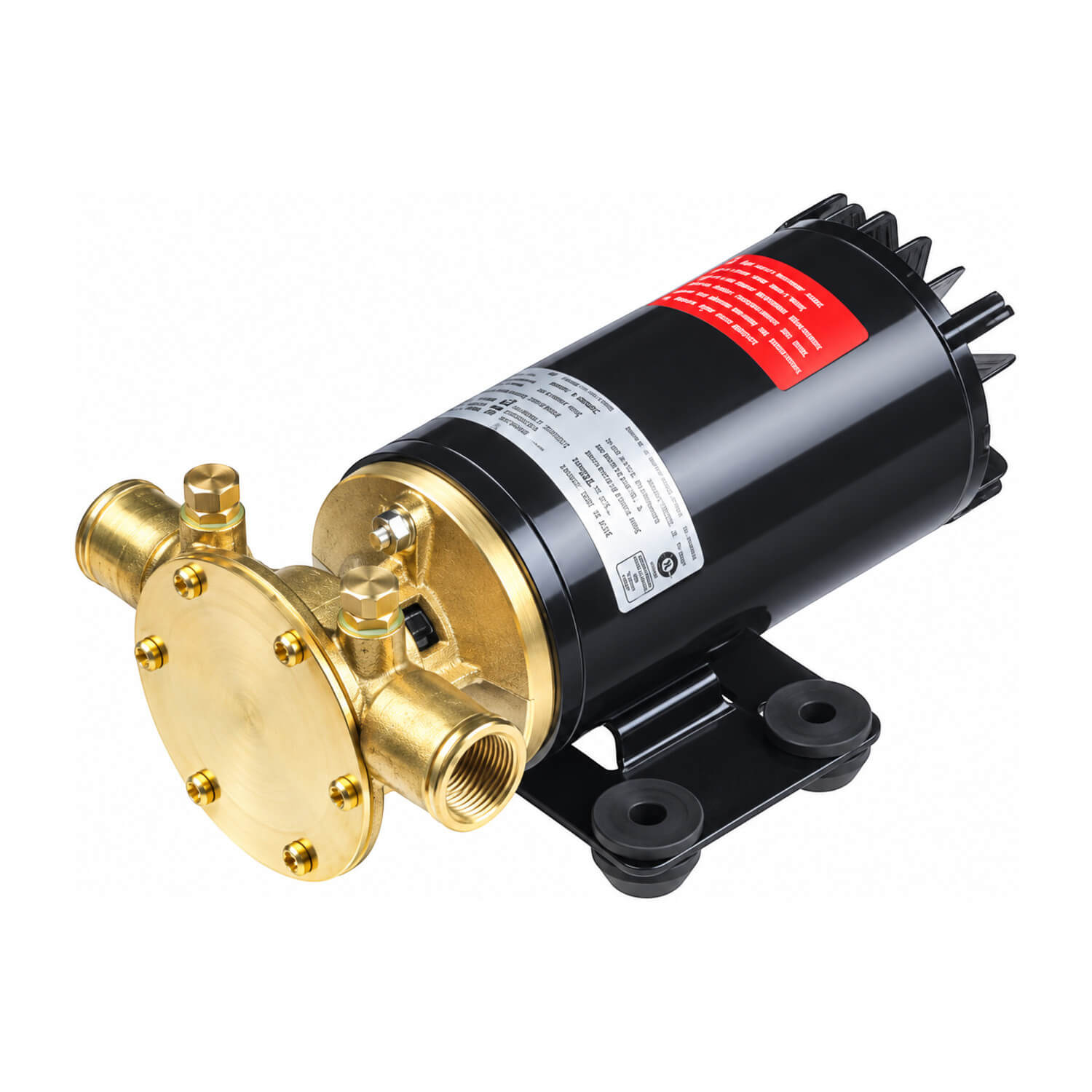

Johnson F4B-12 Ultra Ballast Pump - 24v
Match your marine pumping application to the F4B-12 Ultra Ballast. Product 10-24690-02 is the 24 V version, with its own current and fuse requirements.
The reversible design fills a ballast tank and drains it when rotation is reversed. It handles fresh water or sea water and includes thermal-overload protection for the motor.
This pump is for water handling only. Avoid extended dry running, and choose a compatible polarity-reversing switch arrangement separately where required.
The bronze body and lip seal are paired with the specified impeller reference. Match that exact reference for servicing instead of assuming that all flexible impellers in the range are interchangeable.
Check both the available mounting space and the route into each port. Leave sufficient access to the pump head and service parts, and match the complete electrical or mechanical drive arrangement before installation.
Choosing and using this product
A flow figure alone does not describe the complete installation. Hose routing, outlet height and the rest of the plumbing can affect the delivered result. Use the relevant pump guidance when sizing the system rather than treating a catalogue flow figure as a guaranteed output at every outlet.
Compare the package contents with the complete installation you are planning. Pump-only listings and kits can differ in switches, fittings and hoses. Listing the required components before ordering helps you select the appropriate package and avoids treating an illustrated accessory as an included part.
For a service part, identify the existing pump model before ordering. A motor cartridge, switch, strainer or valve renews only its stated part of the assembly. Check adjacent hoses and connections at the same time so an unrelated problem is not mistaken for a failed replacement component.
Product details
- Capacity: 51Lpm
- Dimensions: 202mm long x 120mm wide x 90mm high
- Voltage: 24v
- Amp Draw: 9A
- Fuse Size: 15A
- Body: Bronze
- Impeller: 09-824P-2
- Seal: Lip Seal
- Connection: Hose 1” / 1/2” BSP
- Product code: 10-24690-02
