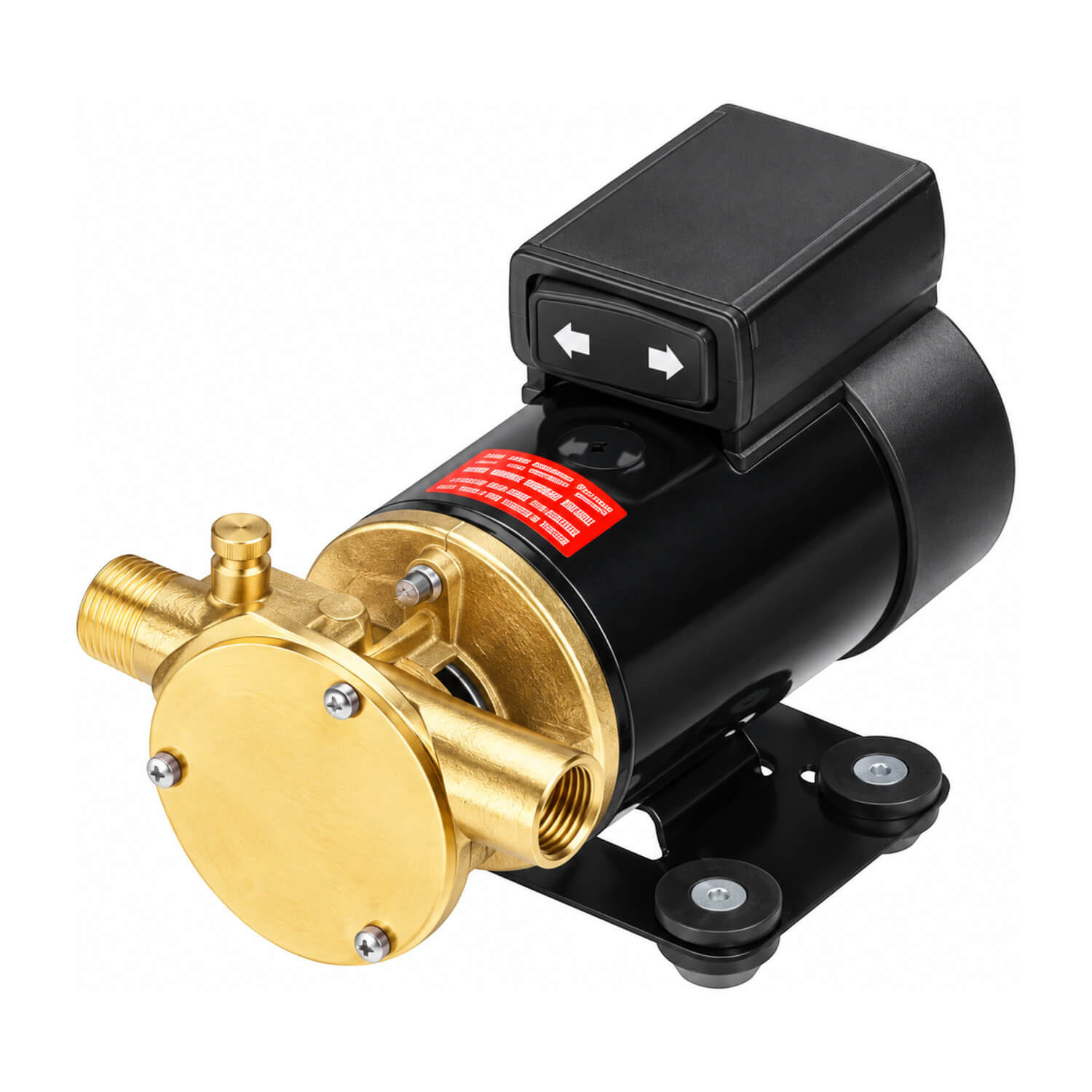

Johnson F3B-19 Oil Change Pump - 24v
Match your marine pumping application to the F3B-19 Oil Change. Product 10-24760-02 is the 24 V version, with its own current and fuse requirements.
The reversible rubber-impeller design has an integrated quick-reversing switch. It is designed to remove old engine oil and pump fresh oil back into the engine, bringing both directions of the oil-change task into one pump.
A bronze body, lip seal and specified 09-843S-9 impeller identify the pump construction and service reference. Match the 3/8-inch BSP connection and electrical supply before planning the oil-transfer setup.
Check both the available mounting space and the route into each port. Leave sufficient access to the pump head and service parts, and match the complete electrical or mechanical drive arrangement before installation.
Choosing and using this product
A flow figure alone does not describe the complete installation. Hose routing, outlet height and the rest of the plumbing can affect the delivered result. Use the relevant pump guidance when sizing the system rather than treating a catalogue flow figure as a guaranteed output at every outlet.
For this version, connection: 3/8” BSP. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Compare the package contents with the complete installation you are planning. Pump-only listings and kits can differ in switches, fittings and hoses. Listing the required components before ordering helps you select the appropriate package and avoids treating an illustrated accessory as an included part.
Allow practical access for inspection and servicing when deciding where the equipment will sit. Check the electrical and plumbing connections against the product instructions, and verify the finished system under its intended operating conditions. Keep the model reference accessible for later maintenance.
Product details
- Capacity: 21Lpm
- Dimensions: 170mm long x 113mm wide x 115mm high
- Voltage: 24v
- Amp Draw: 7.68A
- Fuse Size: 10A
- Body: Bronze
- Impeller: 09-843S-9
- Seal: Lip Seal
- Connection: 3/8” BSP
- Product code: 10-24760-02
