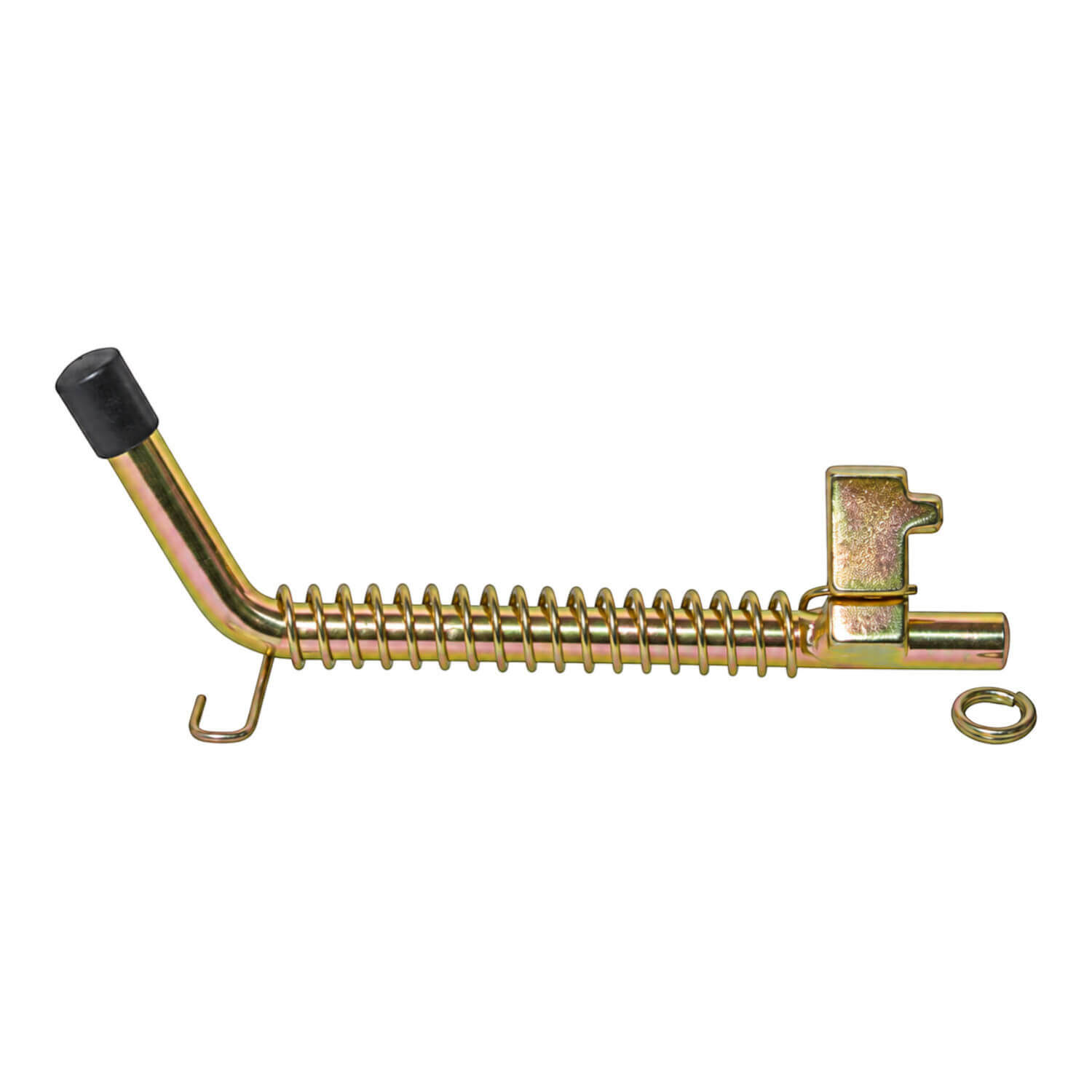

Jarrett Winch Pawl Assembly Kit
Service the pawl assembly on the specified Jarrett hand winch range with kit 817326, identified as assembly 21A. Fitment includes 1:1, 3:1 and 5:1 winches, plus newer two-speed and three-speed versions.
The newer-model qualification matters when working on a two-speed or three-speed winch. Compare the original assembly and identify the winch generation before ordering. A matching gear ratio alone does not confirm that an older multi-speed unit uses this pawl kit.
Choosing and using this product
This is a targeted replacement purchase, so keep the parent equipment reference beside the part number while checking the order. If several similar assemblies are fitted aboard, identify the relevant position as well. That distinction helps ensure the part is ordered for the equipment actually being serviced.
Use the rating and operating instructions for this winch when assessing the complete loading arrangement. Winching capacity is a different specification from a lifting rating, and the condition and geometry of the trailer affect the task the winch must perform.
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Product details
- Pawl assembly kit (21A) for Jarrett 1:1, 3:1 and 5:1 winches and newer 2-speed and 3-speed winches.
- Product code: 817326
