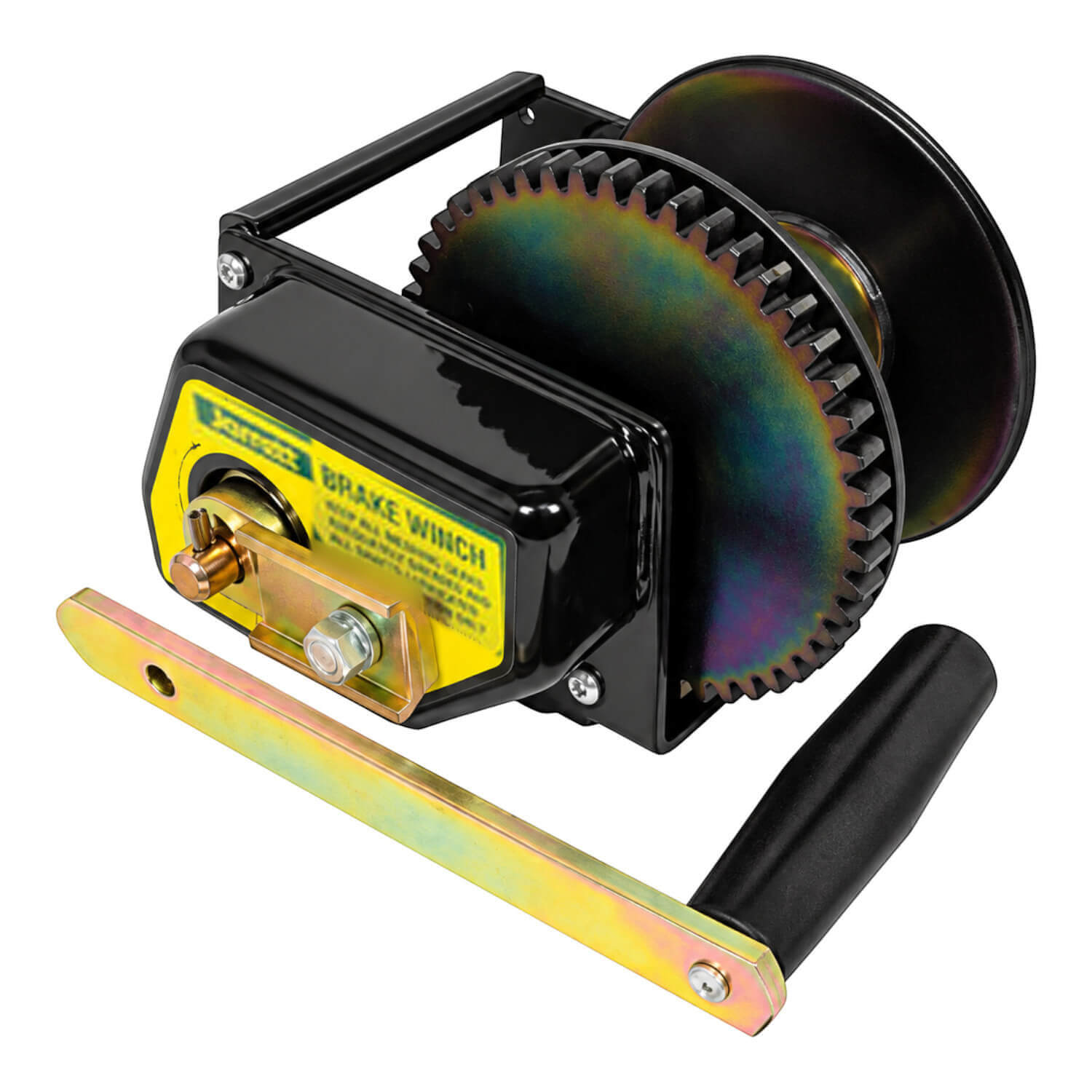

Jarrett 5:1 Brake Winch 300kg No Cable
Choose controlled load handling with the Jarrett 5:1 brake winch, specified with a 300kg lift capacity. This version is supplied as no cable, so the line configuration is clear when planning the installation.
A self-actuating automatic brake mechanism is the defining feature of this range. It is designed to hold the load during suspension and provide smooth, jerk-free lowering. Carbon copper fibre brake pads form part of that braking system, distinguishing the brake winch from an ordinary trailer hand winch.
The ratio and lifting capacity should be considered together when choosing the mechanism for the task. Confirm the supporting structure, line arrangement and attachment equipment against the installation requirements. The rating belongs to the specified brake winch and should not be transferred to other winches in the same category.
This no-cable model requires a suitable pulling-line arrangement to be selected separately before use. It is useful when the mechanism is required without a supplied cable, but should not be treated as a complete cable-and-hook package.
Keep the brake mechanism and associated components maintained according to the winch instructions. Select replacement parts by model and function; the brake-winch handle and clutch pads are separate service items within the range.
Choosing and using this product
This is a targeted replacement purchase, so keep the parent equipment reference beside the part number while checking the order. If several similar assemblies are fitted aboard, identify the relevant position as well. That distinction helps ensure the part is ordered for the equipment actually being serviced.
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Product details
- Jarrett brake winch with 5:1 ratio and 300kg lift capacity.
- Supplied configuration: No Cable.
- Self-actuating automatic brake mechanism for suspension of loads and jerk-free lowering.
- Carbon copper fibre brake pads.
- Product code: 810341
