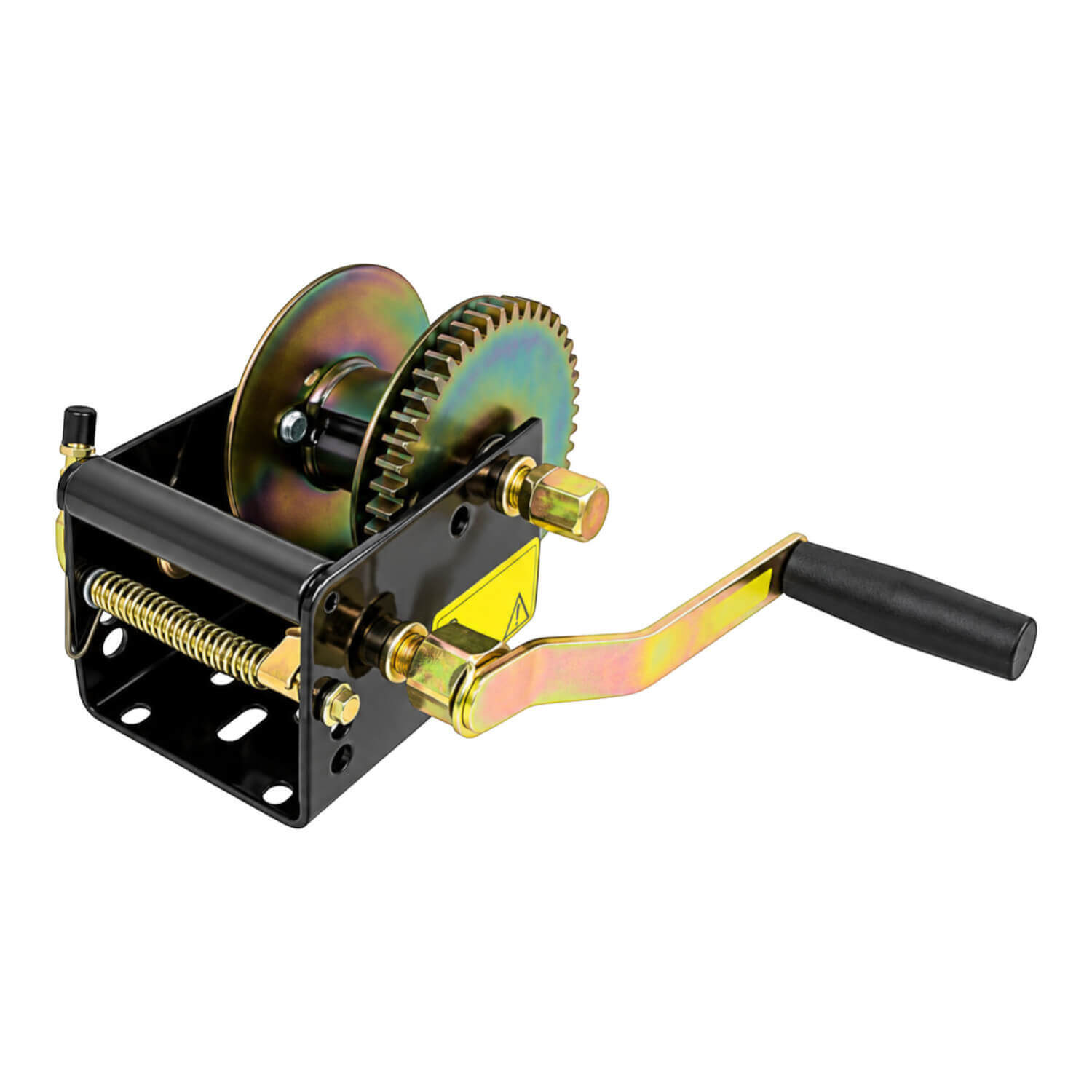

Jarrett 5:1:1 2 Speed Hand Winch No Cable
Equip a suitable trailer with the Jarrett 5:1:1 2 speed hand winch in this specific no cable configuration. Its stated winching capacity is 700kg, and the range is intended for medium boats and general winching. Matching the ratio and supplied line arrangement makes it easier to select the right version for your boat-loading setup.
This is the no-cable version. It allows the winch mechanism to be selected separately from the pulling line, which is useful when the installation requires a particular compatible cable or strap arrangement. Plan that component before installation rather than expecting a ready-fitted line and hook.
The two-speed design combines the stated geared ratio with a 1:1 direct-winding option. A removable hex-drive handle lets you select the appropriate drive position. The direct option is part of the operating flexibility of this model, rather than a separate electric drive or motor accessory.
Before replacing an existing winch, compare the mounting arrangement, handle clearance and pulling-line path. A stated winching capacity is not the same specification as a boat’s total weight, and it does not establish a lifting rating. Select the complete installation for the intended loading task rather than using the model name alone.
Choosing and using this product
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Product details
- Jarrett hand winch.
- Ratio/speeds: 5:1:1 2 Speed.
- Winching capacity: 700kg.
- Removable hex-drive handle for quick 1:1 direct winching.
- Suits medium boats and general winching.
- Supplied configuration: No Cable.
- Product code: 810218
