Jarrett 3:1 Winch 14-Tooth Pinion Gear and Handle Assembly Replacement
Match a 3:1 Jarrett winch repair to the correct gearing with this 14-tooth pinion gear and handle assembly. The specified tooth count distinguishes it from the 10-tooth assembly used on the 5:1 version.
Confirm the existing winch ratio and compare the gear and handle arrangement before replacement. The combined assembly keeps the repair focused on these components. It is not a gear-ratio conversion kit, and should not be substituted simply because another Jarrett assembly looks similar.
Choosing and using this product
This is a targeted replacement purchase, so keep the parent equipment reference beside the part number while checking the order. If several similar assemblies are fitted aboard, identify the relevant position as well. That distinction helps ensure the part is ordered for the equipment actually being serviced.
Use the rating and operating instructions for this winch when assessing the complete loading arrangement. Winching capacity is a different specification from a lifting rating, and the condition and geometry of the trailer affect the task the winch must perform.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Record the model and supplied line configuration with the trailer details. When servicing an older installation, identify the actual gear or handle arrangement before buying a part that shares a similar general description.
Product details

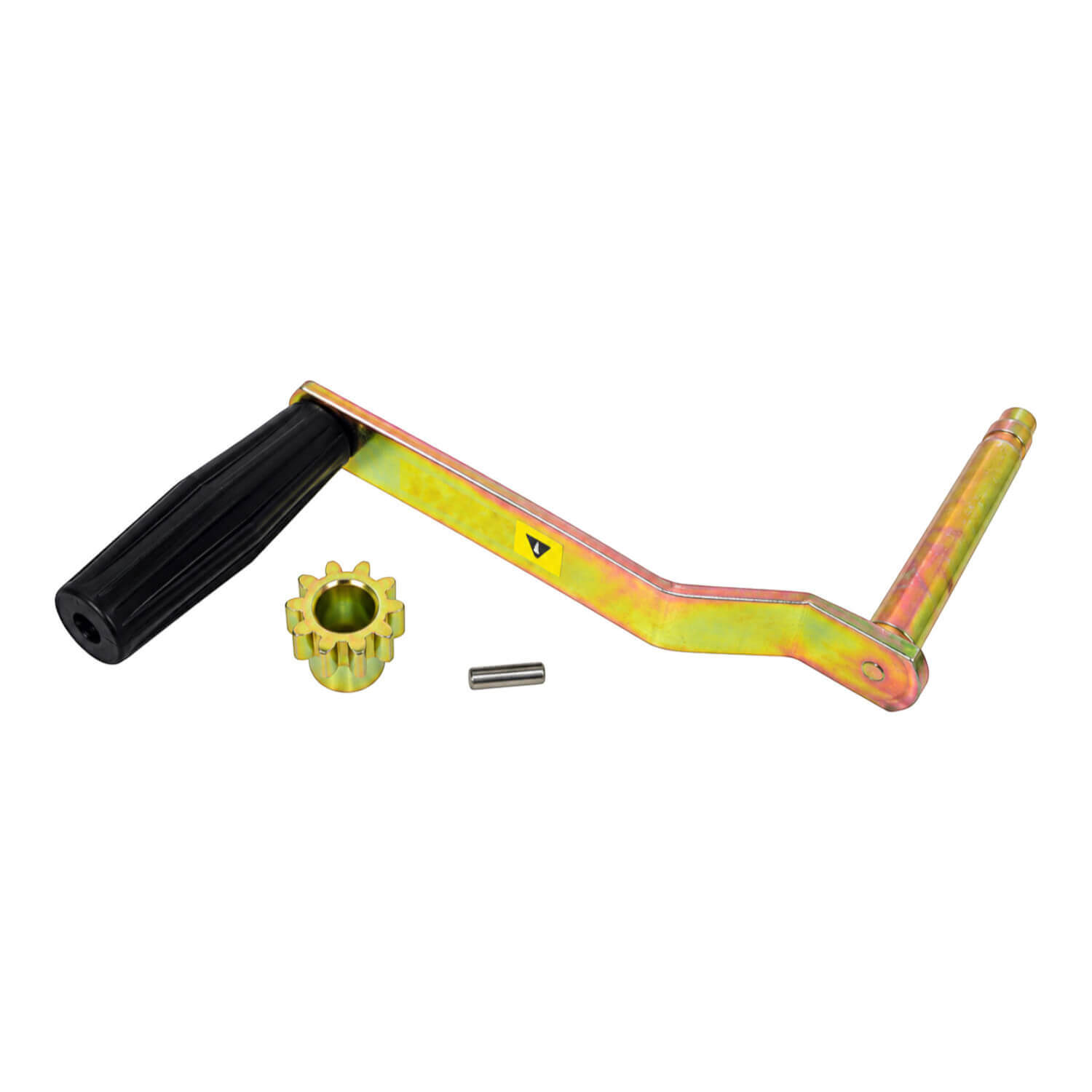

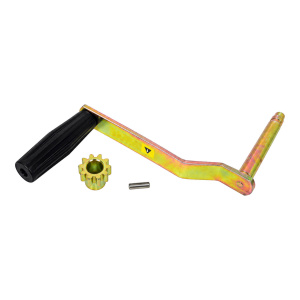

- 14-tooth pinion gear and handle assembly for 3:1 Jarrett winches.
- Product code: 817210
