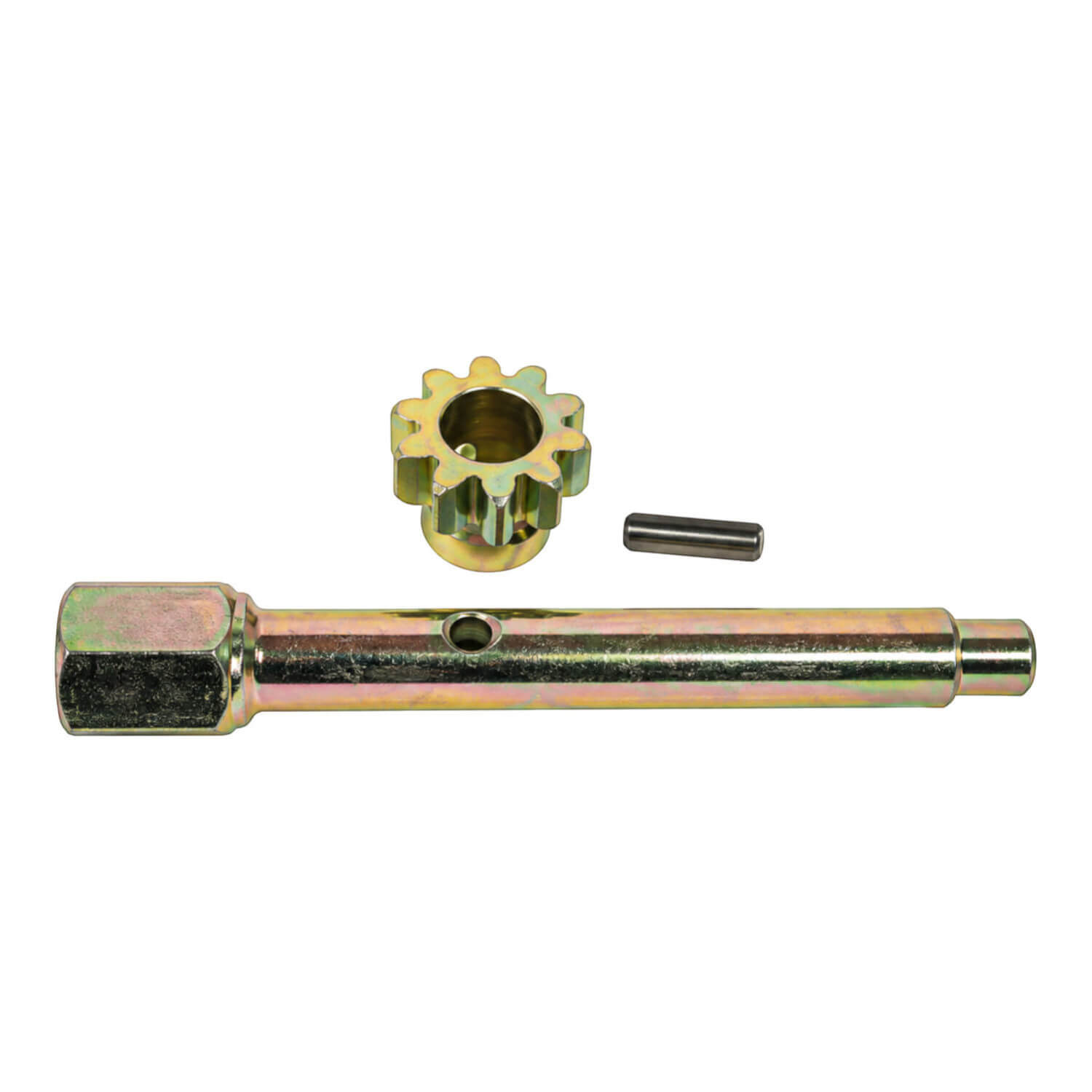

Jarrett 2 and 3 Speed Winch 10-Tooth Pinion Gear and Shaft Assembly
Select this 10-tooth pinion gear and shaft assembly for the specified Jarrett multi-speed winches. Fitment covers the 5:1:1 two-speed and 10:5:1 three-speed models.
This assembly includes the gear-and-shaft component arrangement rather than the gear-and-handle format used on other models. Confirm the ratio and compare the original shaft position when identifying the repair. It should not be confused with the separate intermediate pinion assembly for the three-speed winch.
Choosing and using this product
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Record the model and supplied line configuration with the trailer details. When servicing an older installation, identify the actual gear or handle arrangement before buying a part that shares a similar general description.
Use the rating and operating instructions for this winch when assessing the complete loading arrangement. Winching capacity is a different specification from a lifting rating, and the condition and geometry of the trailer affect the task the winch must perform.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Product details
- 10-tooth pinion gear and shaft assembly for Jarrett 5:1:1 2-speed and 10:5:1 3-speed winches.
- Product code: 817424
