Jarrett 10:5:1 Winch Intermediate Pinion Gear and Shaft Assembly

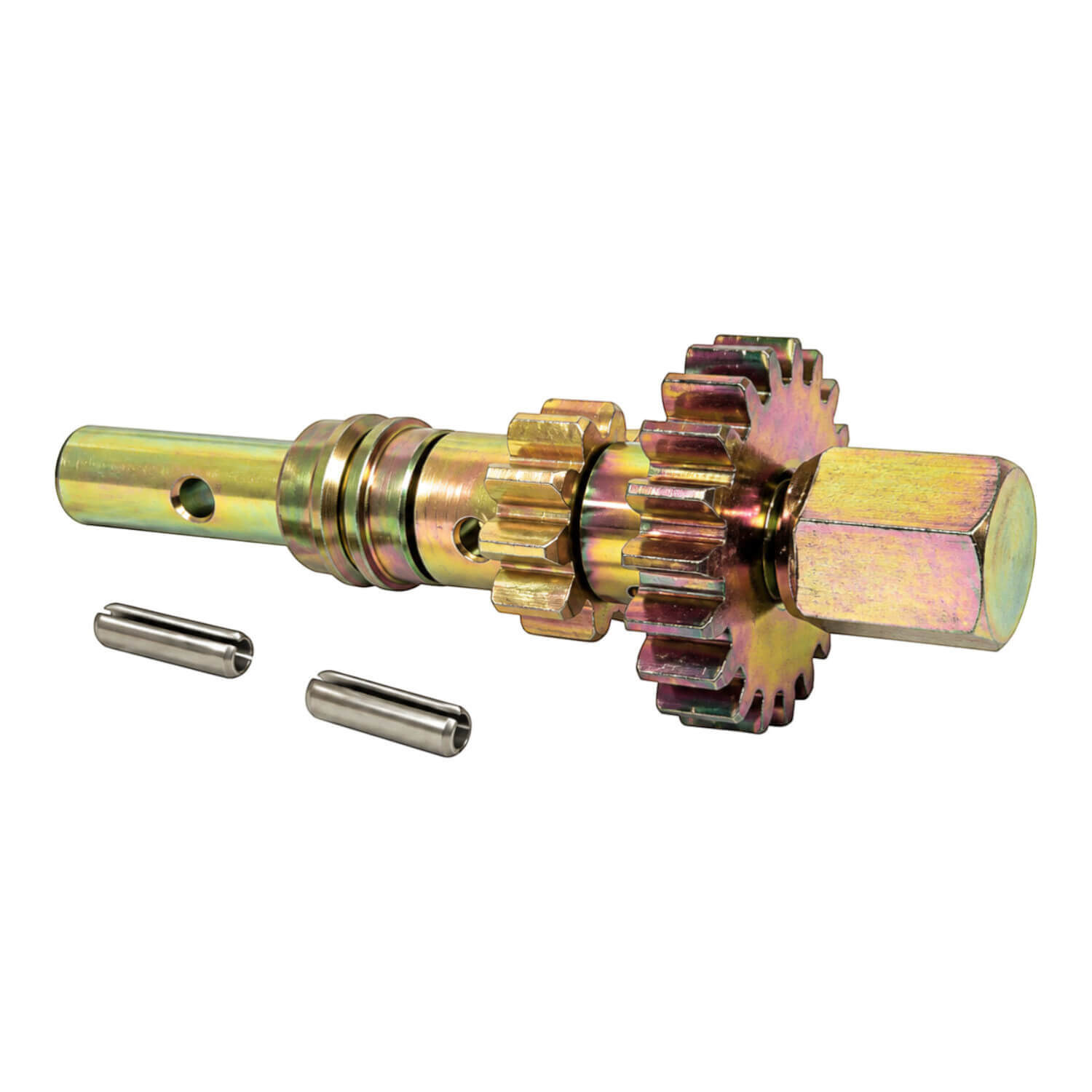

Replace the intermediate pinion gear and shaft assembly on a Jarrett 10:5:1 three-speed winch with part 817507. The intermediate position identifies which part of the gear train this assembly serves.
A three-speed winch has more than one gear component, so identifying the failed assembly matters. Match the intermediate gear and shaft to the existing mechanism rather than selecting a primary pinion by appearance. No fitment to the 5:1:1 two-speed model is stated for this part.
Choosing and using this product
Record the model and supplied line configuration with the trailer details. When servicing an older installation, identify the actual gear or handle arrangement before buying a part that shares a similar general description.
Use the rating and operating instructions for this winch when assessing the complete loading arrangement. Winching capacity is a different specification from a lifting rating, and the condition and geometry of the trailer affect the task the winch must perform.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Product details
- Intermediate pinion gear and shaft assembly for Jarrett 10:5:1 3-speed winches.
- Product code: 817507
