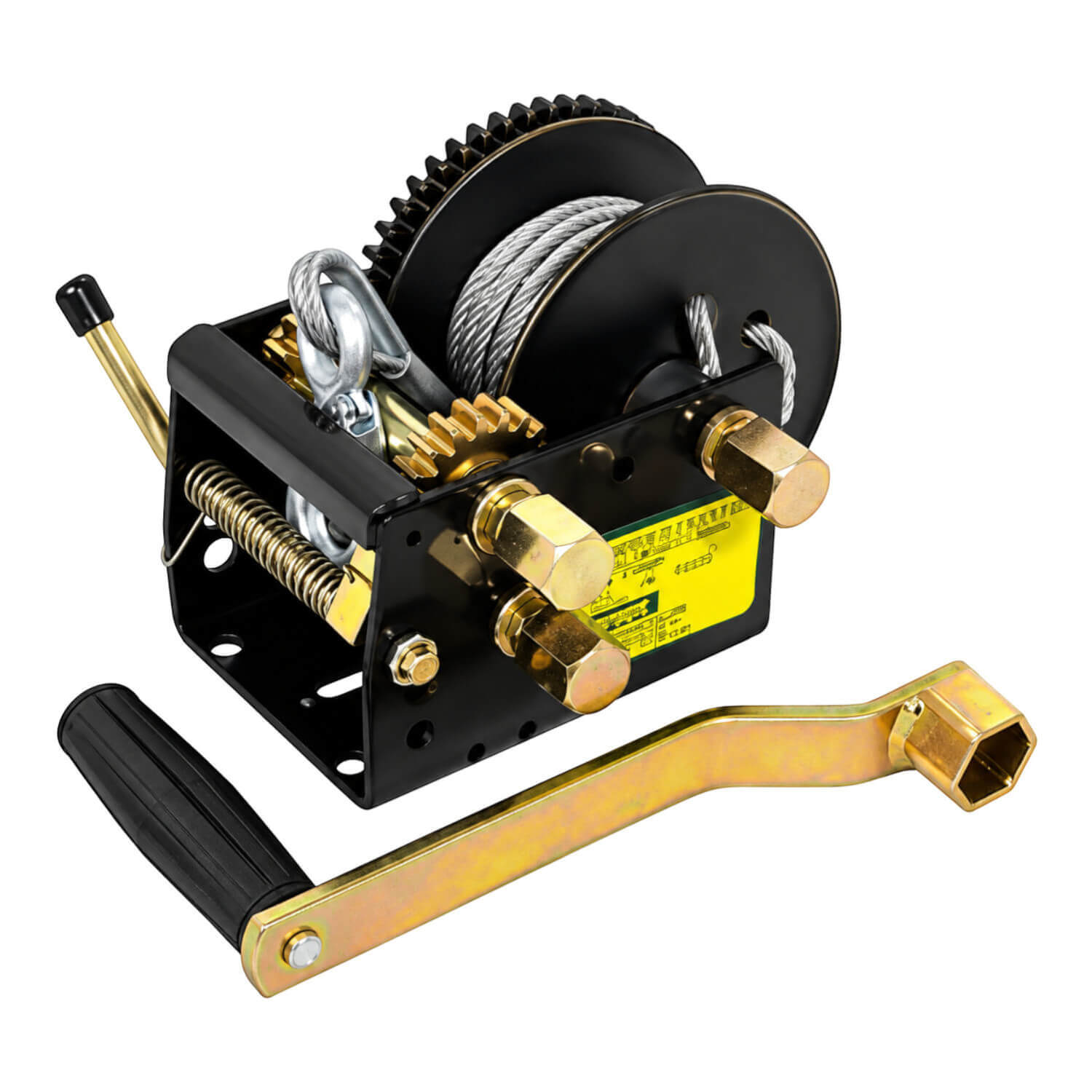

Jarrett 10:5:1 3 Speed Hand Winch 7.5m x 6mm Wire Cable with Snap Hook
Equip a suitable trailer with the Jarrett 10:5:1 3 speed hand winch in this specific 7.5m x 6mm wire cable with snap hook configuration. Its stated winching capacity is 800-1000kg, and the range is intended for large boats and general winching. Matching the ratio and supplied line arrangement makes it easier to select the right version for your boat-loading setup.
The supplied 7.5m x 6mm wire cable with snap hook identifies both the reach and the connection format of this version. Compare the cable diameter with the intended winch arrangement and check that its length suits the retrieval path. Keep the hook type in mind when matching the boat attachment point.
The 10:5:1 arrangement offers three winding ratios. Its removable hex-drive handle allows ratio changes, giving the operator a choice within the same winch mechanism. The heavy-duty description belongs to this model; the stated 800-1000kg capacity remains the figure to check against the required task.
Before replacing an existing winch, compare the mounting arrangement, handle clearance and pulling-line path. A stated winching capacity is not the same specification as a boat’s total weight, and it does not establish a lifting rating. Select the complete installation for the intended loading task rather than using the model name alone.
Choosing and using this product
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Product details
- Jarrett hand winch.
- Ratio/speeds: 10:5:1 3 Speed.
- Winching capacity: 800-1000kg.
- Heavy-duty winch for large boats and general winching.
- Removable hex-drive handle for quick ratio changes.
- Supplied configuration: 7.5m x 6mm Wire Cable with Snap Hook.
- Product code: 810953
