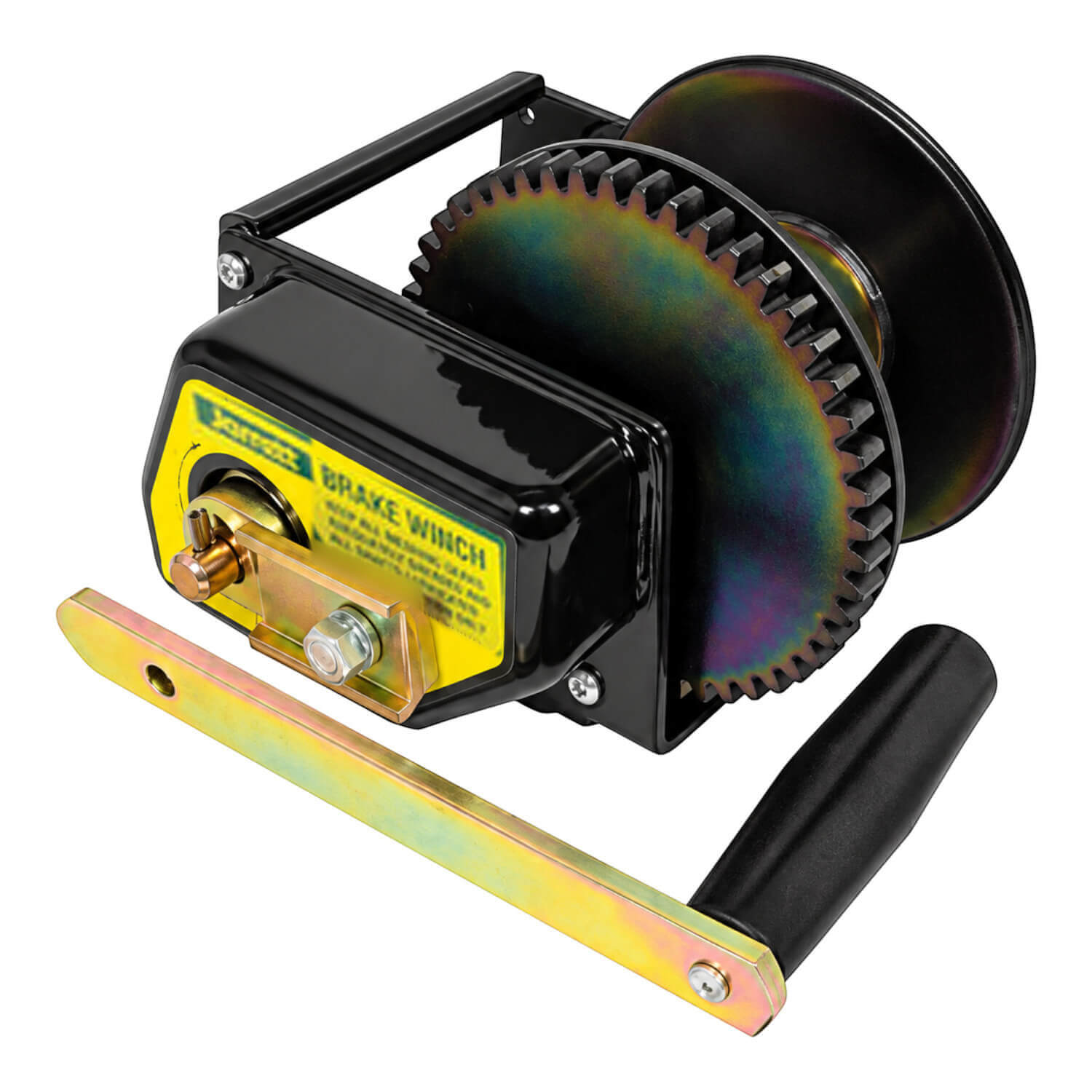

Jarrett 10:1 Brake Winch 500kg No Cable
Choose controlled load handling with the Jarrett 10:1 brake winch, specified with a 500kg lift capacity. This version is supplied as no cable, so the line configuration is clear when planning the installation.
A self-actuating automatic brake mechanism is the defining feature of this range. It is designed to hold the load during suspension and provide smooth, jerk-free lowering. Carbon copper fibre brake pads form part of that braking system, distinguishing the brake winch from an ordinary trailer hand winch.
The ratio and lifting capacity should be considered together when choosing the mechanism for the task. Confirm the supporting structure, line arrangement and attachment equipment against the installation requirements. The rating belongs to the specified brake winch and should not be transferred to other winches in the same category.
This no-cable model requires a suitable pulling-line arrangement to be selected separately before use. It is useful when the mechanism is required without a supplied cable, but should not be treated as a complete cable-and-hook package.
Keep the brake mechanism and associated components maintained according to the winch instructions. Select replacement parts by model and function; the brake-winch handle and clutch pads are separate service items within the range.
Choosing and using this product
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Product details
- Jarrett brake winch with 10:1 ratio and 500kg lift capacity.
- Supplied configuration: No Cable.
- Self-actuating automatic brake mechanism for suspension of loads and jerk-free lowering.
- Carbon copper fibre brake pads.
- Product code: 810345
