Grey 6 Switch Panel - 120 x 105mm

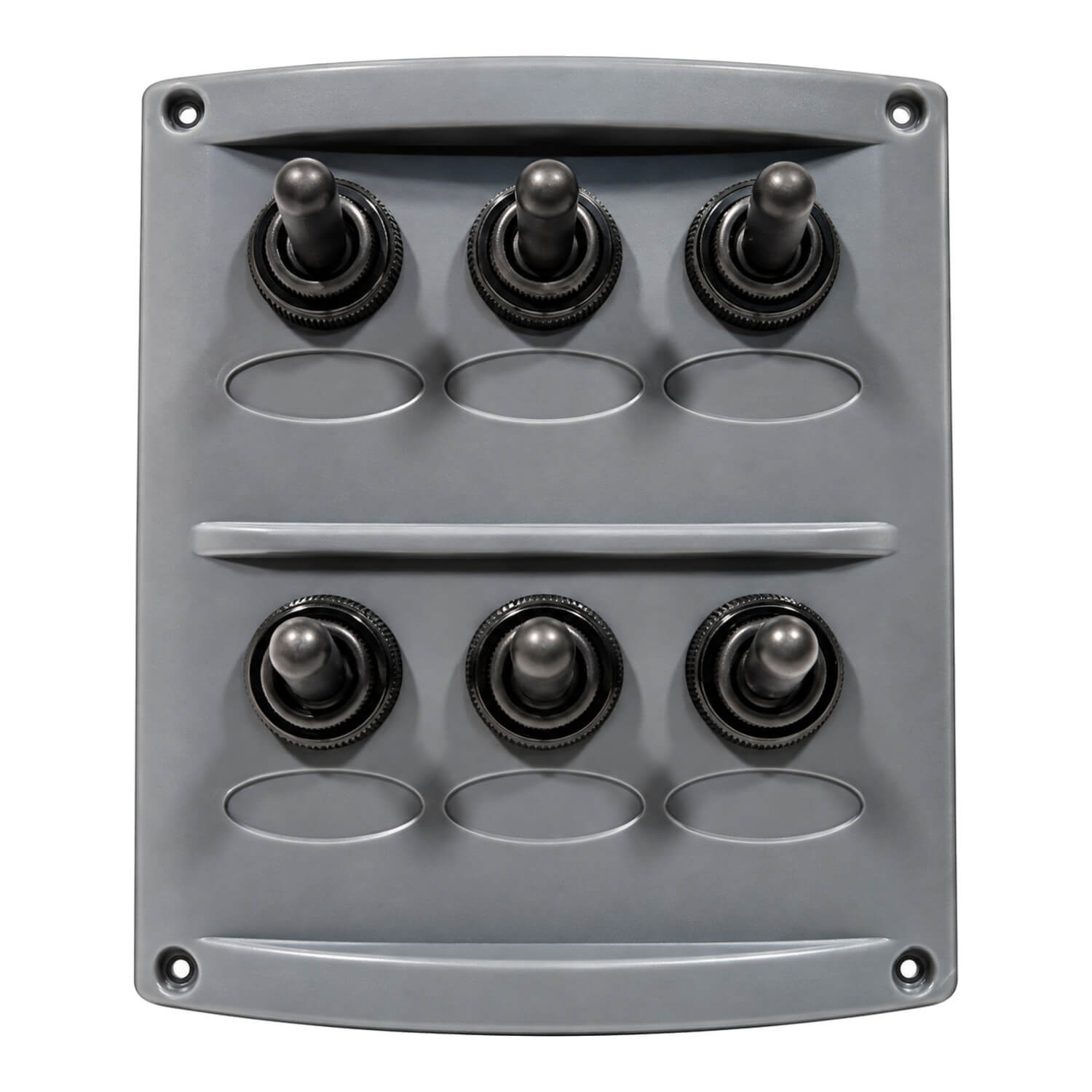

Group 6 controls in a compact grey panel with part 702091. The contoured plastic face measures 120 x 105mm, making this a defined size option for a suitable dash or console position.
The switches are covered by black neoprene rubber boots, and enclosed fuse holders sit behind the panel. This UV-resistant, splash-proof panel is fully wired and supplied with 15A fuses and a label set.
Choose the 6-switch layout to match the circuits you need to control. Allow space behind the visible panel for its fuse holders and wiring, and label each switch to reflect the actual connection. Spare label set 702096 is available for this panel family.
Choosing and using this product
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Product details
- Product: Grey 6 Switch Panel - 120 x 105mm
- Product code: 702091
- UV-resistant, splash-proof contoured plastic panel, fully wired with neoprene switch boots and enclosed weatherproof fuse holders
- Includes 15A fuses and label set
