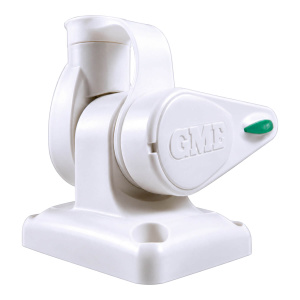

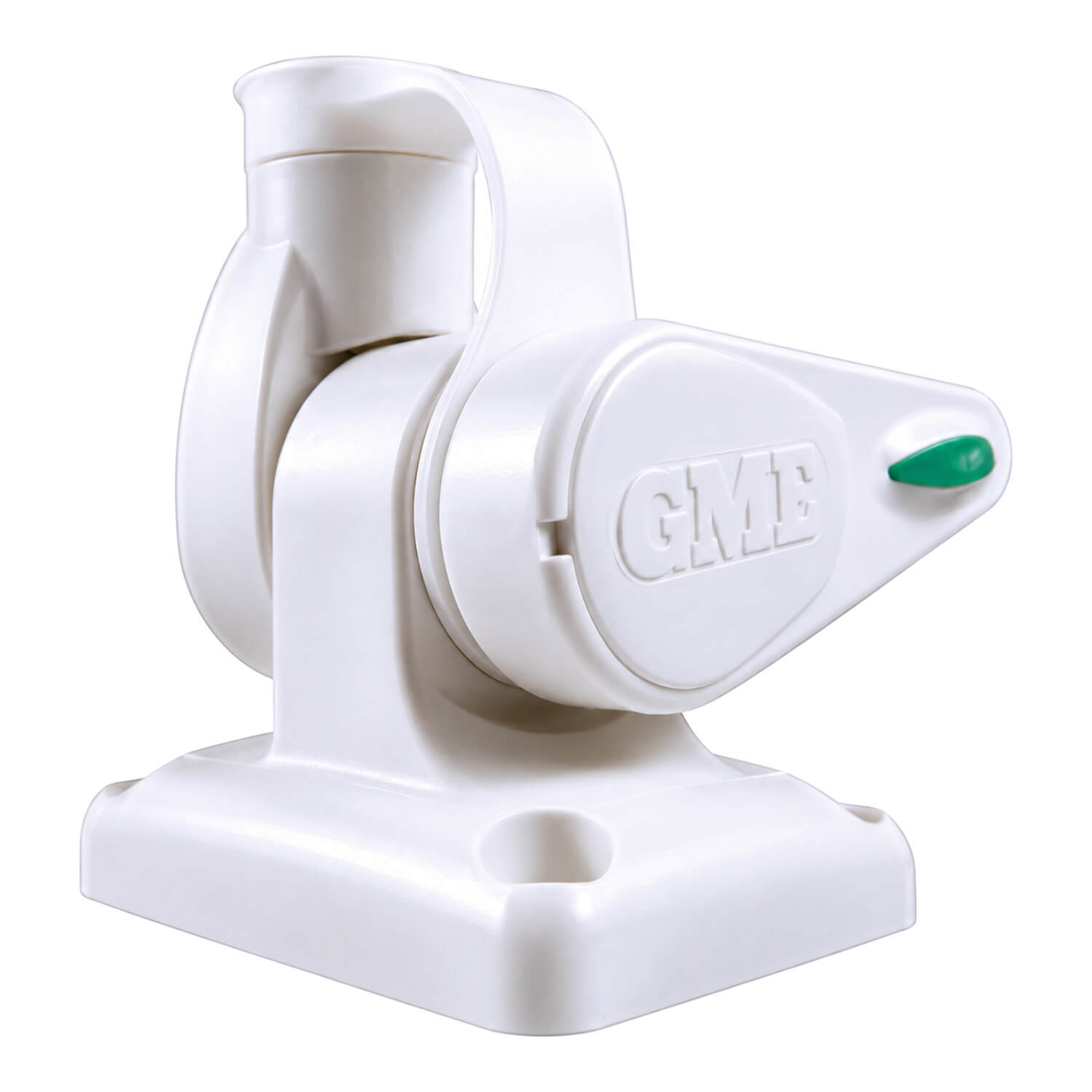

GME ABL013 Single Swivel Antenna Base - White
Fit the white ABL013 base when a single-swivel arrangement suits the antenna position. The integrated PL259 connection keeps the coaxial cable with the base when the whip is removed. Its 68 by 95 mm footprint and supplied five-metre cable provide useful installation checks.
The base supports compatible VHF, 27 MHz, AIS and AM/FM antenna whips, but the electrical band is determined by the selected whip and radio arrangement. A broad list of supported whip families does not mean one whip serves every frequency band. Match the complete antenna system before installation.
Keeping the coaxial cable at the base allows the compatible whip to be installed or removed without taking the cable away with it. The splashproof cap protects the connector when the whip is off. Use the cap and connections according to the installation instructions; splash protection is not a claim that the whole assembly can be submerged.
The five-metre cable length and 68 by 95 mm rectangular footprint help you plan the route and mounting position. Check the physical surface, available swivel movement and clearance around the whip. Route antenna cable with attention to possible interference from nearby electrical equipment, following the radio and antenna guidance.
Choose the ABL013 single-swivel or ABL012 double-swivel format deliberately, then select the white or black finish by the exact product code. These listings are base assemblies rather than complete whip-and-base antenna packages. The modular arrangement is useful when you want a compatible removable whip and a clearly specified mounting base, with the cable and protective cap identified as part of the supplied assembly.
Product details
- Compact configurable swivel base for VHF, 27MHz, AIS and AM/FM antenna whips.
- Integrated PL259 connection keeps coaxial cable attached to the base, allowing quick whip installation or removal.
- Splashproof cap protects the connector with the whip removed.
- Rectangular base: 68 x 95mm.
- Supplied with 5m coaxial cable.
- Single-swivel configuration.
- Colour: White.
