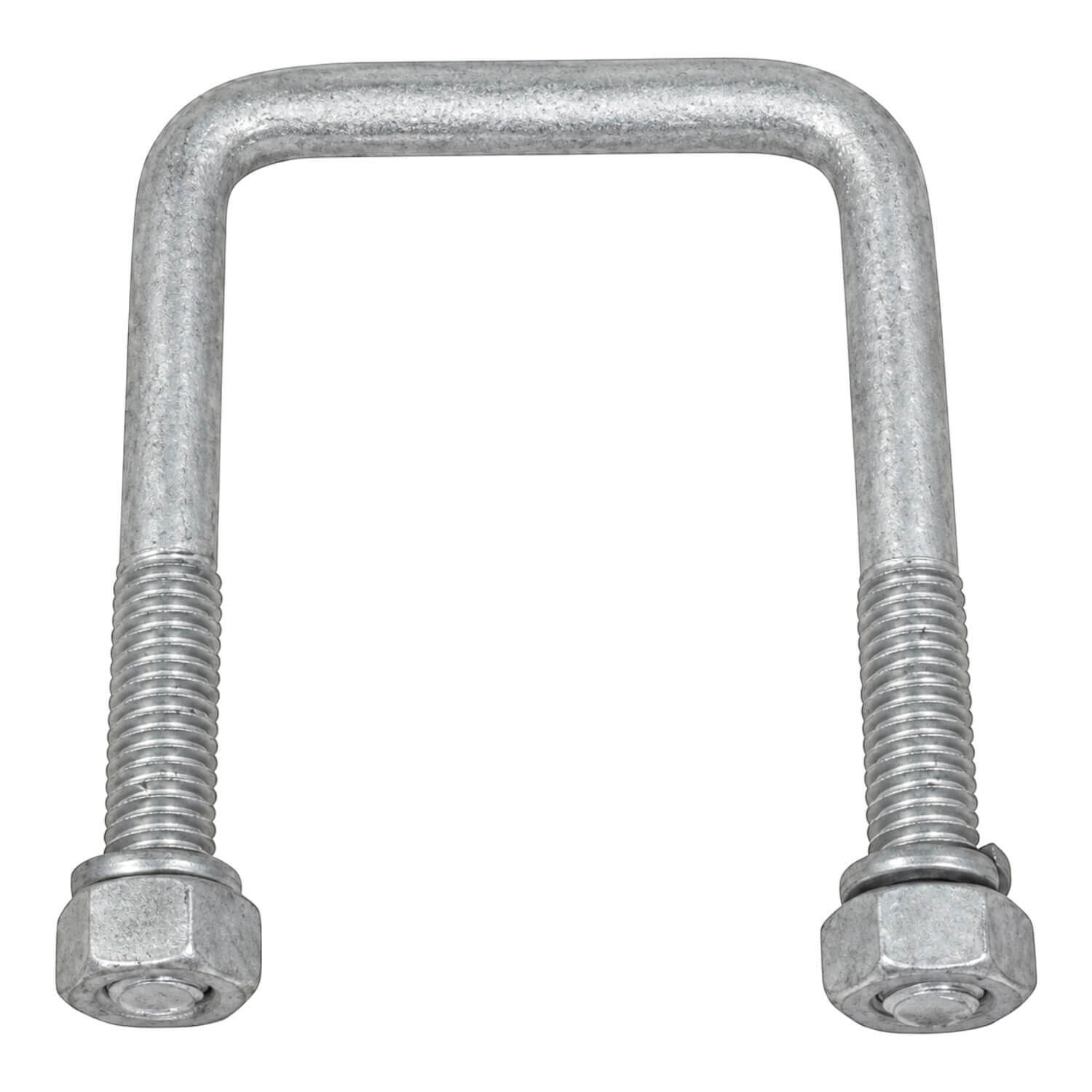

Galvanised Square U-Bolt 12 x 150mm 50mm Width Fasteners Hardware
Match your trailer-frame fixing with this galvanised square U-bolt, using the 12mm rod diameter, 150mm leg-length dimension and 50mm internal width to narrow down the correct size. Product 761447 is the bulk-supply version, complete with hex nuts and washers.
The threaded section is 50mm long. The 65mm L2 measurement identifies the fixing-centre spacing shown for this size, which should be checked against the receiving plate or bracket. Comparing the width, length and thread together is more useful than choosing by rod diameter alone.
Select the required quantity of this bulk item to suit the fastening arrangement. Confirm the square bend profile and all mounting dimensions against the trailer components before fitting. No working load or tightening torque is assigned to this U-bolt in the supplied specifications.
Choosing and using this product
Measure the relevant mounting points and compare all stated dimensions. For rollers, check the bore and pin as well as the outside size. For running gear or mounting hardware, check the listed pattern and assembly details against the existing setup.
Identify the trailer assembly and the exact position being serviced before selecting a replacement. Hub, axle, coupling, spring and roller components each have their own dimensions and mating requirements. A similar overall appearance does not establish that two parts will fit the same trailer.
Use the trailer and component instructions for installation and inspection. Check adjoining parts for wear while the assembly is accessible, and confirm the finished arrangement before returning the trailer to use. A stated load rating is a capacity figure, not the weight of the component.
Product details
- Product code: 761447
- Galvanised Square U-Bolt - 12 x 150mm - 50mm Width - Bulk
- For fixing to box-section trailer frames. Includes hex nuts and washers. Diagram dimensions: D 12mm, L 150mm, L1 (thread length) 50mm, L2 65mm, W 50mm. Bulk supply.
