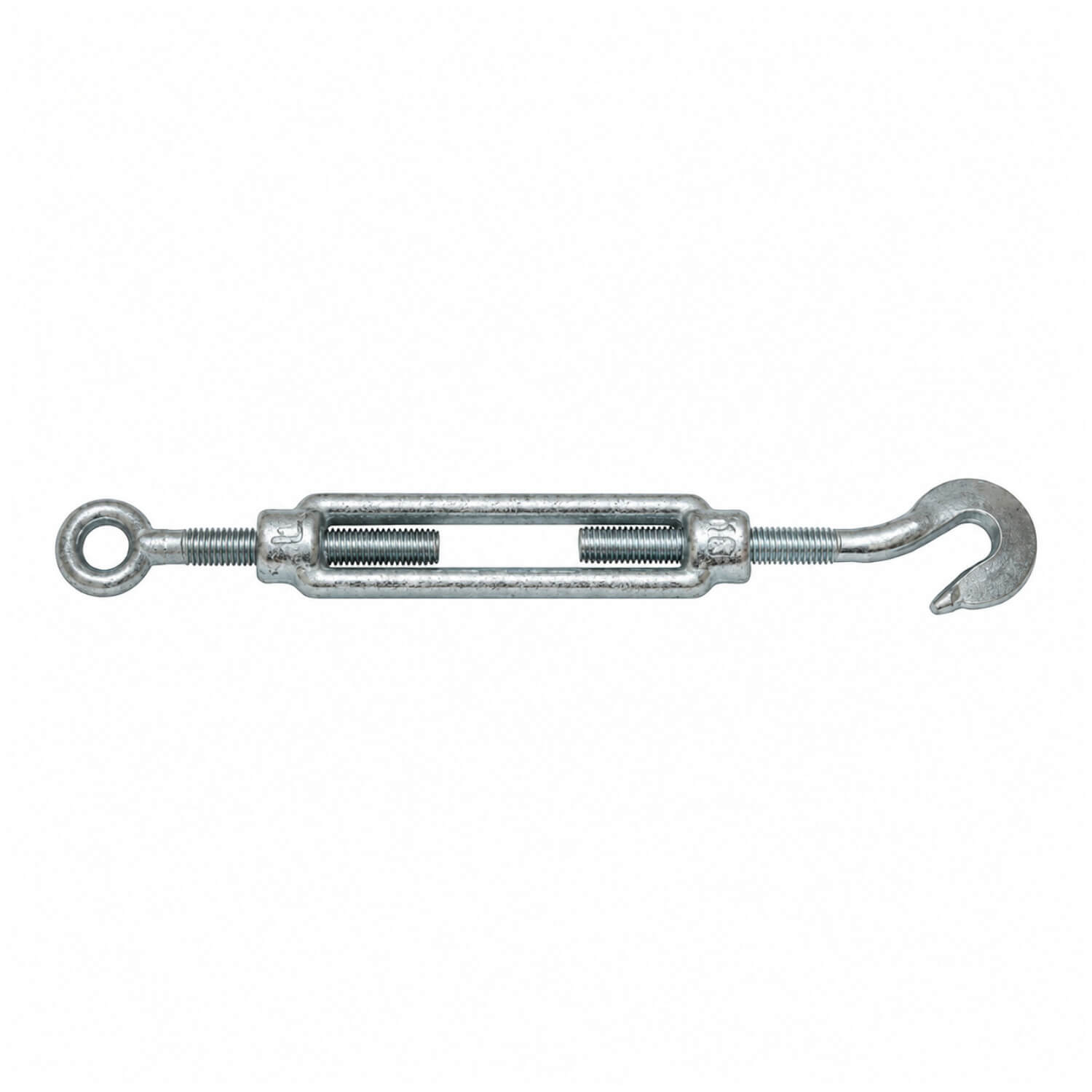

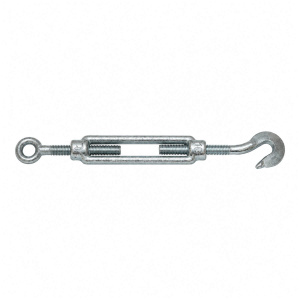

Galvanised Hook and Eye Turnbuckle - 10mm - 3/8"
Adjust a connection using a galvanised turnbuckle with a hook at one end and an eye at the other. The cast frame has a hot-dipped galvanised finish.
This hook-and-eye model is the 10mm - 3/8" version. Compare that size and the end configuration with the connection being adjusted.
Adjustment that belongs in the planning stage
A turnbuckle or rigging screw is useful when the fitted length needs to be adjusted after the end connections have been made. Choosing the correct end style helps the adjuster fit naturally into the assembly. Consider where the body will sit and how it will be accessed for adjustment and subsequent inspection.
Allow for the required adjustment when planning the overall run rather than relying on the fitting to compensate for an incorrectly measured assembly. Where minimum and maximum dimensions are listed, compare them with the intended fitted length and follow the instructions for thread engagement. Keep threads and retaining parts accessible, and inspect the complete connection after adjustment.
Selection details
Choose the stated size and check how both ends will engage with the existing fittings. The hook and eye are different connection types, so allow for their geometry when measuring the assembly. No working-load figure is supplied for this galvanised variant.
When matching existing equipment, keep the exact product code with the dimensions you have checked. Similar-looking fittings can differ in their opening, material section or connection style. Comparing the full specification before ordering makes it easier to select a replacement that fits the arrangement you already have and remains straightforward to maintain.
RHS Boating & Marine supplies this version under product code RWB324D. Use the specifications below to identify the exact size and configuration when ordering for a new assembly, a replacement fitting or planned maintenance.
Specifications
- Product code: RWB324D
- Size: 10mm - 3/8"
