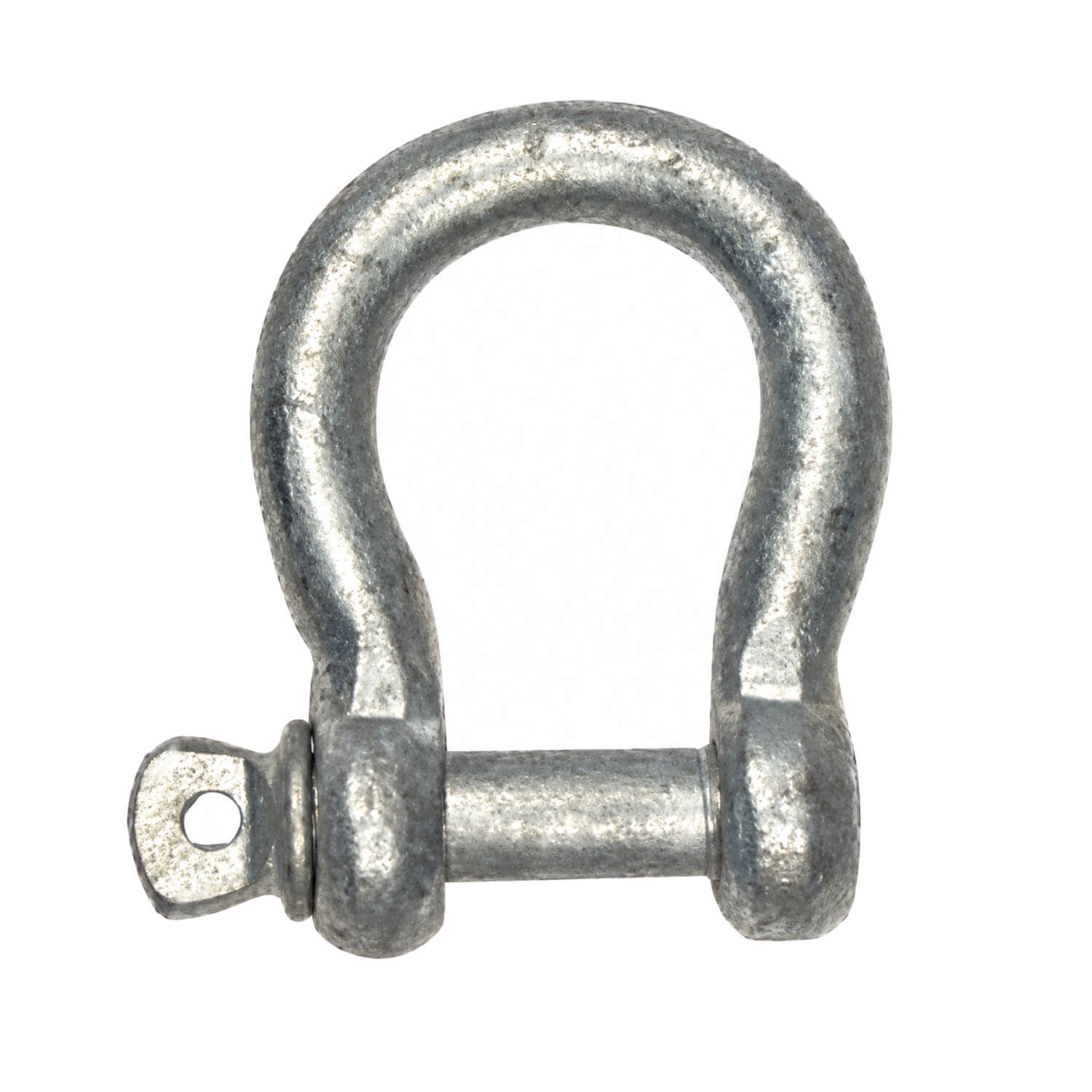

Galvanised Bow Shackle - Bulk - 13mm
This hot-dip galvanised bow shackle provides the connection shape and nominal diameter specified below. Choose the shape to match the available space and the components being joined.
Check the pin clearance and the complete connection before ordering. This range does not specify a working load limit for the product; do not transfer the ratings of the separate yellow-pin rated-shackle range to it.
Choosing and using this product
Plan access for assembly, adjustment and routine inspection. The connection should be arranged so adjoining parts do not prevent its intended movement or closure. Once assembled, inspect the fitting and surrounding hardware together, especially where there has been wear, deformation or a difficult loading event.
Any stated breaking load describes a different condition from an allowable working load. Select the complete arrangement for its intended application using the appropriate equipment guidance. Do not derive a load rating for an unmarked component from its appearance or metal grade.
For workshop or refit orders, check the sales quantity as well as the size. A retail pack and a bulk listing may contain different numbers of the same style of fitting. Keep spare components labelled so pin sizes, thread forms and material grades remain easy to identify.
For this version, diameter (mm): 13mm. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Use the stated material and dimensions to compare this version with the part being replaced. Thread direction, closure style and the shape of the attachment points can matter as much as overall length. Check those details against the actual assembly rather than a photograph alone.
Look at both sides of the proposed connection before choosing a rigging fitting. The opening, pin or thread must suit the adjoining components, while the body needs sufficient clearance to sit as intended. A larger nominal size is not automatically the best fit for a confined connection.
Product details
- Product code: 610264
- Diameter (mm): 13mm
- Supply format: bulk
