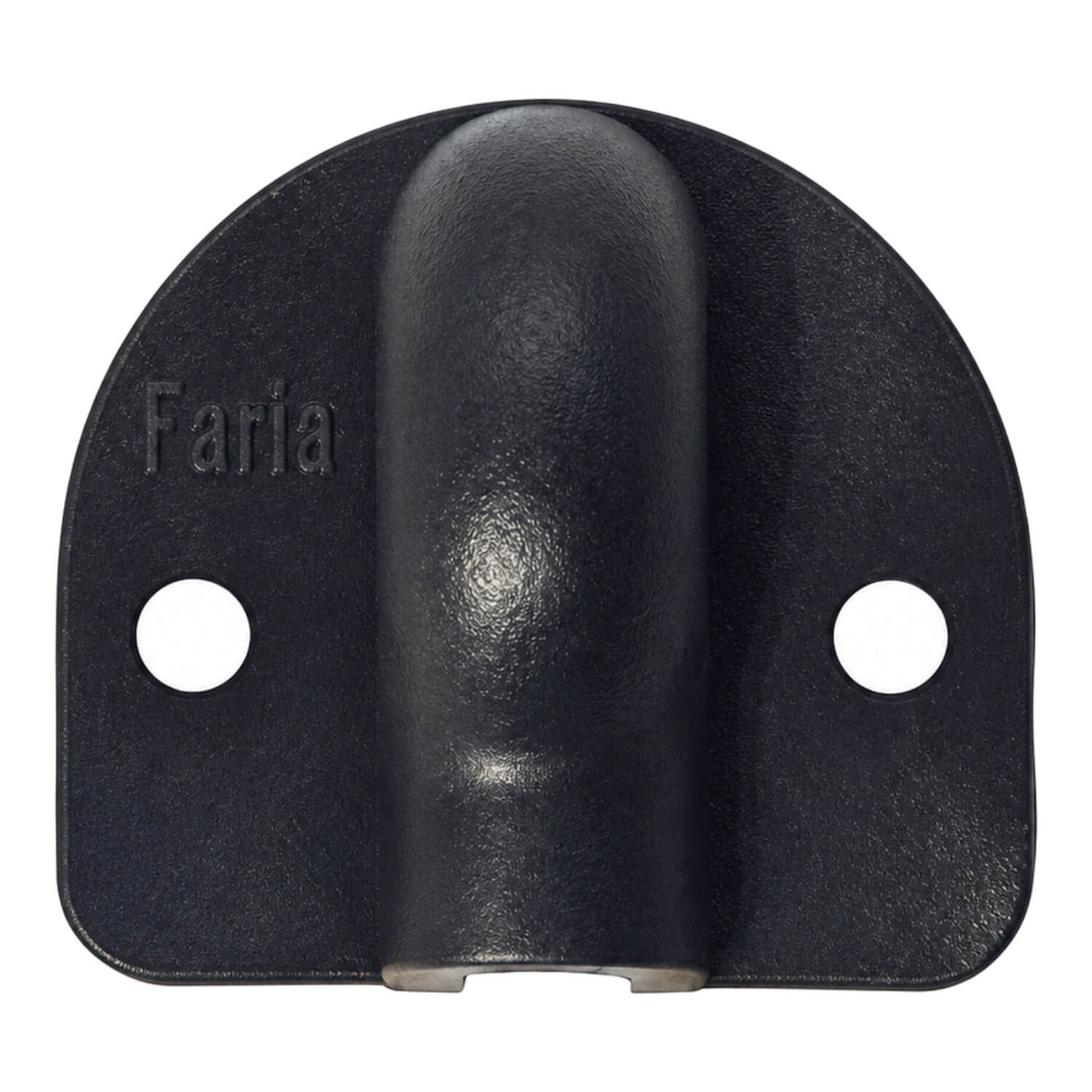

Escutcheon Cover Plate
Give a pitot-tubing entry a neat finish with this escutcheon cover plate. It accommodates tube or wire up to 6 mm outside diameter.
Measure the outside diameter of the tube or wire before ordering and check the available mounting space. This is a finishing plate for the entry area; it is not a pitot pickup or a length of tubing.
Choosing and using this product
Keep the gauge and sender model references together in the boat’s records. This helps avoid mismatching a later replacement with a different signalling range. Where the listing is an accessory or service part, confirm the parent instrument that it is intended to support.
When selecting a tank sender, confirm the tank depth and the sender specification required by the gauge. A sender’s physical length and its electrical output are different characteristics. Both must suit the intended installation.
Plan the installation using the instrument and sender instructions, including any calibration or setup required for the model. Keep the wiring identifiable and accessible for later inspection. Check the completed system with the associated equipment before relying on the display.
Match the instrument to the signal or sender used by the existing system. Dial appearance and mounting size are useful selection points, but electrical compatibility determines whether the reading will be meaningful. Compare the specified range, voltage and connection details before ordering.
Check the dashboard cut-out and the available depth behind it separately from the face diameter. Wiring connections and any retaining hardware need room as well. For a replacement, measure the actual opening rather than assuming instruments with similar faces use identical mounts.
Before placing the order, compare this product’s stated details with the part or installation in front of you. Keep any compatible model reference and the selected product code together. This gives you a clear reference for fitting enquiries and for matching a future replacement to the same arrangement.
Product details
- Product code: 204940
- Cover plate for pitot tubing. Suits up to 6mm OD tube or wire.
