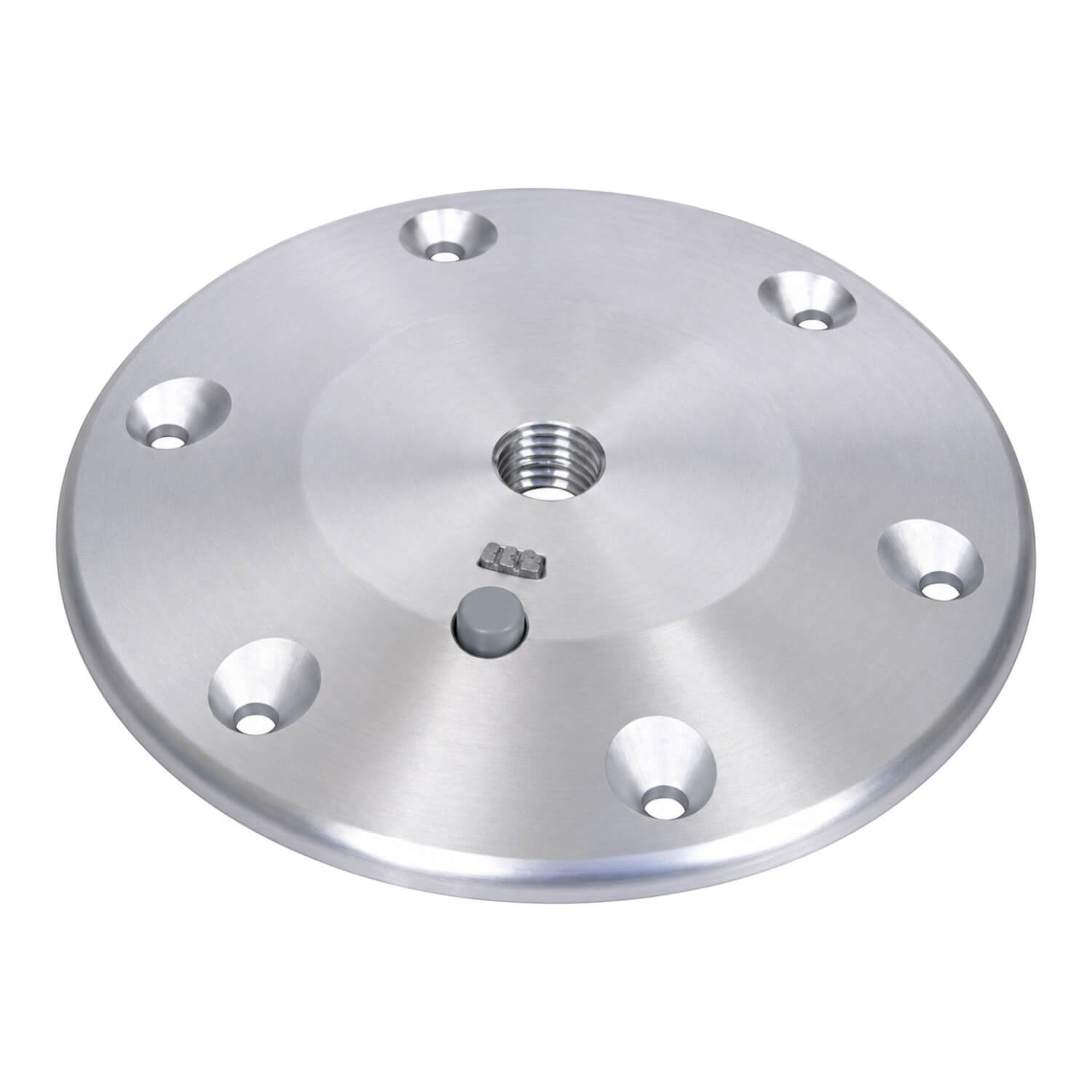

Eastsun Thread Lock Table Pedestal Base
Provide a compatible table position with the Eastsun Thread Lock base for pedestals 648811 and 648815. The bright anodised aluminium base uses a locking system and accepts the post through a threaded connection.
Use product code 648817 to identify this exact component when checking its fit with the existing assembly.
Its 180 mm outside diameter helps you assess the deck footprint. It mounts directly on the deck without a post hole, although the fixing arrangement still needs to be checked. Select this threaded base specifically for the matching pedestal system.
Choosing and using this product
Allow space for any swivel, slide or release movement and check access to the adjustment controls. Nearby lockers, steering controls and walkways can influence the most useful position. Offer the complete arrangement into place before making permanent changes.
Inspect the deck support and fastening arrangement as part of the installation planning. Follow the relevant product and boat instructions, then include the attachment points and locking mechanisms in routine checks. Retain the model reference when compatible spare components may be needed later.
Check whether the listing supplies a full pedestal set or one replacement component. A base, post and top fitting may have separate product codes. Comparing the inclusions prevents a part-only purchase from being mistaken for a complete support assembly.
Work out the finished seating or table height before selecting a support. The pedestal height is only one part of the assembly; the top fitting, slide, seat base or tabletop also contributes to the final position. Compare the available adjustment with the intended use.
Match the connection at each end independently. The deck base must suit the mounting location, while the top must accept the intended seat or table fitting. A common-looking post diameter does not establish compatibility between every removable or locking system.
Product details
- Marine-grade corrosion-resistant bright anodised aluminium base with locking system.
- Outside diameter 180mm.
- Mounts directly on deck without a post hole; table post threads directly into base.
- Replacement base for 648811 and 648815, or use for an extra table position.
