Eastsun Table Pedestal Base

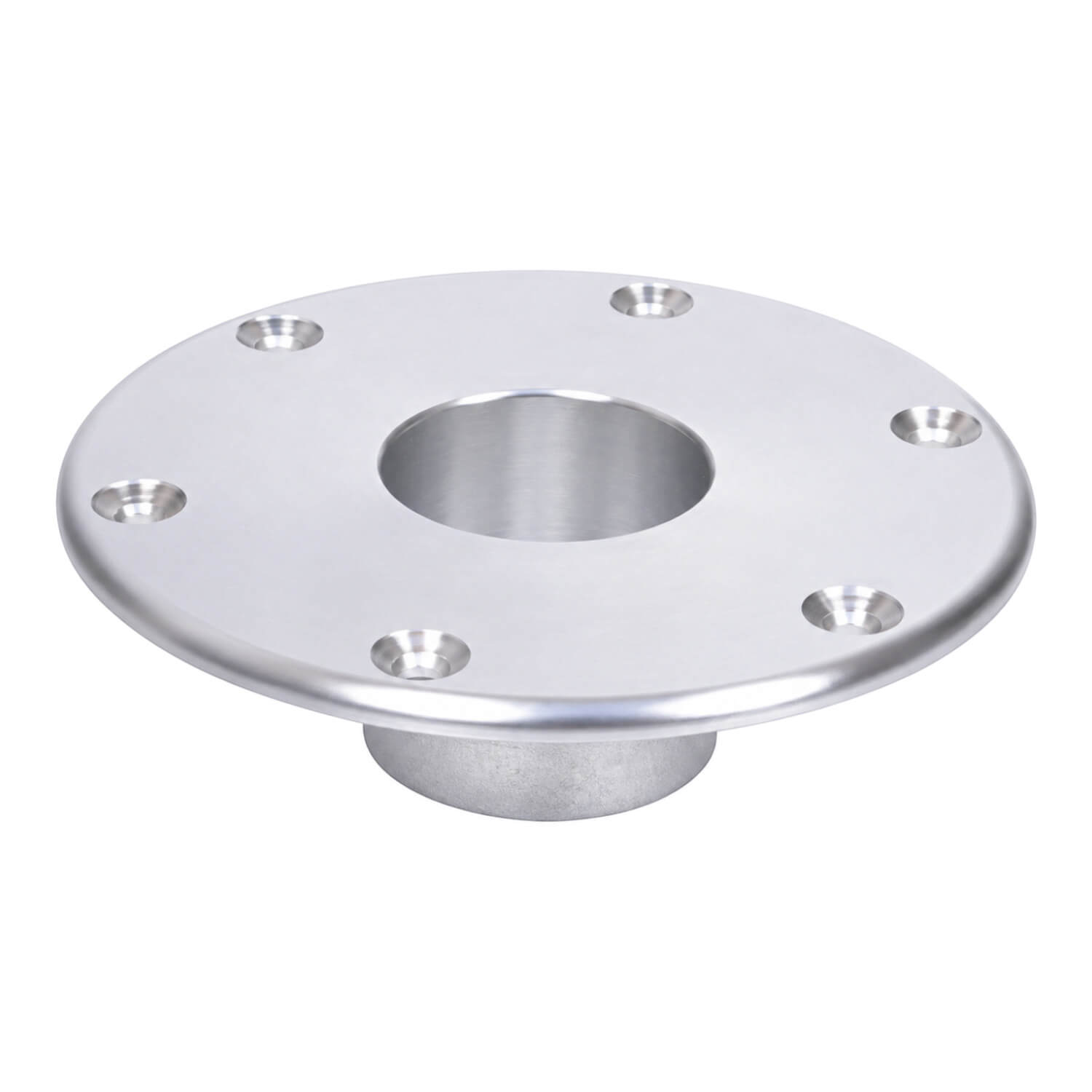

Use this Eastsun base to replace the base on table pedestal 648813 or provide another compatible table position. Marine-grade corrosion-resistant cast aluminium forms the 173 mm outside-diameter base.
Use product code 648818 to identify this exact component when checking its fit with the existing assembly.
The base protrudes 45 mm into the deck. Check that clearance beneath the proposed location and match the pedestal connection before installation. This is the base component, with the post and table selected separately.
Choosing and using this product
Allow space for any swivel, slide or release movement and check access to the adjustment controls. Nearby lockers, steering controls and walkways can influence the most useful position. Offer the complete arrangement into place before making permanent changes.
Inspect the deck support and fastening arrangement as part of the installation planning. Follow the relevant product and boat instructions, then include the attachment points and locking mechanisms in routine checks. Retain the model reference when compatible spare components may be needed later.
Match the connection at each end independently. The deck base must suit the mounting location, while the top must accept the intended seat or table fitting. A common-looking post diameter does not establish compatibility between every removable or locking system.
Check whether the listing supplies a full pedestal set or one replacement component. A base, post and top fitting may have separate product codes. Comparing the inclusions prevents a part-only purchase from being mistaken for a complete support assembly.
Work out the finished seating or table height before selecting a support. The pedestal height is only one part of the assembly; the top fitting, slide, seat base or tabletop also contributes to the final position. Compare the available adjustment with the intended use.
Product details
- Marine-grade corrosion-resistant cast aluminium base for replacement or an extra table position.
- Outside diameter 173mm.
- Protrudes 45mm into deck.
- Replacement base for 648813.
