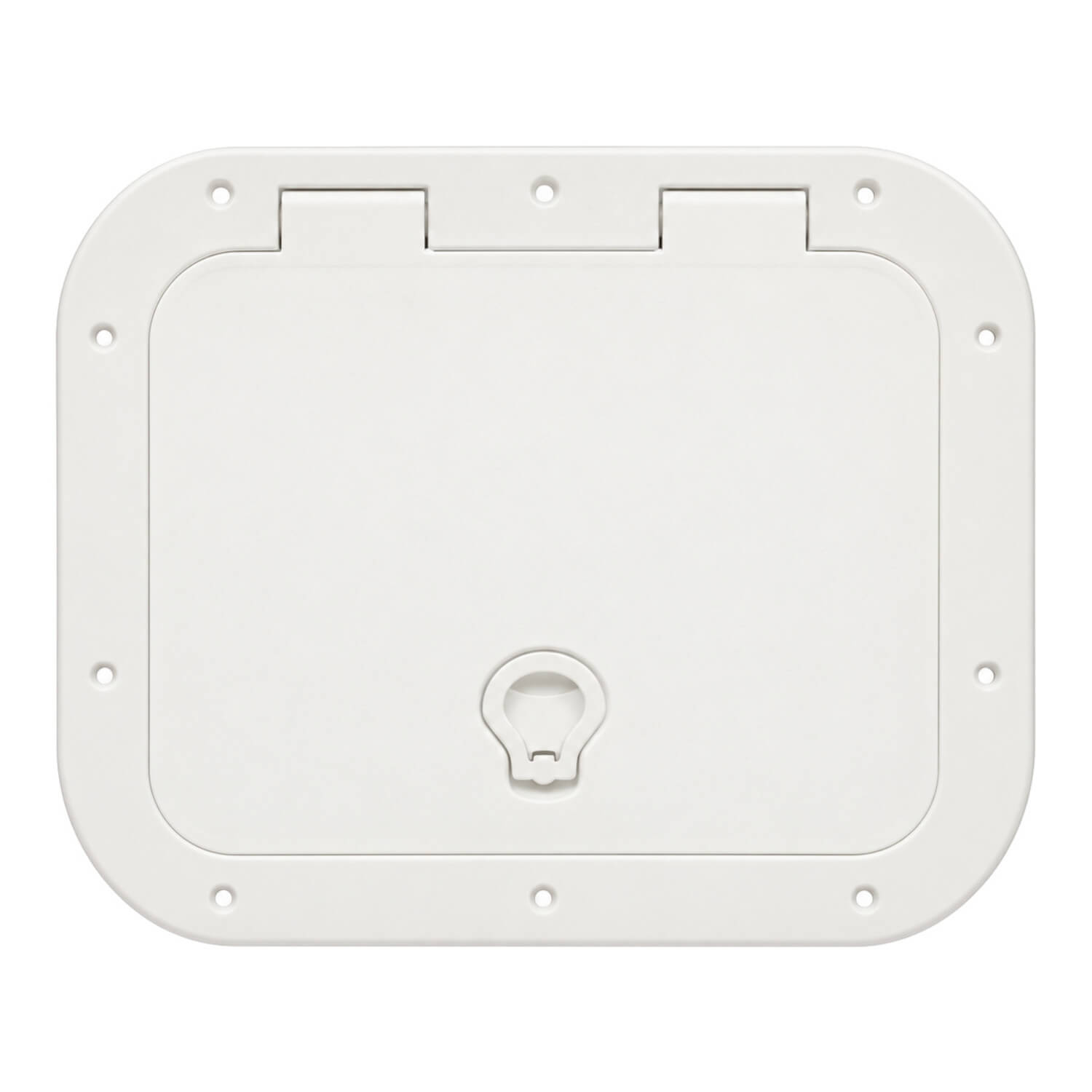

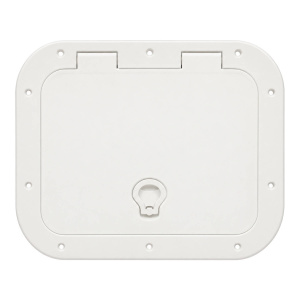

Easterner White Access Hatch Small 280 x 381mm
Fit a small white Easterner access hatch where you need a defined opening and a neat finished panel. This version measures 280 x 381mm outside, with 180 x 278mm inside dimensions and a 210 x 310mm cut-out.

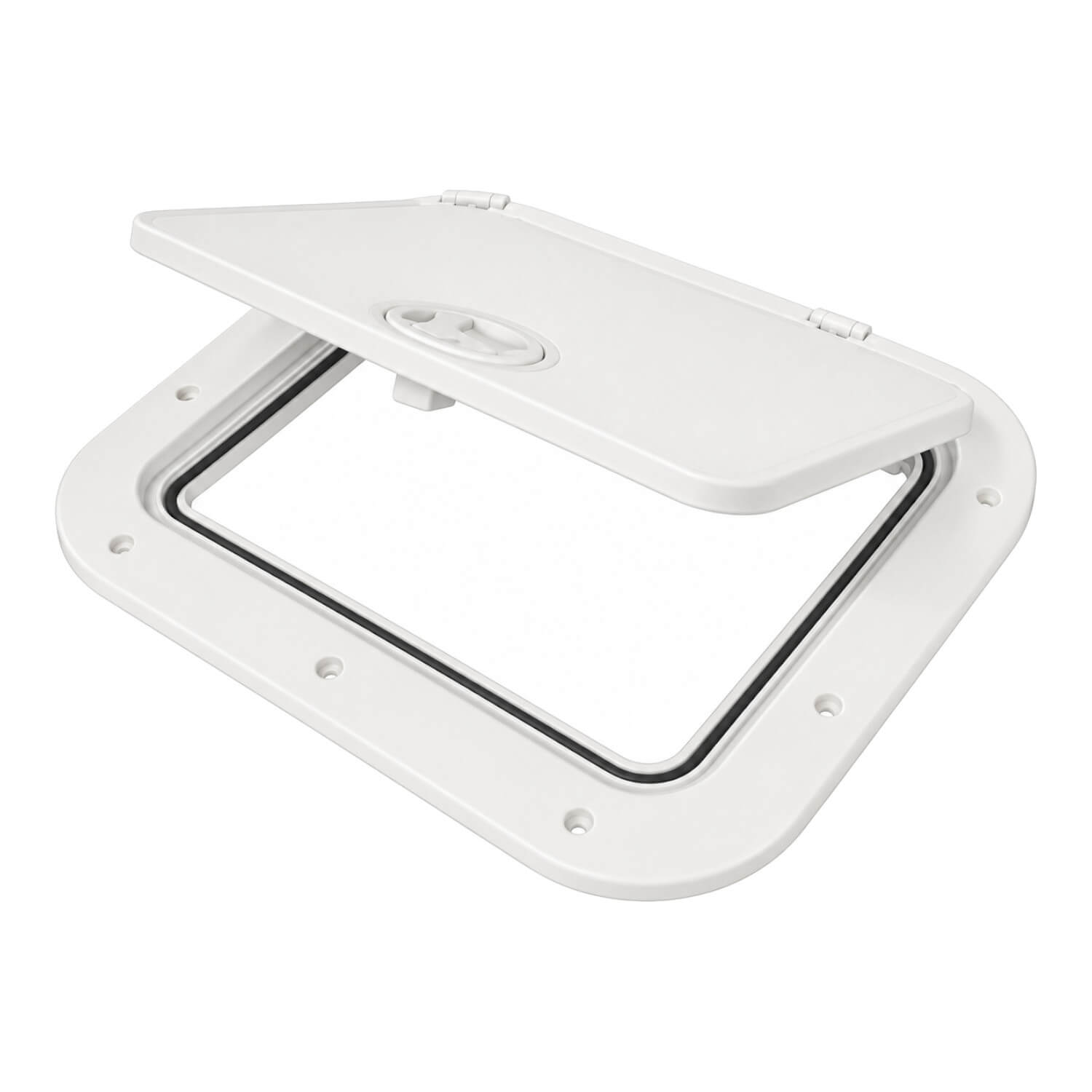

The UV-resistant ASA plastic body has a reinforced lid and a non-skid surface. A gasket provides a weather-tight seal, and the hatch can be mounted vertically or horizontally when the chosen location suits its intended use.
This hatch must not be installed where people will stand on it. Keep that restriction separate from its non-skid finish and the choice of mounting orientation: horizontal installation does not make the lid a walking surface.
The range is designed as a drop-in replacement for old-style SOPAC 3000 series hatches. Before replacing an older fitting, compare the exact dimensions of this size with the opening and frame already installed. The family compatibility is useful, but the size still needs to match.
For code 407350, use the 210 x 310mm cut-out dimensions when assessing the panel opening and the 280 x 381mm outer dimensions when checking flange coverage. The inside measurement describes the available internal opening and should be assessed against the access you need.
Allow the lid room to open and leave the operating point accessible around nearby fittings. When planning a replacement, inspect the supporting surface and existing fastening locations as well as the hole. The separate measurements help you make that comparison before cutting or drilling, so the selected hatch suits both the panel and the job.
Product details
- Durable UV resistant ASA plastic hatch with reinforced non-skid lid and gasket for a weather-tight seal.
- Can mount vertically or horizontally.
- Easy to install and a drop-in replacement for old SOPAC 3000 series hatches.
- Not suitable for mounting where people will stand on it.
- Outside dimensions: 280 x 381mm.
- Inside dimensions: 180 x 278mm.
- Cut-out size: 210 x 310mm.
- Product code: 407350
