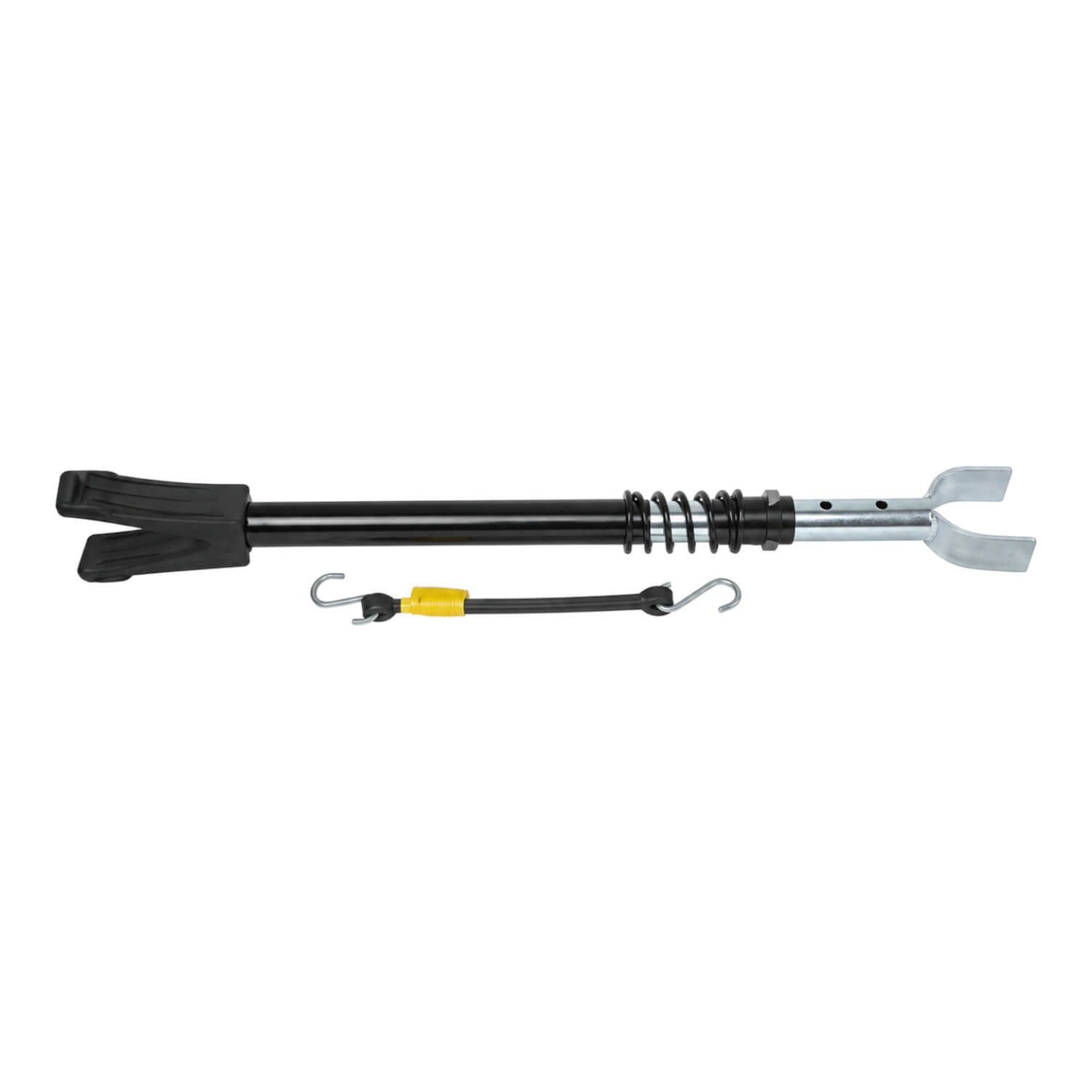

Deluxe Motor Support Bracket - Chassis Mount
Support the outboard motor leg during trailer travel with this deluxe motor support bracket. Its 510–770 mm adjustment range allows the support length to be matched to a suitable boat-and-trailer arrangement, with the mounting method checked before fitting.
The padded V-shaped end supports the motor leg, while the spring coil provides the stated shock-absorbing feature. Heavy-gauge plated steel tubing forms the support, with an EDC finish intended to resist rust. The supplied rubber strap is part of the securing arrangement and should be used in accordance with the fitting instructions.
This chassis-mount version uses a U-shaped end that hooks over the trailer chassis. Check that the chassis profile and intended contact point suit that arrangement, and that the support can reach the motor leg within its adjustment range.
The 150 hp limit and the physical fit are separate checks. Confirm the engine’s trailering requirements as well as the support’s attachment points, then measure the required reach with the boat correctly positioned on its trailer. The stated horsepower limit should not be converted into an assumed motor-weight rating.
Before each trip, check the support, padding, strap and mounting area for condition and correct engagement. Follow the boat, engine and trailer instructions for the complete towing setup. This product supports the motor leg during travel; it is not an engine lifting device or a replacement for the required boat tie-downs.
Choose code 268490 when the 510–770 mm reach and hook-over chassis connection match the setup you have measured. Keeping those two selection details together helps distinguish this version from otherwise similar motor supports.
Product details
- Product code: 268490
- Adjustable length: 510–770 mm
- Purpose: motor-leg support during towing
- For motors up to 150 hp
- Heavy-gauge plated steel tubing
- EDC finish for rust resistance
- Shock-absorbing spring coil
- Padded V-shaped motor-leg support
- Rubber securing strap included
- U-shaped end hooks over the trailer chassis
