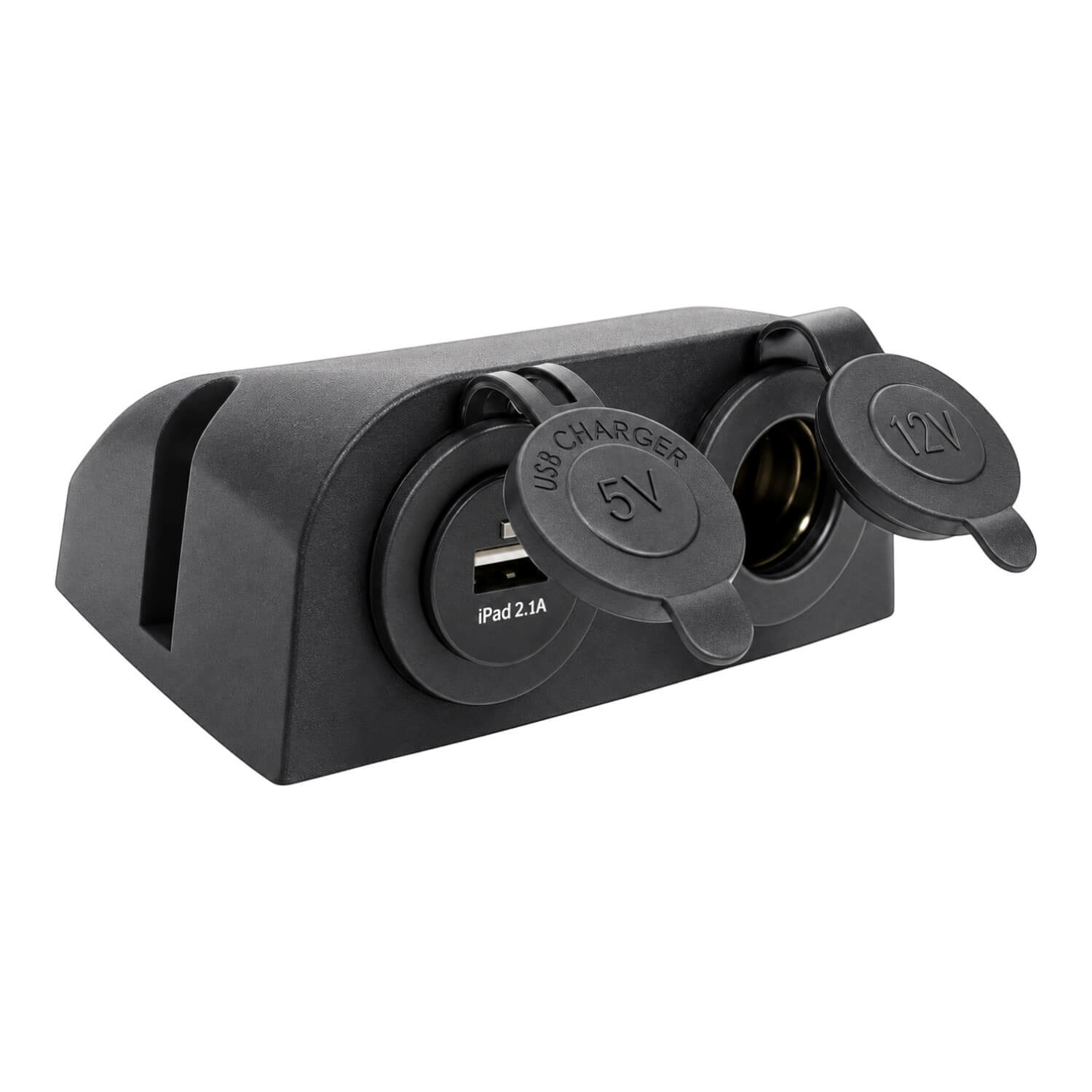

Curved Surface Mount Dual Power and USB Socket
Bring a power outlet and USB charging connection together with this curved surface-mount dual socket, part 220112. The combined body provides two different accessory connection types in one position.
The power outlet is rated at 20A for 12V/24V, while the USB section uses a 12V input to provide 5V output. Plan the supply to each section according to its own requirements.
Match the mounting position, connection leads and connected device requirements before fitting. The combined layout is useful where both power-socket and USB access are needed at the same location.
Choosing and using this product
Check the sales format carefully when comparing a short repair quantity with a full roll. Work out the requirement for the complete job first, then allow for the terminations specified by the installation instructions. This reduces the chance of selecting an unsuitable length because two products share a similar name.
When choosing electrical cable, distinguish nominal cable size from conductor cross-sectional area. Match the circuit requirements using the actual cable specification and equipment guidance. Core count and colour also matter when replacing an existing run or keeping several circuits identifiable.
For sleeving, conduit or heatshrink, compare the usable internal space with the bundle or connection being covered. Where a shrink ratio is stated, consider both the starting and recovered dimensions. A sleeve that fits the cable alone may not pass over an assembled connector.
Plan routing and support before cutting material to length. Keep the installation accessible where practical, and use connections and protection appropriate to the equipment. Label remaining stock with its size and specification so it can be distinguished from similar-looking materials.
Measure the complete route before deciding how much cable or protective sleeving to order. Include the path around fittings and the access needed at terminations. The supplied roll or cut length is the purchase quantity; it is separate from the electrical or mechanical size of the product.
Product details
- Product: Curved Surface Mount Dual Power and USB Socket
- Product code: 220112
- Curved surface-mount dual power and USB socket
- Power outlet: 20A, 12V/24V
- USB conversion: 12V input to 5V output
