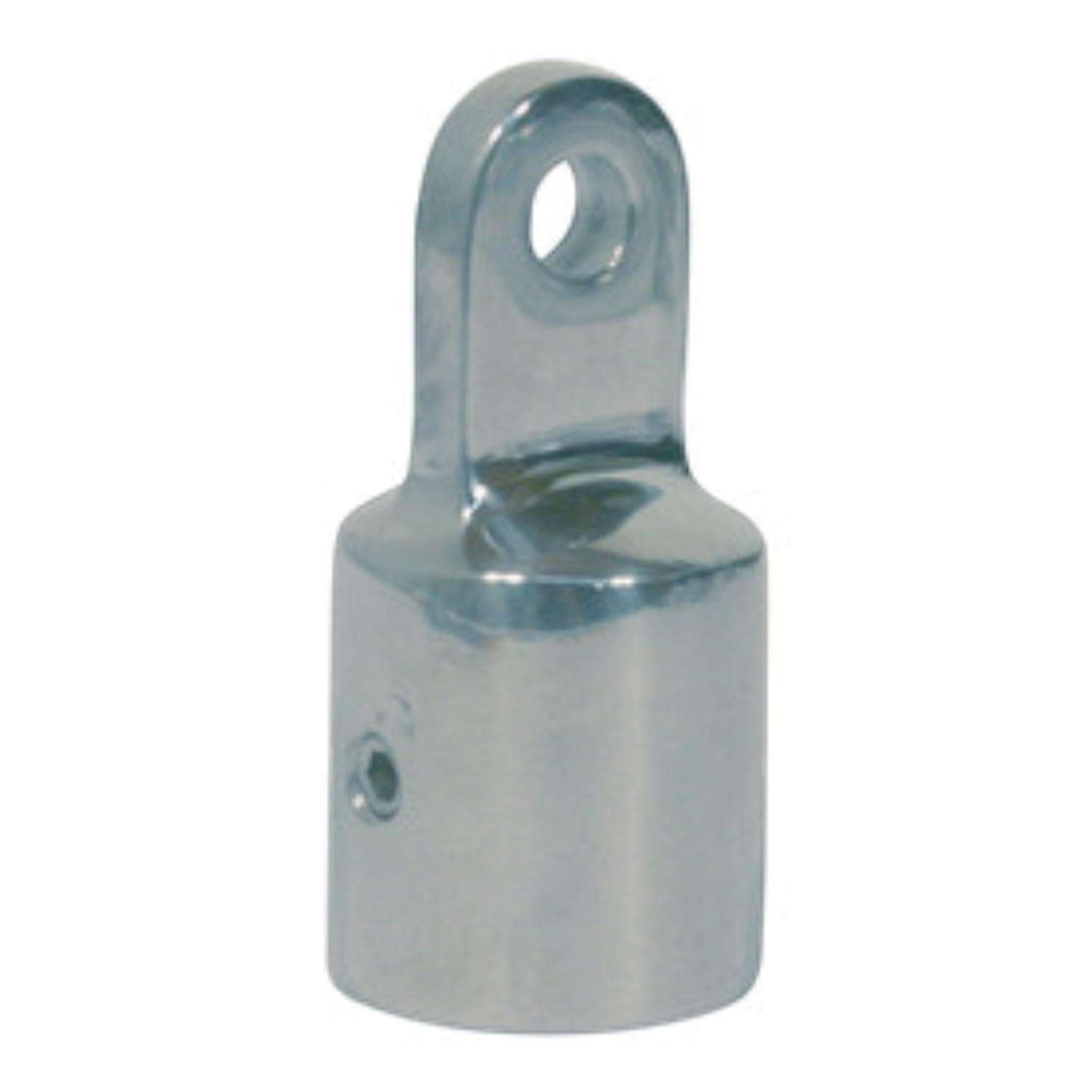

Cast Stainless Steel Tube End 25mm OD
Finish a compatible 25mm canopy tube with the cast stainless steel tube end 171680. This external tube-end style is an option when replacing matching stainless canopy hardware.
Check the tube outside diameter and the end connection before selecting it. The 25mm OD specification applies to the tube, so compare the existing assembly carefully rather than choosing an internal tube-end fitting by the same nominal size.
Choosing and using this product
Keep spare fittings labelled with the size and type used on the boat. Similar-looking snaps, sockets and tube fittings may have different connections. Recording the product code makes subsequent cover repairs and matching purchases easier.
For a replacement, compare the original part and the way the cover or frame moves around it. Clearance for folding, release and tensioning matters as well as the fixed dimensions. Offer the part into position before marking a new mounting point.
Count the required fittings and compare the pack quantity before ordering. A single replacement, a packaged pair and bulk supply can represent different quantities under similar descriptions. Check whether screws, pins or mating components are included.
Where stainless steel is specified, match the stated grade and the adjoining materials when planning the installation. The grade identifies the material selection; it does not by itself establish a load capacity or make every fastening arrangement suitable. Check the complete assembly and its intended application together.
Follow the canopy or fitting instructions for attachment and adjustment. Keep moving parts accessible and check that the fabric is not being forced to compensate for an incorrectly positioned fitting. Inspect the surrounding material and existing mounting points during the repair.
For this version, material: cast stainless steel. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Product details
- Product code: 171680.
- Type: canopy tube end.
- Material: cast stainless steel.
- Suits 25mm OD tube.
