Cast Stainless Steel Internal Tube End 25mm OD

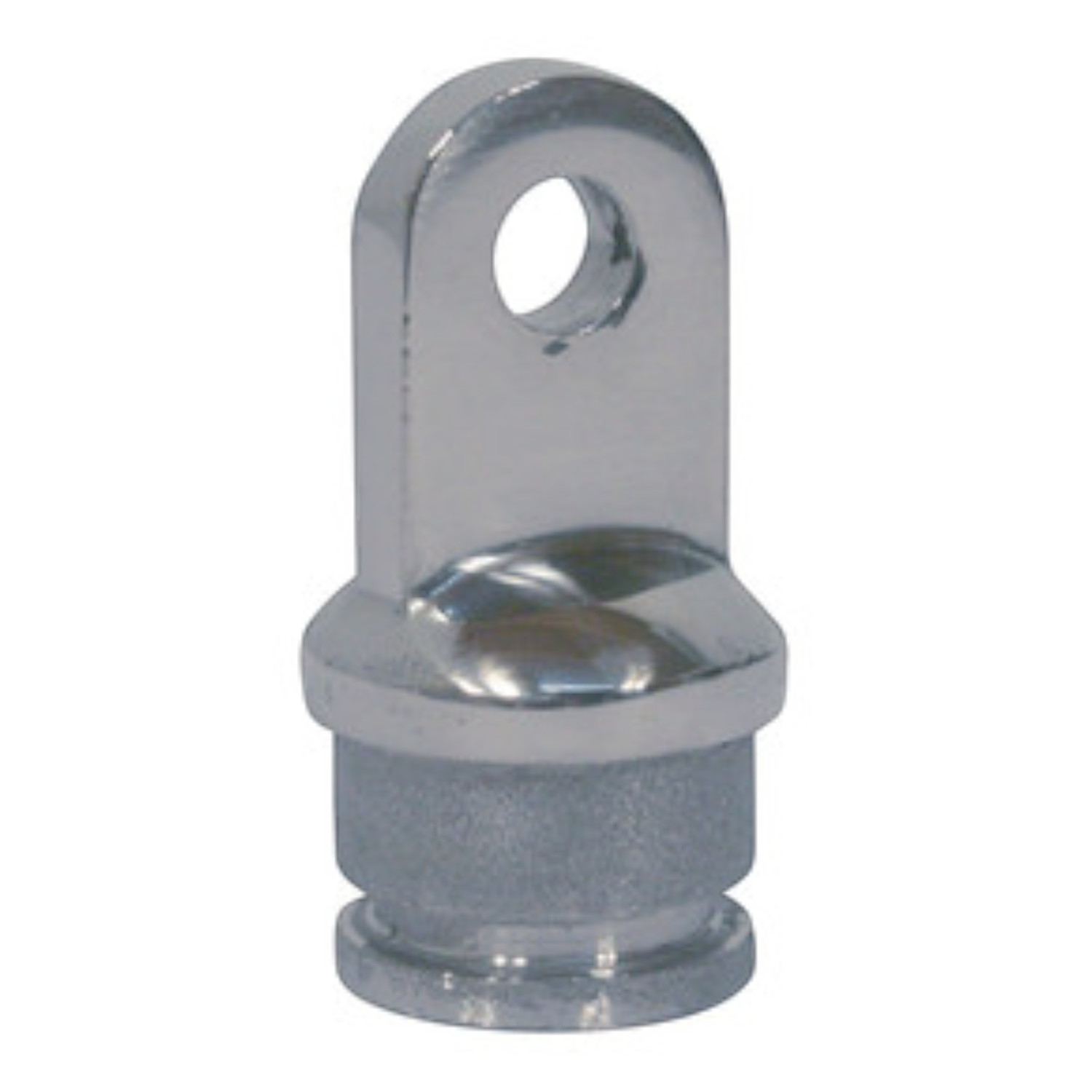

The cast stainless steel internal tube end 171674 is intended for a matching canopy-frame tube with a nominal 25mm outside diameter. Its internal fitting style makes the tube’s inside dimensions important when assessing replacement fit.
Compare the existing fitting and tube bore before ordering. Confirm the required internal diameter and wall thickness for this particular part before fitting it; the nominal outside diameter alone does not establish compatibility.
Choosing and using this product
Keep spare fittings labelled with the size and type used on the boat. Similar-looking snaps, sockets and tube fittings may have different connections. Recording the product code makes subsequent cover repairs and matching purchases easier.
Follow the canopy or fitting instructions for attachment and adjustment. Keep moving parts accessible and check that the fabric is not being forced to compensate for an incorrectly positioned fitting. Inspect the surrounding material and existing mounting points during the repair.
Match the fitting to the canopy or cover arrangement already in place. Tube size, strap width, fastening style and the mounting position can each affect fit. Check the relevant measurement for this component rather than selecting by its colour or general shape.
For this version, material: cast stainless steel. Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Where stainless steel is specified, match the stated grade and the adjoining materials when planning the installation. The grade identifies the material selection; it does not by itself establish a load capacity or make every fastening arrangement suitable. Check the complete assembly and its intended application together.
Product details
- Product code: 171674.
- Type: internal canopy tube end.
- Material: cast stainless steel.
- Nominal tube outside diameter: 25mm.
- Internal diameter and wall-thickness compatibility require confirmation.
