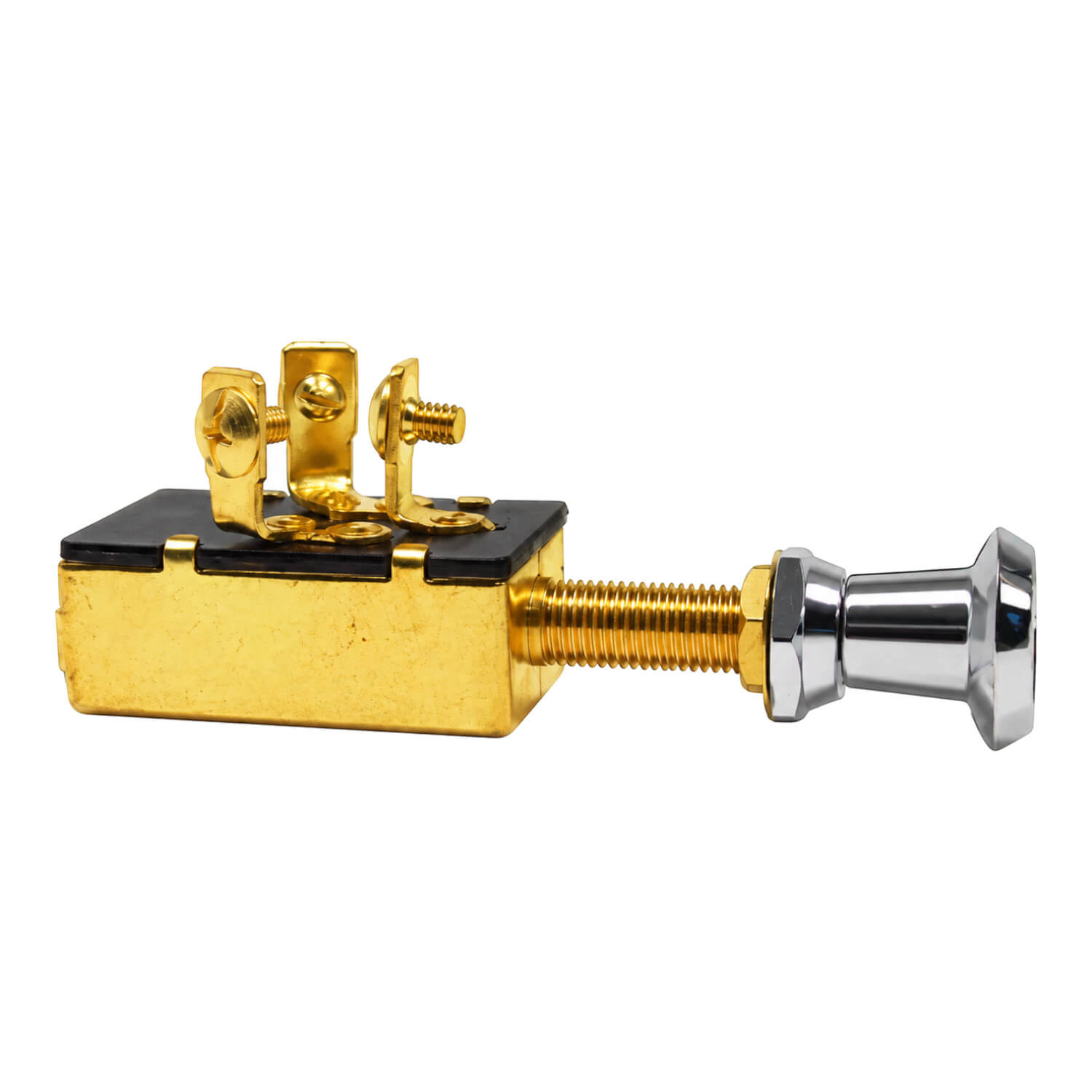

Brass 3 Position Switch
Choose staged push-pull control with brass switch 700175. Its three positions are off, on 1 and on all, providing a distinct action to match to an appropriate circuit arrangement. A chrome-plated knob finishes the brass switch unit.
Choosing and using this product
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Plan the component together with the circuit wiring and protection. Follow the equipment instructions for the required connections and ratings, and keep the installation accessible for inspection. A component rating should not be treated as the rating of the entire assembled circuit.
Choose the component for the actual circuit and power supply. Compare the stated voltage, current rating and switching or connection function with the equipment it will serve. A similar faceplate or connector shape does not establish the same electrical specification.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Before placing the order, compare this product’s stated details with the part or installation in front of you. Keep any compatible model reference and the selected product code together. This gives you a clear reference for fitting enquiries and for matching a future replacement to the same arrangement.
Product details
- Product: Brass 3 Position Switch
- Product code: 700175
- Brass push-pull switch, three positions: off, on 1, on all
- Chrome-plated knob
