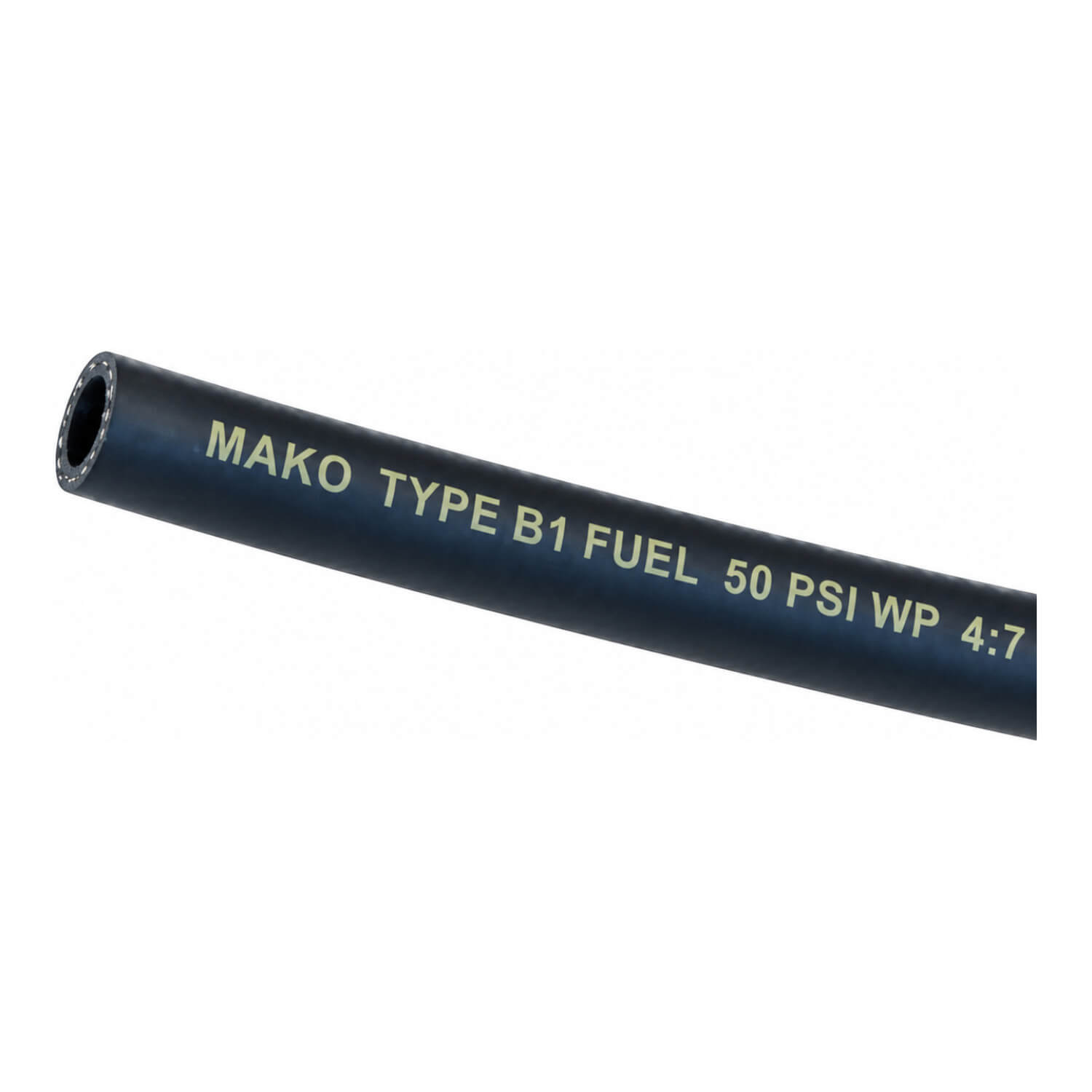

B1 Marine Fuel Hose - 1/2” (12mm) - 30m Length
Choose this 1/2” (12mm) hose for exposed fuel connections between rigid lines and the engine. Product 387784 is supplied as 30m Length, so match both the connection size and the supplied quantity to the planned run.
The B1 hose is intended for an open environment on pleasure craft. It is suitable for marine diesel and petrol blends containing up to 15% ethanol, methanol or ethers, within the stated application.
A fire-resistant cover surrounds synthetic-braid reinforcement and a black nitrile tube. The operating temperature range is -20°C to 70°C.
This hose is not suitable for below-floor installation. Check that restriction before selecting it for a fuel line; a flexible connection in an exposed location is a different duty from permanent hose below the floor.
Measure the required route before choosing the quantity, allowing for the connections at each end. Use the hose’s stated application and limits as well as its diameter when matching it to the system.
Choosing and using this product
Retain the part code and any compatible equipment references with the boat’s maintenance records. That makes later filter or hose replacements easier to identify. When several engines or tanks are involved, label spare parts so different connector styles are not confused.
For a tank, check the available space and access for filling, removal and hose routing. For a filter or replacement element, identify the existing assembly and its service requirements. A replacement element is different from a complete filter head and bowl.
For this version, size: 1/2” (12mm). Use that specific detail when comparing the item with your existing equipment or planned installation. Other sizes and configurations in the range should be checked separately rather than treated as equivalent.
Product details
- Size: 1/2” (12mm)
- Supply length: 30m Length
- Type: B1
- Tube: black nitrile
- Reinforcement: synthetic braid
- Cover: fire-resistant
- Temperature: -20°C to 70°C
- Blend limit: up to 15% ethanol, methanol or ethers
- Not for below-floor installation
- Product code: 387784
