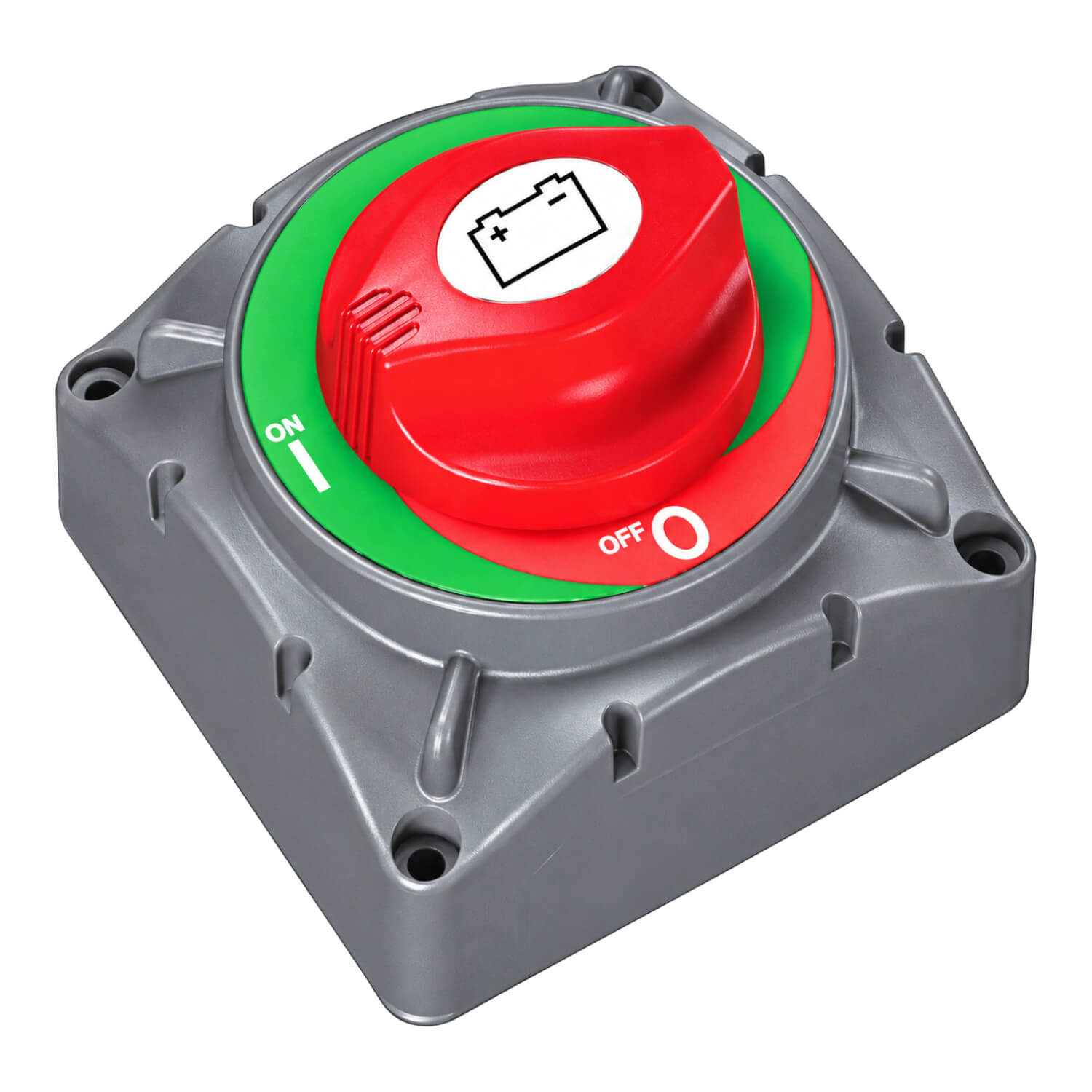

B-P MARINE Heavy Duty Battery Isolator Switch
Control your boat’s battery connection with B-P Marine part 700080, an on/off battery isolator for a compatible DC installation.
The on/off function provides a dedicated means of connecting or isolating the battery circuit. Choose the switch by the actual continuous load and any short-duration demand, using the separate ratings below.
Check the stated body dimensions and terminal access against the proposed mounting location. Allow enough room for the connected battery cables and for normal operation of the switch.
Continuous, intermittent and cranking figures describe different operating conditions. Keep any stated time limits and voltage conditions with their corresponding ratings when comparing switches; the highest number does not describe the allowable continuous load.
Ignition protection is specified for this heavy-duty model. Match that product feature to the full installation requirements, including the wiring and mounting environment, when selecting equipment for the battery compartment.
Choosing and using this product
For a panel-mounted item, check the cut-out and the clearance behind the panel as well as the visible dimensions. Terminals, cable bends and access for tools can require more room than the front of the component suggests. Confirm the mounting arrangement before altering the panel.
Check the exact supply format when ordering service parts. A replacement cover, boot, label, fuse or switch is distinct from a complete panel or assembly. Match the existing model and the stated part reference so that the item renews the intended component.
Keep circuit labels and the fitted product reference with the boat’s electrical records. This makes later fault-finding and replacement enquiries more straightforward. Before returning equipment to use, check the completed installation and its operation using the applicable instructions.
Product details
- Product: B-P MARINE Heavy Duty Battery Isolator Switch
- Product code: 700080
- On/off battery isolator
- Continuous: 600A DC
- intermittent: 800A DC
- cranking: 2500A DC
- Voltage rating: 48V DC
- Dimensions: 102 x 102 x 90mm high
- Ignition protected
