AXIS HM58 Deluxe Flip Up Seat Shell and Hinge with Arms and Foam - No Upholstery
Start an upholstery project with the specified seat structure and foam. This component listing is intended for a seat that will be finished with upholstery, so select it by the exact model and included parts.
The selected configuration for code 632289 is No Upholstery. Use that exact size or fitting when matching this component to the planned installation.
Use the listed model designation when arranging the upholstery and installation. A frame or shell with foam is a different purchase from a completed upholstered seat. Match any mounting hardware to the actual structure and confirm the requirements before work begins.
Supplied parts are limited to the frame or shell assembly described below. Upholstery is not included; arrange the finish to suit the actual foam and structure.
Choosing and using this product
Choose the seat around the helm or passenger position, not simply the available floor area. Compare the overall width, depth and height with nearby controls and walkways. Where a flip-up or folding section is provided, allow clearance for its full movement.
Think about access around the seat during ordinary use. The installation should leave controls reachable and allow the intended passage through the boat. Offer the seat and mounting components into position before committing to new holes or altering existing supports.
For upholstery or cushion purchases, measure the area being covered and identify whether this listing supplies a finished component or material for a separate upholstery job. Colour and finish matter, but the dimensions and construction determine how the replacement will fit.
Check the mounting arrangement separately from the upholstery dimensions. A seat, slide, swivel and pedestal can be sold as individual items, so compare the listed inclusions with the supporting hardware already aboard. The height of the complete assembly affects the finished seating position.
Product details

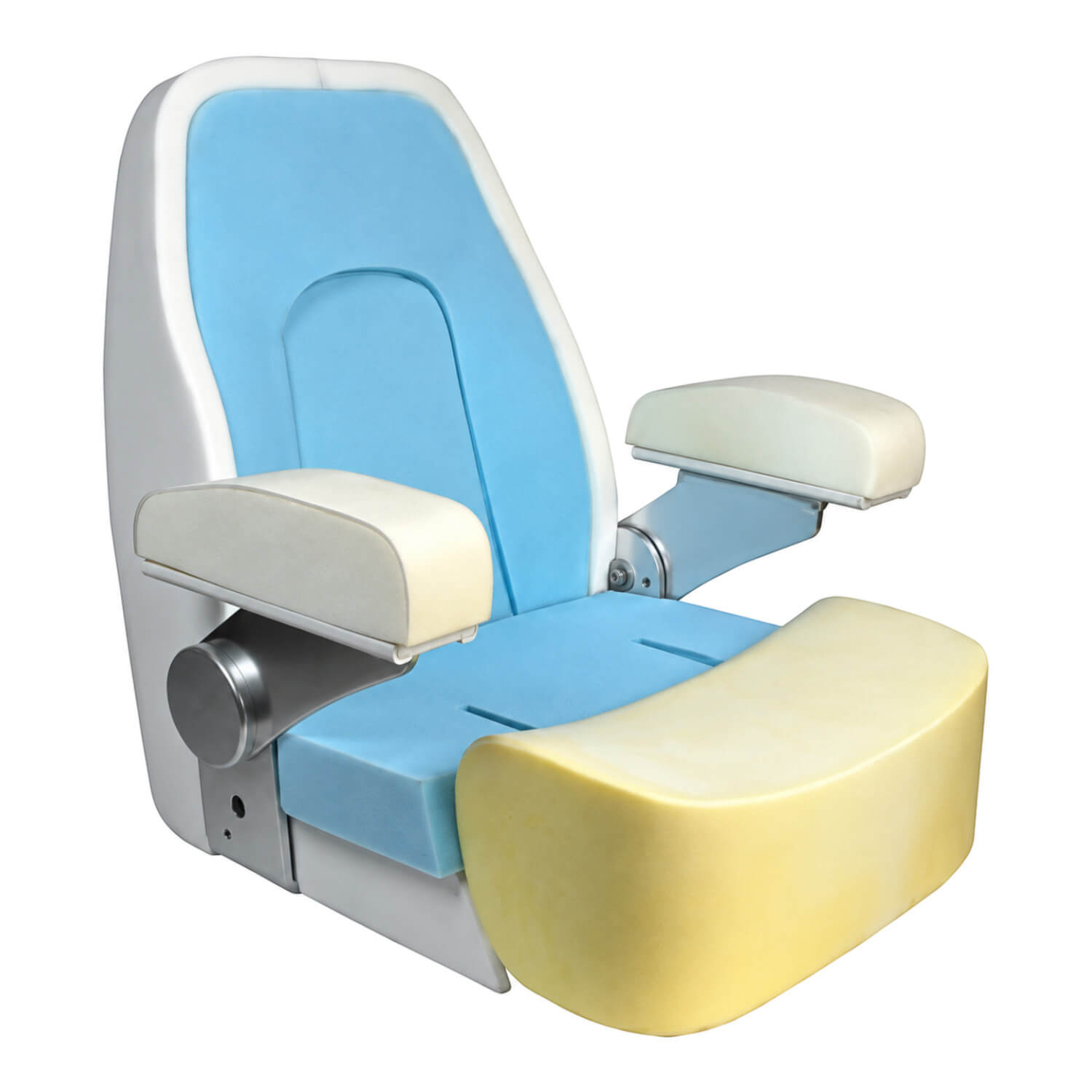

- HM58 seat shell, hinge and arms with foam; no upholstery.
- Slide mount only.
- Dimensions: width 582mm, inner width 440mm, depth 650mm, base depth 370mm, seat depth 460mm, height 620mm, back height 500mm; turning diameter 700mm.
