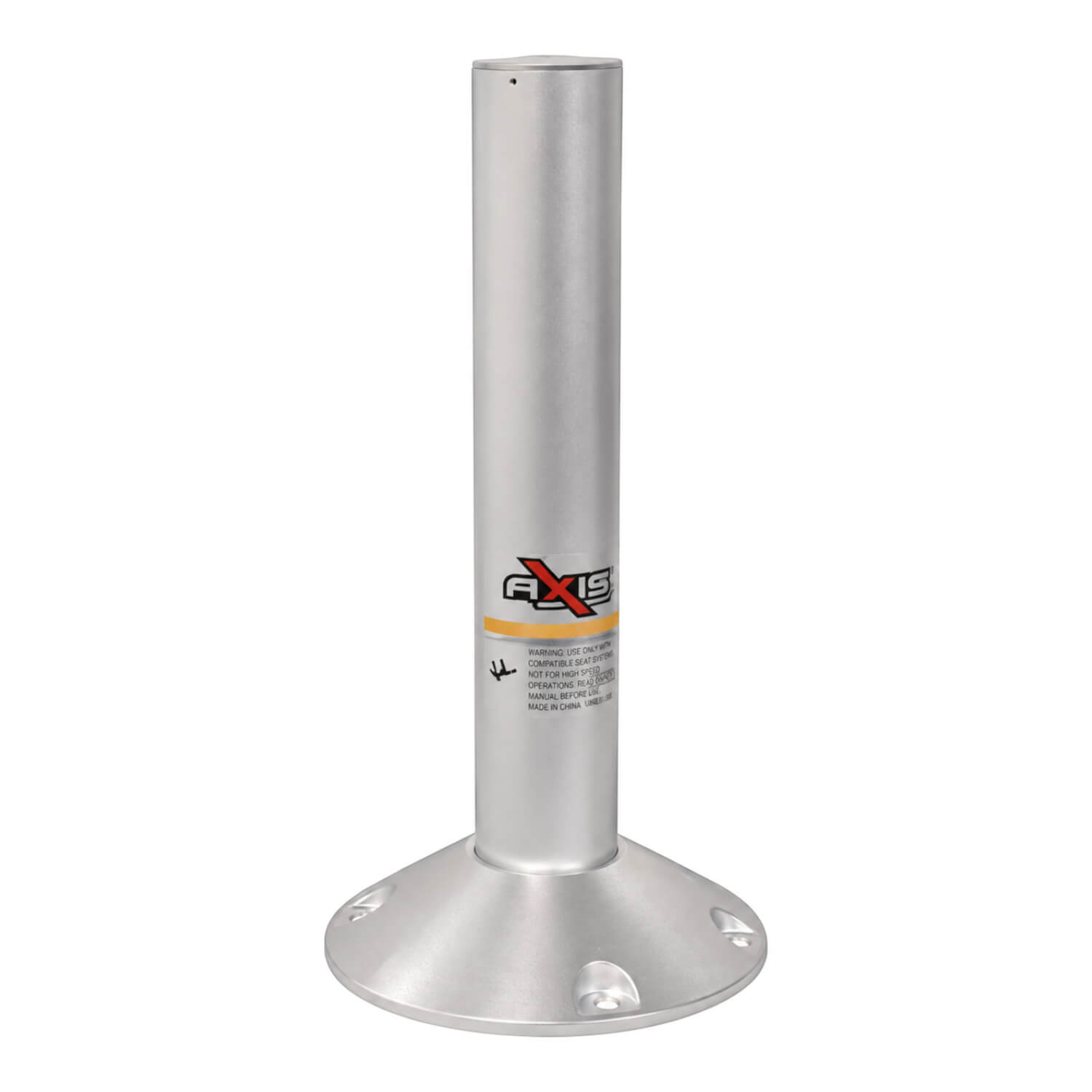

AXIS Seat Pedestal - No Top - 750mm
Build the seating position around the specified AXIS pedestal height and top configuration. An anodised aluminium post and base provide the pedestal structure, while the selected model determines whether a swivel, slide or separate top is required.
The selected configuration for code 648564 is No Top - 750mm. Use that exact size or fitting when matching this component to the planned installation.
Measure from the supporting surface and include the seat and any additional hardware when checking the finished seating height. The pedestal height is only one part of that complete installation. Compare the base footprint with the available mounting area and check the seat connection before fitting.
These AXIS pedestals are specified for recreational use. Keep the posts at their supplied length: the pressed ends form part of the intended fit, so cutting is not an appropriate way to change height. Select the correct fixed height or adjustment range instead.
This pedestal is supplied without a top. Select the specified compatible swivel or slide separately and check the resulting height before completing the seating assembly.
Choosing and using this product
Inspect the deck support and fastening arrangement as part of the installation planning. Follow the relevant product and boat instructions, then include the attachment points and locking mechanisms in routine checks. Retain the model reference when compatible spare components may be needed later.
Match the connection at each end independently. The deck base must suit the mounting location, while the top must accept the intended seat or table fitting. A common-looking post diameter does not establish compatibility between every removable or locking system.
Product details
- Anodised aluminium 2 7/8-inch post with 9-inch anodised aluminium base.
- Do not cut posts: ends are pressed for a tight fit.
- For recreational use only.
- For use with 648530 plastic swivel, 640004 cast aluminium swivel or 640922 seat slide.
- 750mm.
