Axis 5:1 Winch Gear and Handle Assembly
Select the ratio-matched gear and handle assembly for an Axis 5:1 winch with part 811286. It is intended for the specified 5:1 winch repair.
Identify the handle connection and gear arrangement on the existing unit before ordering. The separately listed 5:1 two-speed gear-and-shaft assembly is a different part type; the shared ratio number should not be used as the only selection criterion.
Choosing and using this product
Keep the drum, line attachment and moving mechanism accessible for regular inspection. Check the line and its end fitting together with the winch. Follow the specified care procedure for the mechanism and replace damaged components with correctly matched parts.
Check the package against the parts already on the trailer. Some winches arrive without a line, while others include wire cable, synthetic rope or a web strap. A handle, pawl or gear assembly renews a specific component and should be matched to the exact parent model.
Use the rating and operating instructions for this winch when assessing the complete loading arrangement. Winching capacity is a different specification from a lifting rating, and the condition and geometry of the trailer affect the task the winch must perform.
Record the model and supplied line configuration with the trailer details. When servicing an older installation, identify the actual gear or handle arrangement before buying a part that shares a similar general description.
Plan the winch around the pulling line and mounting position. Check that the handle has room through its operating arc and that the line can approach the drum in the intended way. Compare the mounting footprint with the existing winch post before selecting a replacement.
Before placing the order, compare this product’s stated details with the part or installation in front of you. Keep any compatible model reference and the selected product code together. This gives you a clear reference for fitting enquiries and for matching a future replacement to the same arrangement.
Product details

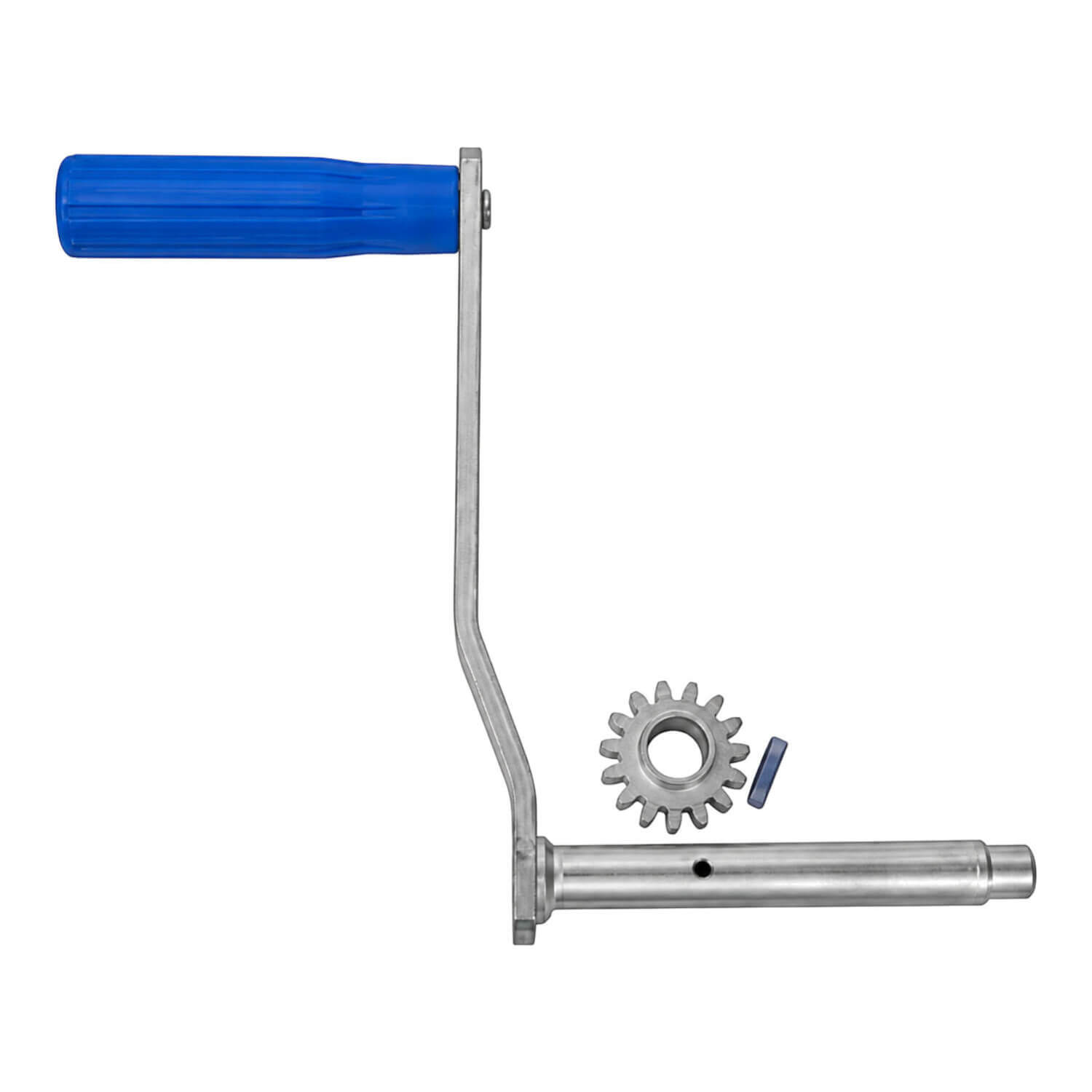

- Replacement gear and handle assembly for Axis 5:1 winches.
- Product code: 811286
